WIKA CPG1500 - Page 77

77WIKA operating instructions, model CPG1500
EN
14161966.06 03/2024 EN/DE

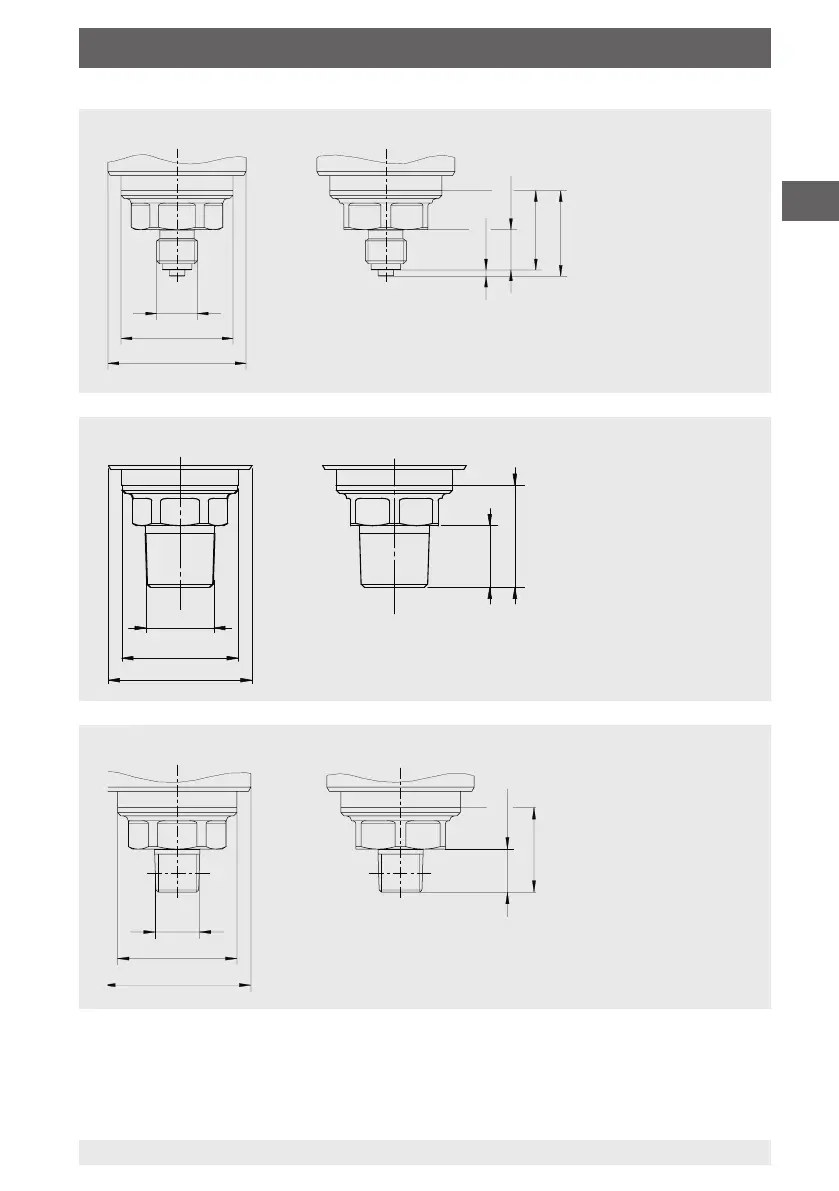

Process connection G ¼
Ø44,4 [1.75]
Ø36 [1.42]
G 1/4
2 [0.08]
13 [0.51]
25.5 [1.00]
27.5 [1.05]
Process connection ½ NPT
19 (0,75)
31,5 (1,24)
1/2 NPT
Ø 36 (1,42)
Ø 44,4 (1,75)
Process connection ¼ NPT
1/4 NPT
Ø44,4 [1.75]
Ø36 [1.42]
25,5 [1.00]
13 [0.51]
10. Specifications
