Pressure gauges with output signal, optionally for hazardous areas18
11297264.05 07/2019 EN/DE
EN
Safety instructions for installation
Install instruments in accordance with the manufacturer's instructions and the valid stand-
ards and regulations.
Only connect circuits with the same voltage and type of protection to the connecting
cables of the instrument.
Size the connecting cables for the largest current strength in the circuits and ensure
sucient UV resistance and mechanical stability.
With exible connecting cables, use isolated end splices. Max. permissible conductor
cross-section 1.5 mm².
Connecting cables must be suited to the ambient temperature range of the application.
The connecting cables must also be suitable for the supplied cable gland (for diameter
range, see below).
Seal the cable entry with the appropriate approved cable glands.
Install the connection cables securely.

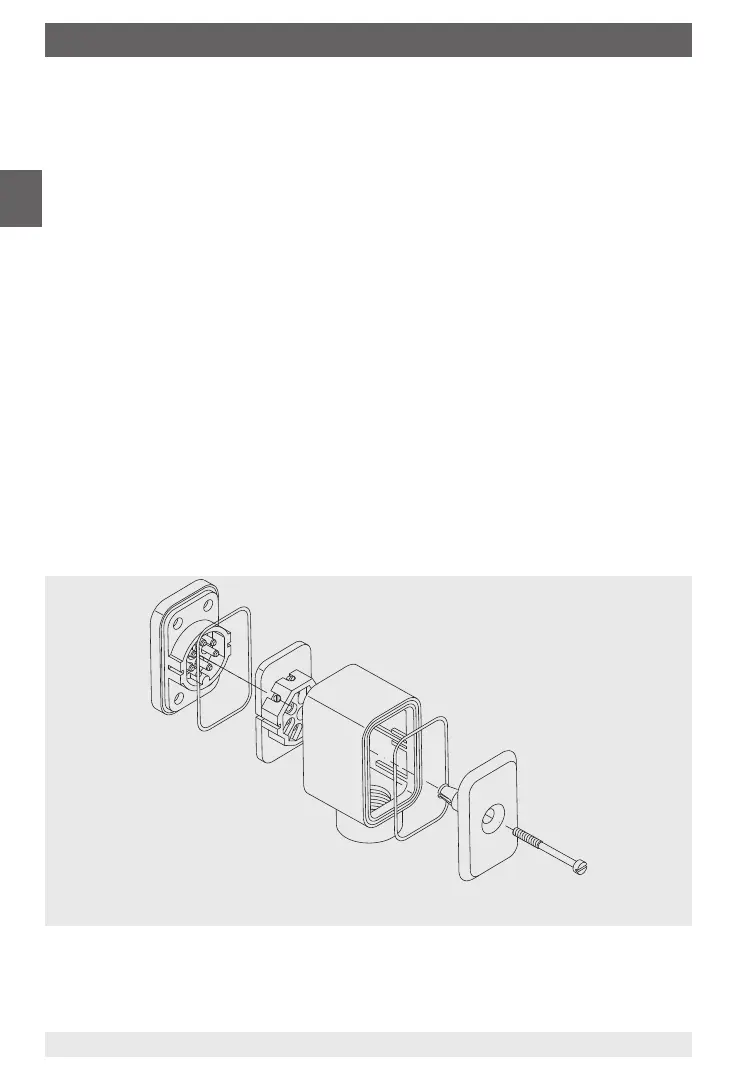

Dismounting cable socket
The cable socket is pretted and must be dismantled as described below.
Only use cable with a diameter of
7 ... 13 mm
Screw
Cable cover cap
Cable cover
Socket insert
Cable socket baseplate
Sealings
5. Commissioning, operation
