WIL-10410-E-05 9 WILDEN PUMP & ENGINEERING, LLC
NOTE: In the event of a power failure, the shut-off
valve should be closed, if the restarting of the pump is
not desirable once power is regained.
AIR-OPERATED PUMPS: To stop the pump from
operating in an emergency situation, simply close the
shut-off valve (user supplied) installed in the air supply
line. A properly functioning valve will stop the air supply
to the pump, therefore stopping output. This shut-off
valve should be located far enough away from the
pumping equipment such that it can be reached safely
in an emergency situation.
AIR SHUT-OFF VALVE
COMBINATION
FILTER & REGULATOR
SUCTION
MUFFLER
FLEXIBLE
CONNECTION
FLEXIBLE
CONNECTION
GAUGE
(OPTIONAL)
EQUALIZER
SURGE DAMPENER
(OPTIONAL)
SHUT-OFF
VALVE

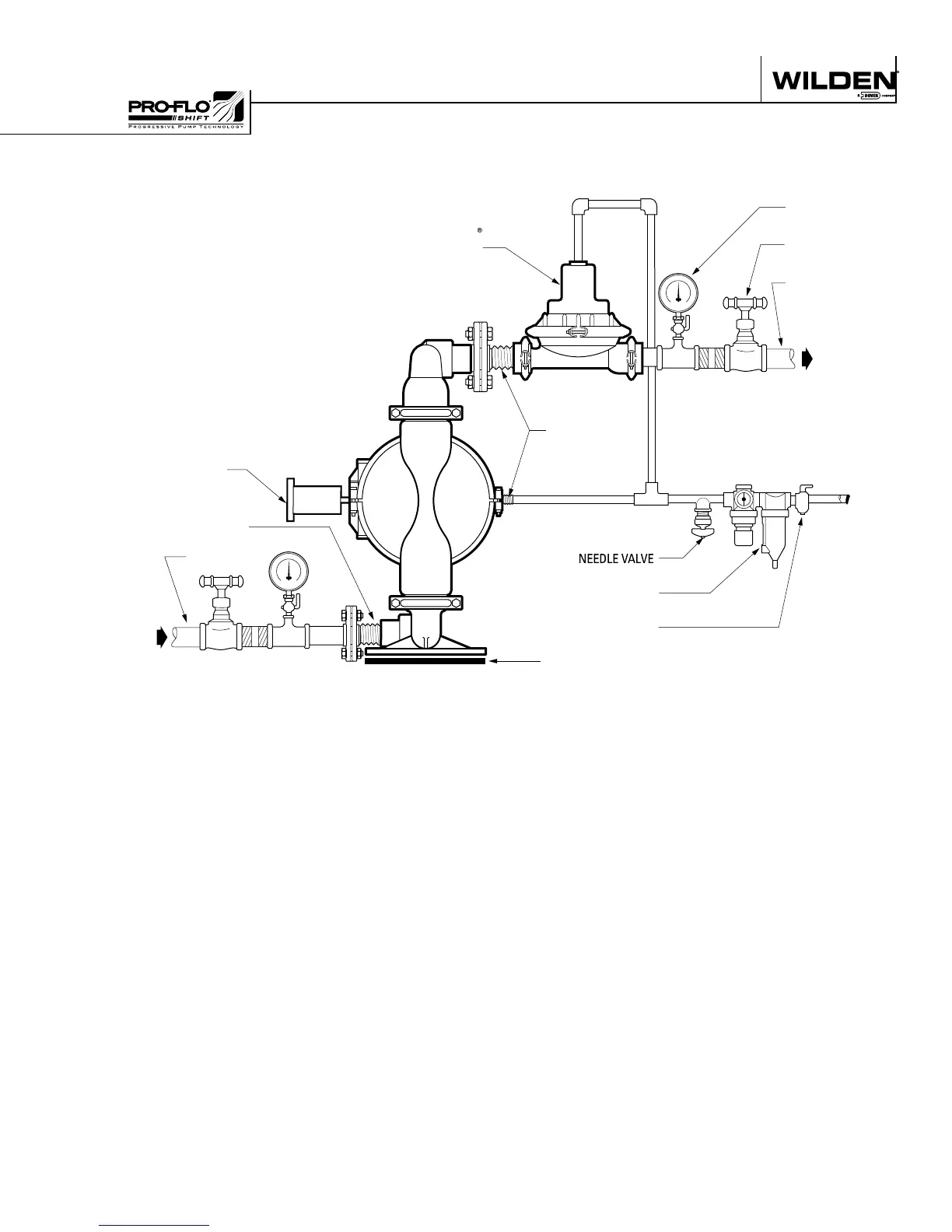

This illustration is a generic
representation of an air-operated
double-diaphragm pump.
SUGGESTED INSTALLATION
