Wilden PS8 - Section 4: Dimensional Drawings

WILDEN PUMP & ENGINEERING, LLC 4 WIL-10410-E-05

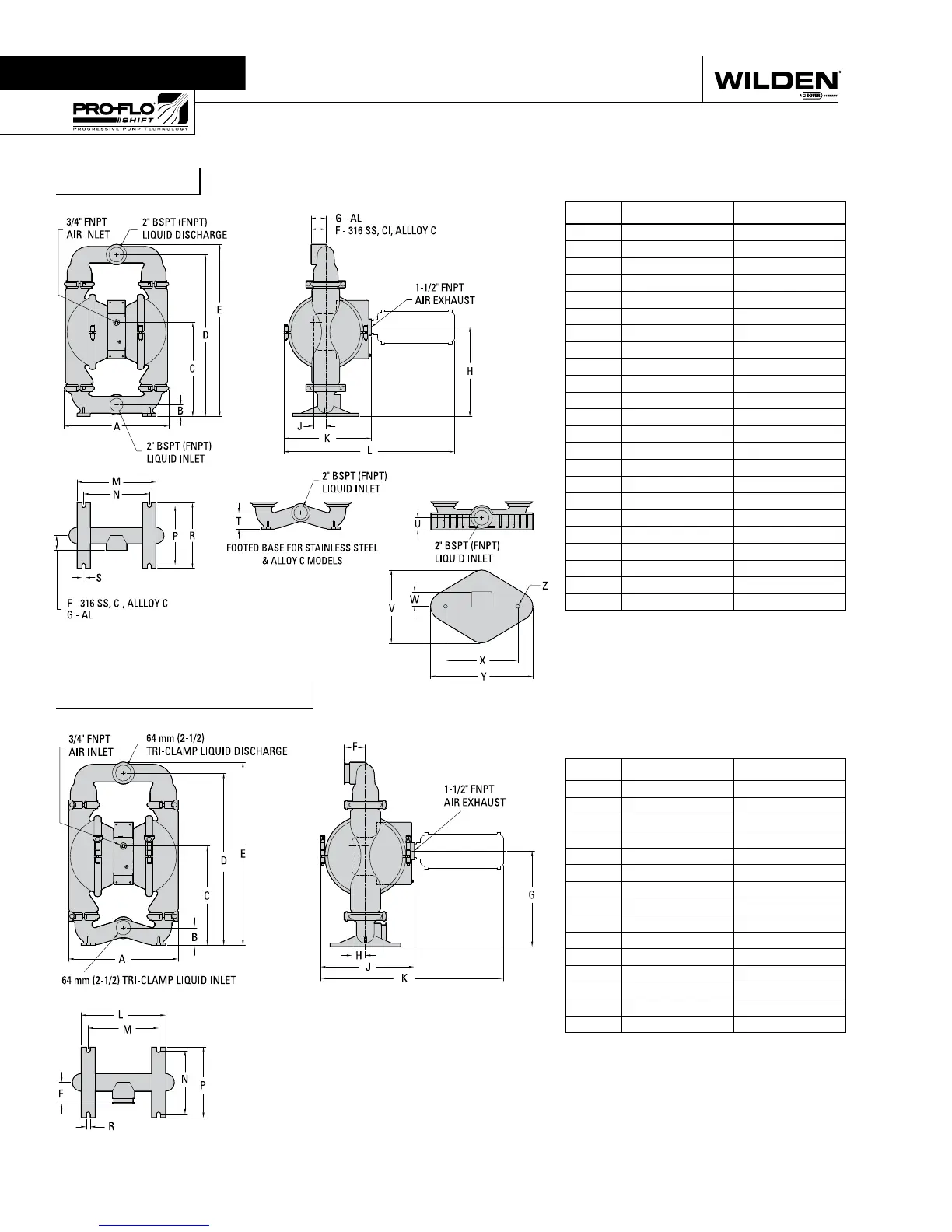

Section 4
DIMENSIONAL DRAWINGS
PS8 Metal
PS8 Metal Saniflo
TM
LW0022 REV. A
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 404 15.9
B 45 1.8
C 363 14.3
D 630 24.8
E 668 26.3
F 58 2.3
G 64 2.5
H 346 13.6
J 48 1.9
K 339 13.3
L 659 26
M 315 12.4
N 257 10.1
P 231 9.1
R 257 10.1
S 15 0.6
T 64 2.5
U 51 2.0
V 284 11.2
W 58 2.3
X 279 11
Y 396 15.6
Z 15 DIA. 0.6 DIA.
LW0023 REV. A
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 409 16.1
B 64 2.5
C 359 14.1
D 625 24.6
E 665 26.2
F 76 3.0
G 346 13.6
H 48 1.9
J 339 13.3
K 659 26
L 305 12
M 254 10
N 229 9.0
P 254 10
R 15 DIA. 0.6 DIA.
