Standard behaviour:
The display changes to menu mode. Menu number <2.0.0.0> is dis-
played (Fig. 31).
Service mode:
If service mode is activated via DIP switch 1 menu number <5.0.0.0>
is displayed first (Fig. 32).
Error case:
In case of error, menu number <6.0.0.0> is displayed (Fig. 33).
8.6.3 Navigation
• Change to menu mode (see chapter 8.6.2 “Changing to menu mode”
on page 83).
Carry out general menu navigation as follows (for an example, see
Fig. 34):
During navigation, the menu number flashes.
• To select the menu element, turn the red button.
The menu number is incremented up or down. The symbol associated
with the menu element and the setpoint or actual value are shown, if
applicable.
• If the downward pointing arrow for “One level down” is shown, press
the red button to change to the next level down. The new menu level
is labelled on the display by the menu number, e.g., when changing
from <4.4.0.0> to <4.4.1.0>.
The symbol for the menu element and/or the current value (setpoint,
actual value or selection) is shown.
• To return to the next higher menu level, select the “One level up”
menu element and press the red button.
The new menu level is labelled on the display by the menu number,
e.g., when changing from <4.4.1.0> to <4.4.0.0>.
NOTE:
If the red button is pressed for two seconds while a “One level up”
menu element is selected, the display jumps back to the status page.

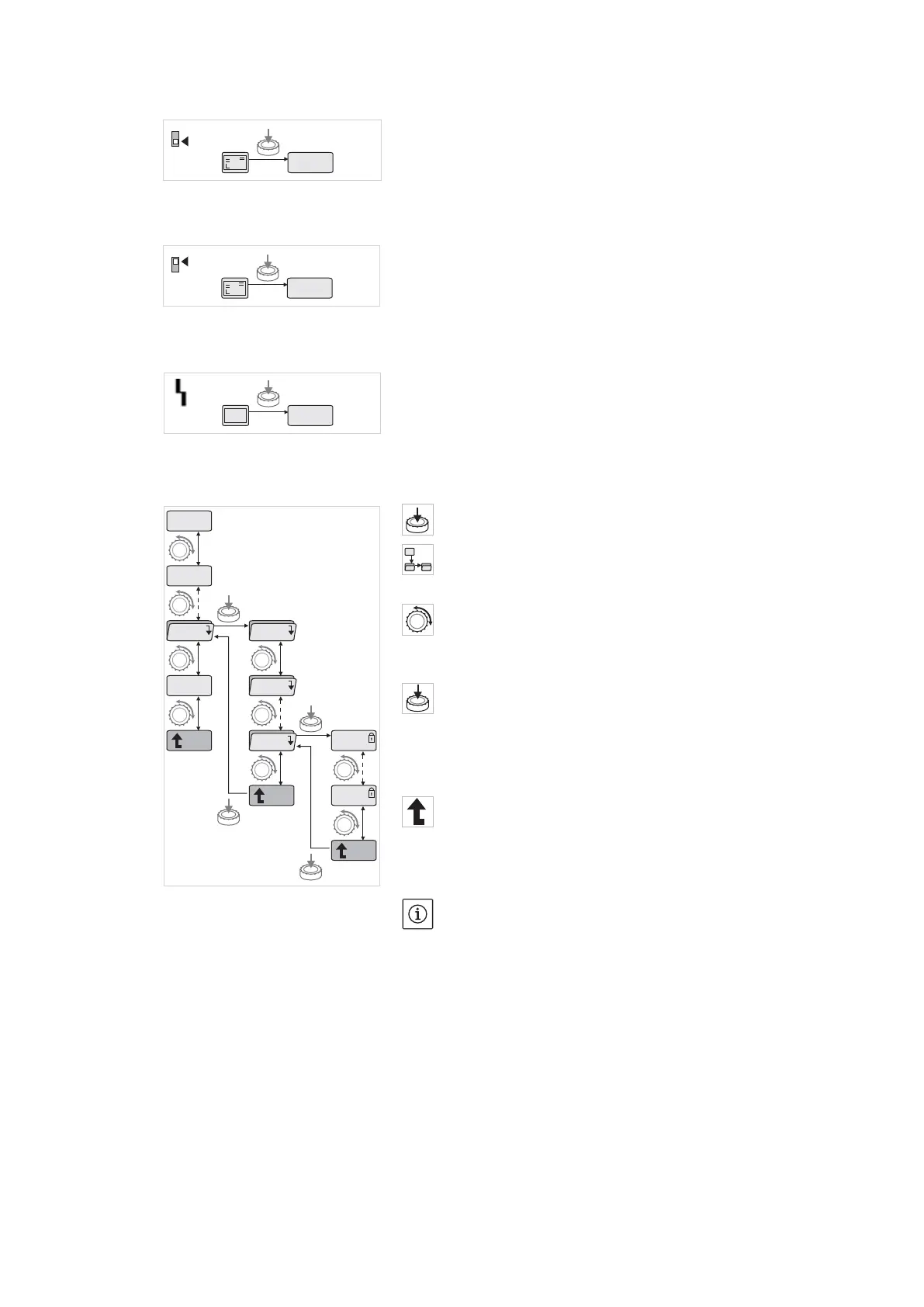

Fig. 31: Standard menu mode
2.0.0.0
±
2s
ON
1
12.3
Fig. 32: Service menu mode
5.0.0.0
±
2s
ON
1
12.3
Fig. 33: Error case menu mode
6.0.0.0
±
E000
Fig. 34: Navigation example
4.1.0.0
4.0.0.0
5.0.0.0
4.4.0.0
4.4.3.0
1.0.0.0
2.0.0.0
4.2.0.0
4.4.1.0
±
±
2s
