Menu structure
The menu structure of the control system has
4levels.
Navigation in the individual menus as well as the
parameter input are described in the following
example (change in low water follow-up time):

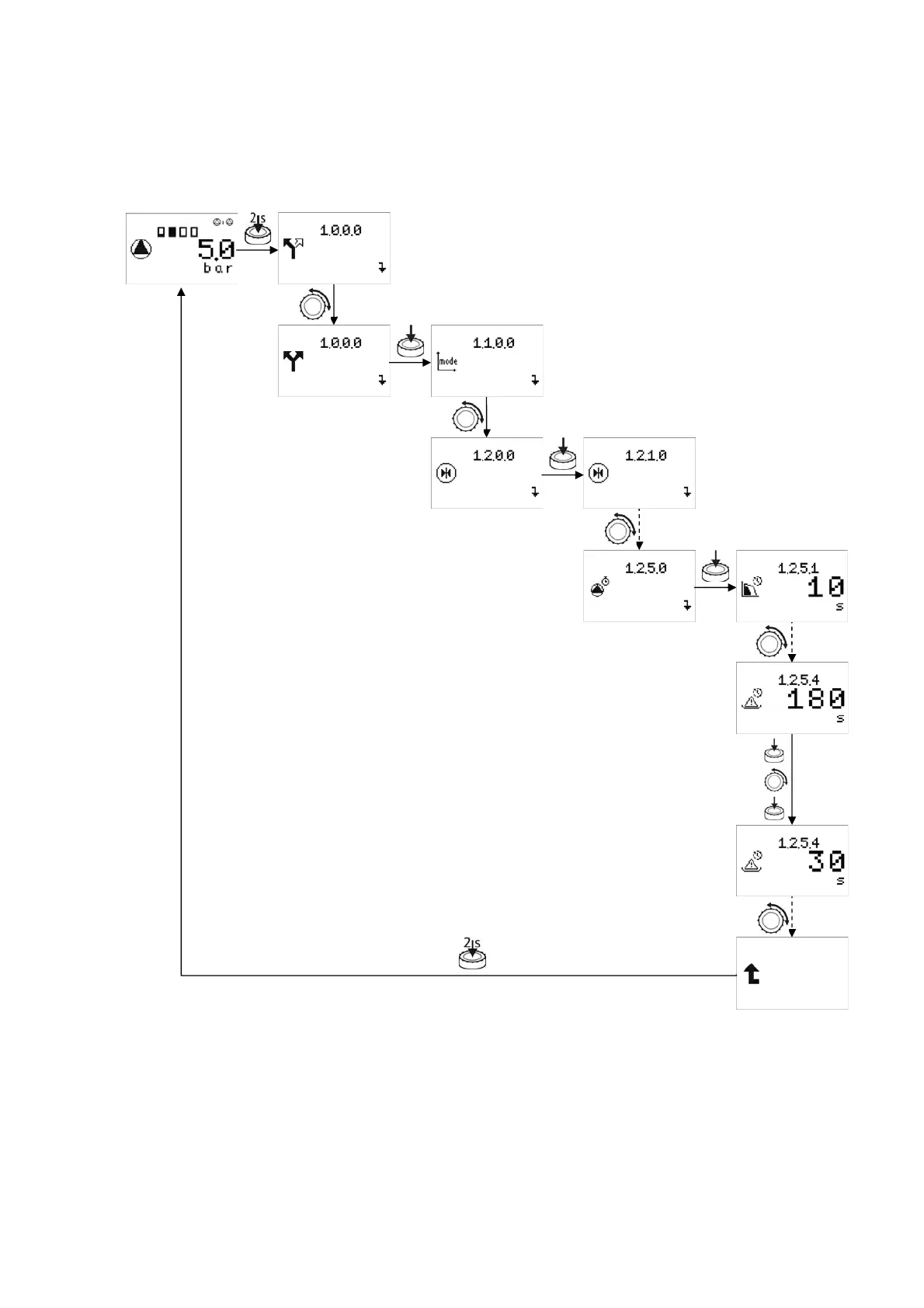

Fig. 6: Navigation and parameter input (example)
