Section 3.4—Tweeter Module Propagation Delay
Refer to Table labeled “Tweeter Detent Position.” Loosen the oval tether
bolt on the rear of the tweeter module enough so that it can freely move front-
to-back.
Note: When you loosen the oval tether bolt securing the Tweeter Module,
support the front of the module to ensure it does not slide forward.
1. Locate the number on the tweeter alignment plate, on the up-
per plane of the tweeter, that corresponds to the detent indi-
cated in the table.
2. Slide the tweeter such that the downward pointing spike of the
Array bridge aligns with the appropriate numbered detent.
3. Re-tighten the oval tether bolt, ensuring the cross member
spike rests in the correct detent location.
Authentic Excellence

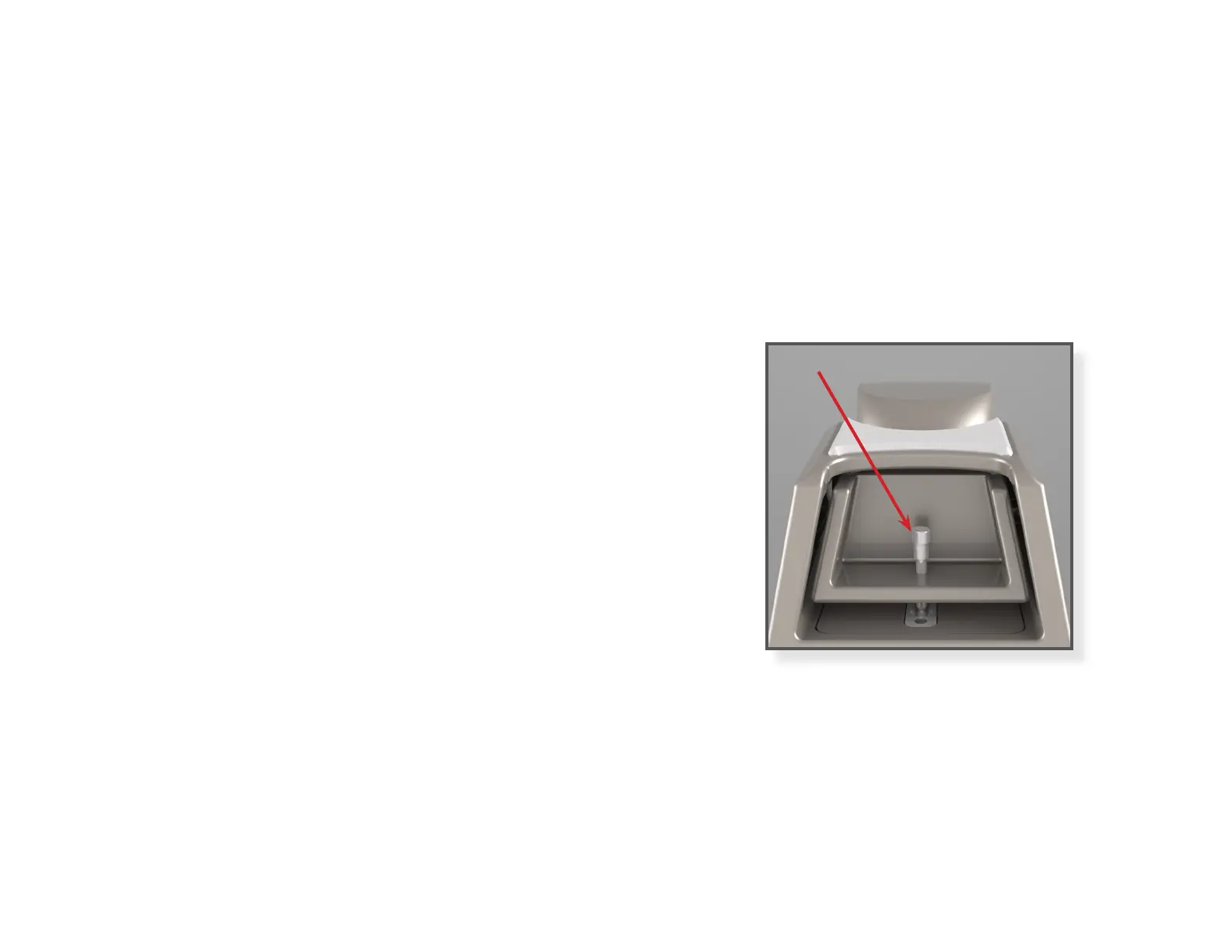

Oval Tether Bolt
