4. If you do not know how to mount
hardware or run coax cable through
walls, ceilings and oors, get help from
a Wilson Certied Installer at www.
wilsonelectronics.com/wci or from a
qualied contractor or electrician.
We recommend you install the Lightning
Surge Protector (859902). Attach the cable
from the Outside Directional Antenna to
the surge protector and ground the surge
protector. The LSP is sold separately.
Quick Install
For more detailed instructions on
installation, read the description later
in this guide or watch the video at
wilsonelectronics.com/AGPro4Gvideo.
NOTE: Create a “soft” install rst by testing
components in your proposed locations
before securing them with hardware.
1. Select a location on the roof of the
building to install the Outside Antenna.
Make sure the antenna is clear of
obstructions that could block the signal
from the nearest cellular tower.
2. Select a location to install the AG
Pro 4G Signal Booster that is well
ventilated and away from excessive
heat, moisture, and direct sunlight.
3. Select a location for the Inside Antenna
that is in the center of the area where
the signal needs to be amplied
and a minimum of 20 vertical feet or
50 horizontal feet from the Outside
Antenna.

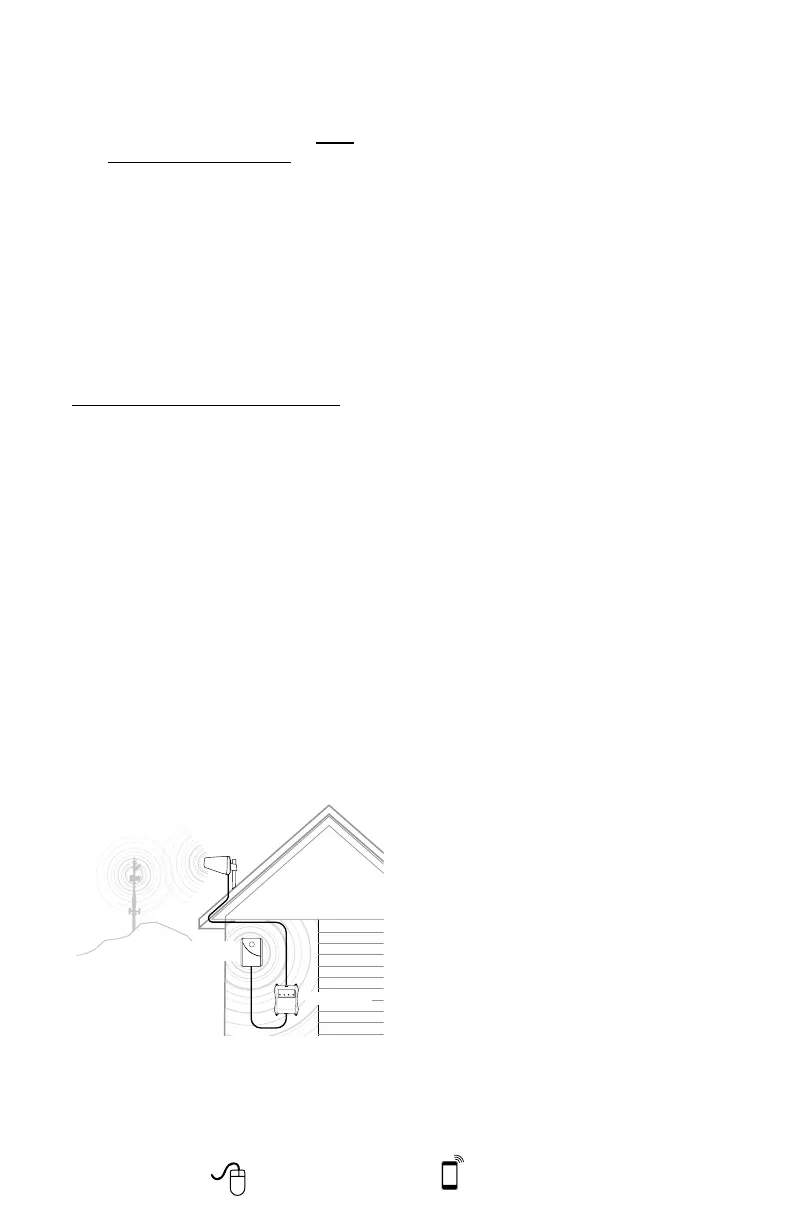

Outside Directional
Antenna
Inside Panel
Antenna
AG Pro 4G
4. Run the coax cable from the Outside
Antenna to the Signal Booster and
attach it to the connector labeled
“Outside Antenna.” Connect another
coax cable to the connector labeled
“Inside Antenna” and run it to the
Inside Antenna. NOTE: Be careful
not to bend the center pins on
the connectors when securing
connections.
5. Once you have ensured all
connections are tight, connect the
Signal Booster to a surge protected
power strip with at least a 1000 Joule
rating to protect your equipment from
power surges and lightning strikes.
(See page 11 for information on
lightning protection)
6. If your AG Pro 4G is working
correctly, the lights will be green.
If the lights are not green, see the
“Troubleshooting” starting on page 7.
Outside Antenna Installation
1. Select a location on the roof or an
outside wall where the Outside
Antenna can be mounted without
obstruction (at least three feet of
clearance in all directions) and with at
least 20 feet of vertical or 50 feet of
horizontal separation from the Internal
Antenna.
2. After connecting the coax cable to the
antenna, run it underneath the down
side of your roof’s ashing if mounted
on the roof. Tip: Often you can follow
the route used by satellite TV cables.
If you attach the Outside Antenna to a
wall, run the cable along the outside
of the wall to the area where you want
the cable to appear on the inside of
the building, then drill a hole through
the wall where the cable will enter
the building. Caution: Before drilling
holes for the cable, be sure there are
no electrical outlets, wiring, or sewer
or water pipes you could puncture or
sever.
3. Seal any holes with silicone, cable
bushings or other waterproof sealant.
Signal Booster Installation
1. Select a location for the Signal
Booster that is away from excessive
heat, direct sunlight, moisture and
well ventilated. The enclosure must
NOT be air tight. Also, be sure the
location is near a power source.
