SIGNALBOOST™ DT Installation Instructions
7
Wall Mount (Packet B)
1. Select a location on an outside wall at least 5
feet up from the ground, at least 20 feet away
from any other amplifi er or antenna and at least
20 feet away from where the amplifi er will be
located (see Figure 5).
2. Using the cradle as a template, position it on
the wall in the desired location and mark the
screw holes with a pencil.
3. Drill two holes where marked, using a 3/16-inch
bit, and insert the screw anchors.
4. Line up the holes in the cradle with the screw
anchors and mount the cradle to the wall using
two screws and two washers (see Figure
6). Tighten the screws with a Phillips-head
screwdriver.
5. Insert the antenna into the cradle with the
Wilson label facing in the direction of the
cell tower. The cable connection should
protrude through the bottom of the cradle.
6. Connect one end of the supplied coax cable to
the antenna and route the cable as desired to
where the amplifi er will be located.

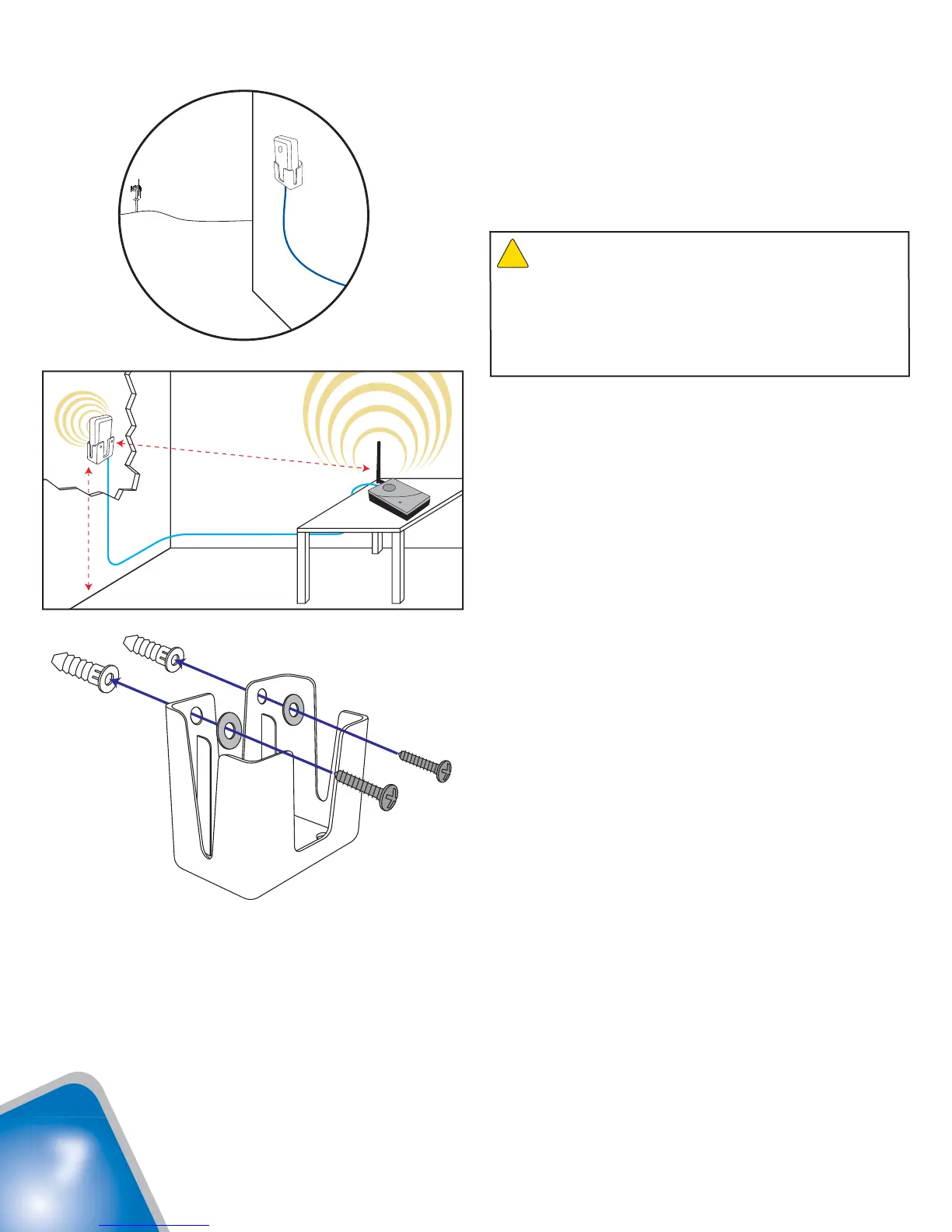

Min. 20 feet
Min. 5 feet
Figure 5
Figure 6
Antenna
and
Cradle
Cell
Tower
Warning: RF Safety: The cradle antenna, when used
with the included cable, must have a separation distance of at
least 8 inches from all persons. If the cable is shortened, or if a
different type of cable is used, or if a different antenna is used,
consult with Wilson Technical Support to verify that the planned
installation is safe. Call 866-294-1660 or 453-673-5021, or
email tech@wilsonelectronics.com.
!
