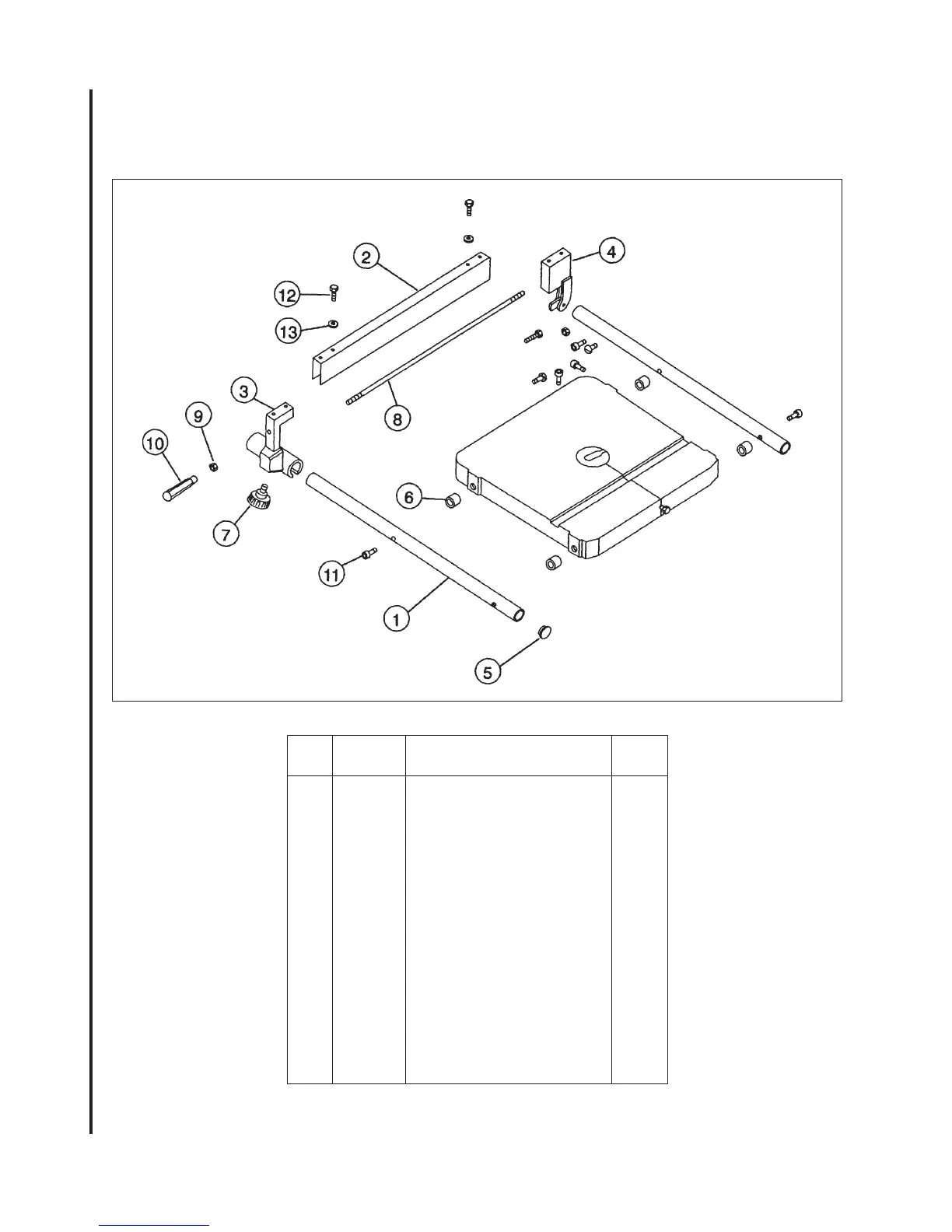

Parts List – Optional Rip Fence – All Models
Ref Part.
No. Number Description Qty
1 5784811 Rail, Guide 2
2 5784821 Fence, Rip 1
3 5784831 Seat Assembly, Clamp 1
4 5784841 Clamp Rail 1
5 5784851 Plug (7/8) 4
6 5784861 Spacer 4
7 5784871 Knob 1
8 5784881 Bar, Adjusting 1
9 5784891 Nut (3/8x16UNC) 1
10 5784911 Handle 1
11 5784921 Screw, Socket Head Cap 4
(M8x30)
12 5784931 Screw, Hex Head (M6x12) 2
13 5782981 Washer (M6) 2
5784941 Gauge Assembly, Miter 1
(Not Shown)
