Wilton 99192 - Before You Start; Know Your Miter Saw

BEFORE YOU START
8
KNOW YOUR MITER SAW

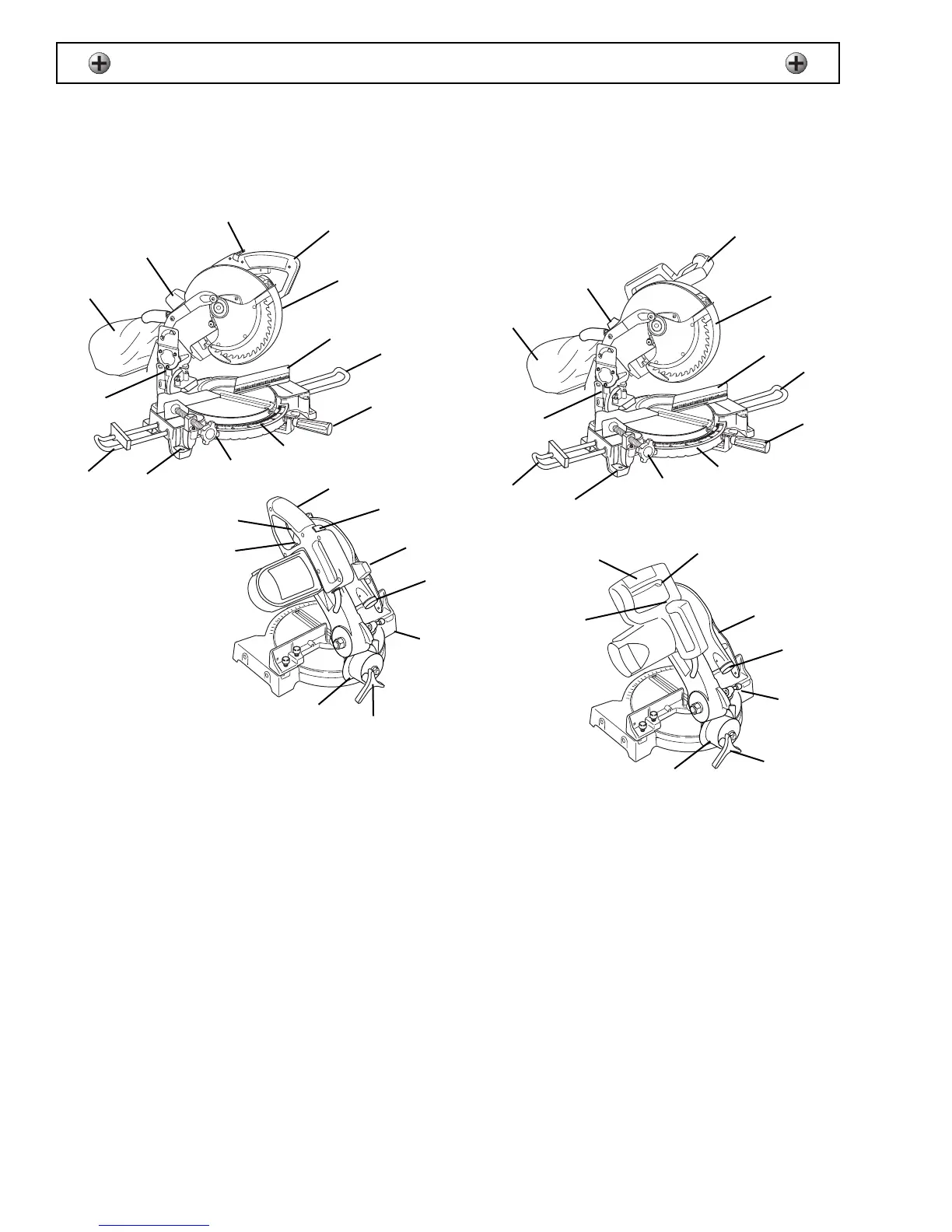

Figure 1
1 Power switch handle
2 Lower blade guard
3 Fence
4 Extension wing assembly
5 Miter handle
6 Miter index scale
7 Clamp vise assembly
8 Mounting hole
9 Blade wrench storage
10 Dust bag
11 Laser module
12 Power switch
13 Safety lock-out button (model 99192)
14 Laser switch
15 Dust port
16 Handle stop lock
17 Bevel lock knob
18 Bevel index scale
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
1
13
11
15
16
17
18
Model 99192
Model 99195
1
2
3
4
4
5
6
7
8
9
10
11
14
1
12
11
15
16
17
18
