Wimius T6 - Installation and Setup Procedures; Projector Installation Position Guidelines

2. Installation
Installation Position

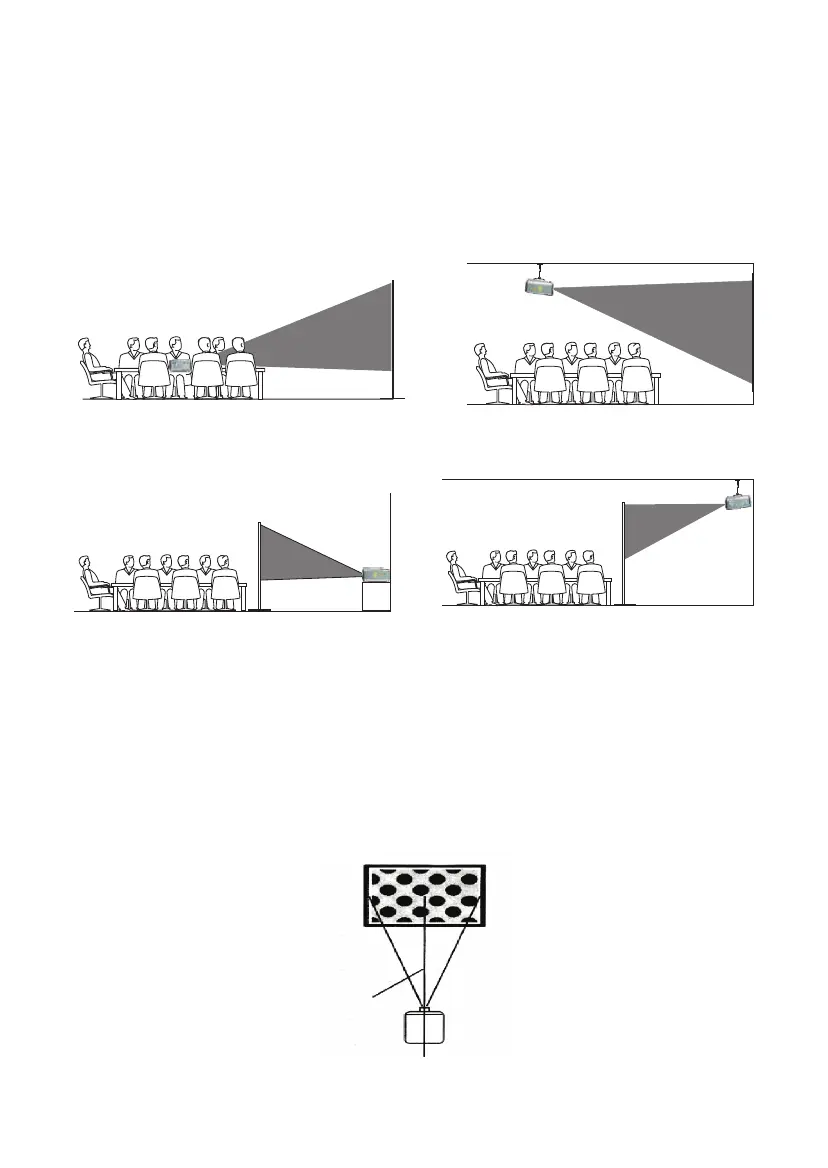

Front Projection Ceiling Front Projection
Rear Projection Ceiling Rear Projection
Installation Note: When forward lifting, the projector cannot be higher than the
projection screen edge; otherwise, it will aect the eect of adjusting the image and
keystone correction.
B. Keep the projector at a height where its lens is axial symmetry to the screen. If this
isn't possible, use the keystone correction ring to adjust the image.
A. Place the projector on a solid, stable surface or hanger,withventilationsurround-
ing;do not block the vents and there are no shelter objects around the vents within
30cm. To suspend the projector from a ceiling, you will need the projector mount
designed for the projector.You can install the projector shown below according to
your requirement.
When install correctly, the image is positive square.
ScreenSquare Positive
The symmetry axis
of the screen
Projector
6
