Appendix
A. Jumper settings and Connectors
This appendix gives the definitions and shows the positions of
jumpers, headers and connectors. All of the configuration
jumpers on WMP-17F are in the proper position.
Note: Some of jumpers or connectors will be removed
base on system configuration.

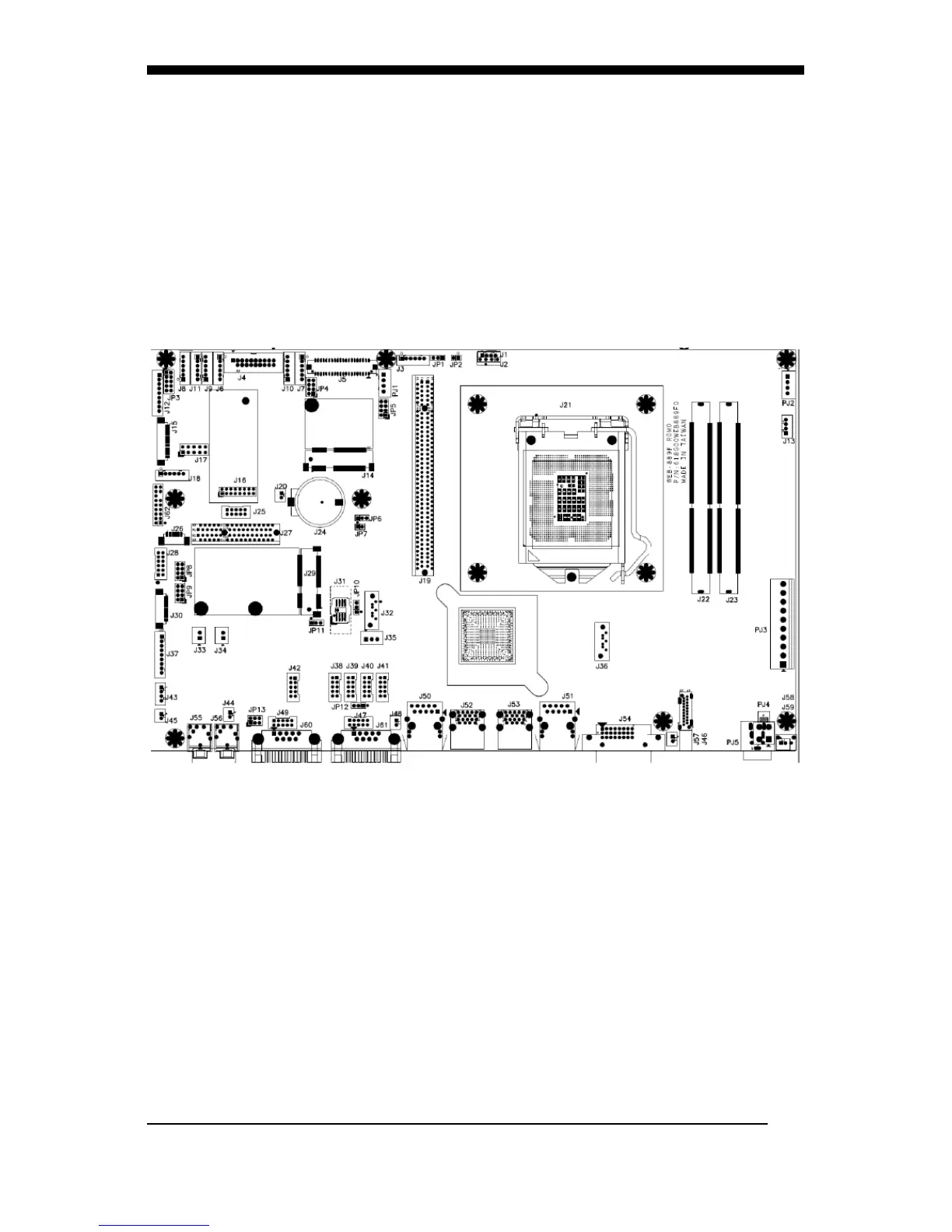

Jumper and Connector Definition Block
