Motoware Automation Programming Instructions | Vertical Awning Motor
1. INTRODUCTION

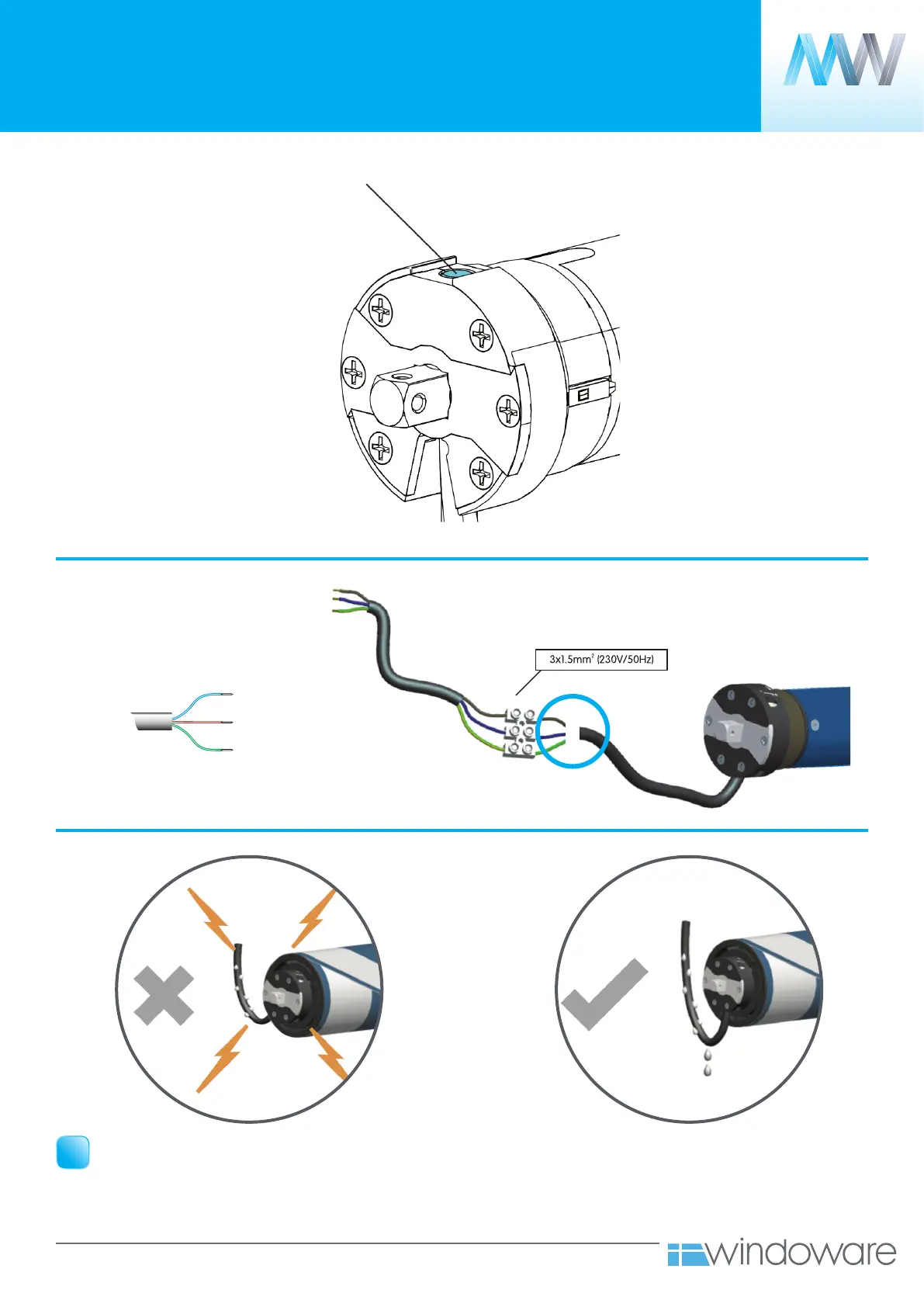

P1 button on motor head
1
2
3
1
2
3
Technical Information
RTS
4-Core Standard
Curtain Track Motor
04819
100kg Curtain Motor RTS 75/20
04820
100kg Curtain Motor 4-Core 75/20
RTS
Curtain Track Motor
Blue = Neutral
Black = Direction 1
Brown = Direction 2
Green = Earth
Wired
Yellow
Blue = Neutral
Brown = Live
Green = Earth
Yellow
Track Motor Specifications
windoware
designer collection
19
Motor
Track
235
52
34
22
8.2
30
1.8
Specifications 04820 4-Core 04819 RTS
Rated Curtain Weight: *100 Kilograms
Rated Input Power : 75 Watts 75 Watts
Open/close Speed: 20 (cm/sec) 20 (cm/sec)
Input Rated Voltage: 230 Volts 230 Volts
Frequency: 50 Hertz 50 Hertz
Rated Current: 0.34 Amps 0.34 Amps
Running Time: 4 Minutes 4 Minutes
Protection Class: IP20 IP20
Maximum Range Of Revolutions: ∞ ∞
Track Length: ≥12 Metres 12 Metres
Motor Weight: 1.1 Kilograms 1.1 Kilograms
*100 Kilograms
≥
50
windoware
designer collection
IMPORTANT
Ensure blind is installed with power lead pointing towards
the ground - otherwise water will run into the motor.
!
