ACCESSORY TOOL USAGE
CLIPPER 86038240
3-11

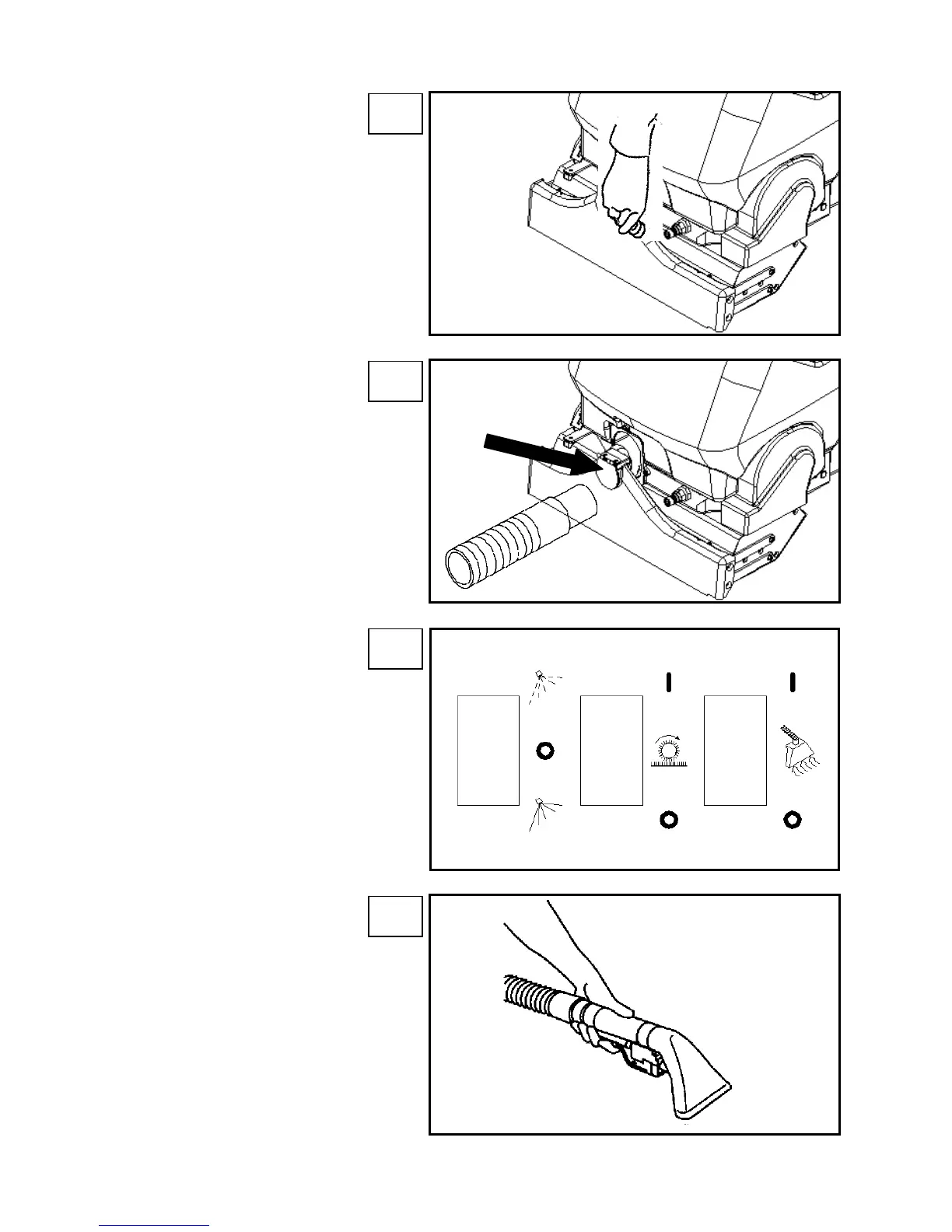

Turn on vacuum motor switch and set
solution switch to intermittent position.
Note: Be sure brush switch is in off position
and brush is in storage position.
Squeeze handle on accessory tool to begin
cleaning.
STEP
3
STEP
4
STEP
1
STEP
2
Use only one of the following acceptable
accessory tools.
HT – 86000610 - PRV NO. 89227
DDH – 86000600 - PRV NO. 89226
DH - 86031540 - PRV NO. 39504
Pull back collar and insert over machine
mounted fitting, then release collar to lock
into place.
Lift door on front of vacuum shoe and insert
1 ½ inch hose cuff into hole.
SOLUTION
VACUUM
ON
OFF
INT
BRUSH
