OPERATING AND MAINTENANCE INSTRUCTIONS
FOR YOUR WINEGARD RV/TV ANTENNA

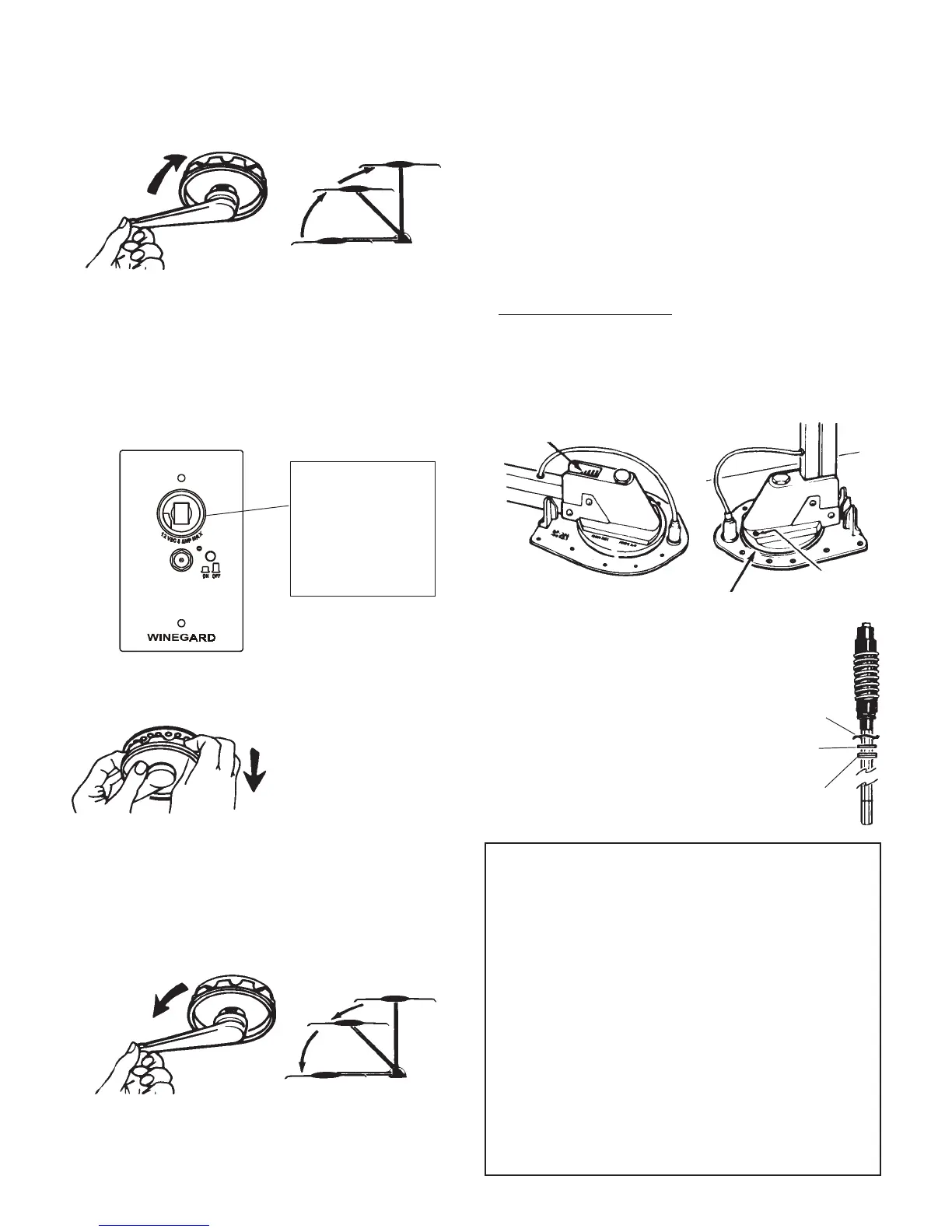

RAISING ANTENNA TO OPERATING POSITION
Turn elevating crank (clockwise) in “UP” direction about
13 turns or until some resistance to turning is noted.
AMPLIFIED MODELS ONLY
Turn power supply ON to use either front or rear TV
outlet. Neither outlet will work unless power supply
switch is ON.
ROTATING ANTENNA FOR BEST PICTURE
Make sure antenna is in “UP”
position. Pull down on both
hands until it disengages
ceiling plate and rotate for
best picture.
LOWERING ANTENNA TO TRAVEL POSITION
Rotate antenna until pointer on directional handle aligns
with pointer on ceiling plate. Turn elevating crank (counter
clockwise) in “DOWN” direction about 13 turns or until
resistance is noted. Antenna is now locked in travel
position.
IMPORTANT: Under no conditions lower antenna in
any position except travel position.
DO’S
1.
Do
check parking location for obstructions before raising
antenna.
2.
Do
carefully raise, lower and rotate - if difficult, check for
cause.
3.
Do
rotate slowly when selecting station and check fine
tuning on TV set to make sure it is properly adjusted.
4.
Do
lower antenna before moving vehicle.
DON’T’S
1.
Don’t
force elevating crank up or down, check for cause of
trouble.
2.
Don’t
rotate directional handle hard against stops.
3.
Don’t
travel with lift in up position.
4.
Don’t
leave lift part way up or down.
5.
Don’t
apply sealing compound or paint over top of base
plate or anywhere on lift.
LUBRICATION
STEP 1: To lubricate the elevating gear, apply a liberal
amount of silicone spray lubricant to the elevating gear
with the lift in the down position (see illustration below),
then run the lift up and down a few times to distribute the
lubricant over gears.
STEP 2: Twice yearly or in the event that rotating the
antenna becomes difficult, normal operation can be
restored by lubricating the bearing surface between
the rotating gear housing and the base plate. Any
silicone lubricant spray may be used. Elevate
antenna and remove set screw or plastic plug from
rotating gear housing as shown. Spray lubricant into
hole and around edges of gear housing. Rotate gear
housing until lubricant coats bearing surfaces and
antenna rotates freely.
Lubricate Here
Spray Around Edges
LUBRICATING RUBBER QUAD RING
Lubricate rubber quad ring on elevating
shaft which is below worm gear with
silicone spray lubricant at least twice
yearly. This will keep quad ring from
becoming brittle which could result in
leaks down elevating shaft. Refer to page
8 for removing worm gear assembly.
Item #6 on parts explosion.
Remove Plastic Plug
and spray lubricant
into hole
Wave
Washer
Flat
Washer
Rubber
Ring
WARNING
DO NOT connect high
current devices such as
hair dryers to this
receptacle. Maximum
current rating of this
receptacle is 8 amps at
+12 VDC.
Rev. 10/99
