SECTION 3 –
DRIVING YOUR MOTOR HOME
3-18
To close the hood, pull downward and swing
inward. Press top edge of hood panel inward
firmly with palms of your hands while turning
lock key to ensure proper latching.
ENGINE ACCESS GRILLE –
REAR
The diesel engine is located behind the grille
panel at the rear of the vehicle.
Unlock the latches near the ends of the grille
panel and swing it upward.
With the grille panel open, you can access the
following service points:
• Engine Oil Dipstick
• Engine Oil Fill Cap
• Power Steering Reservoir
•Radiator Cap
• Engine Coolant Reservoir
• Transmission Dipstick/Fill Tube
• Air Filter Restriction Indicator
• Engine Diagnostic Connector

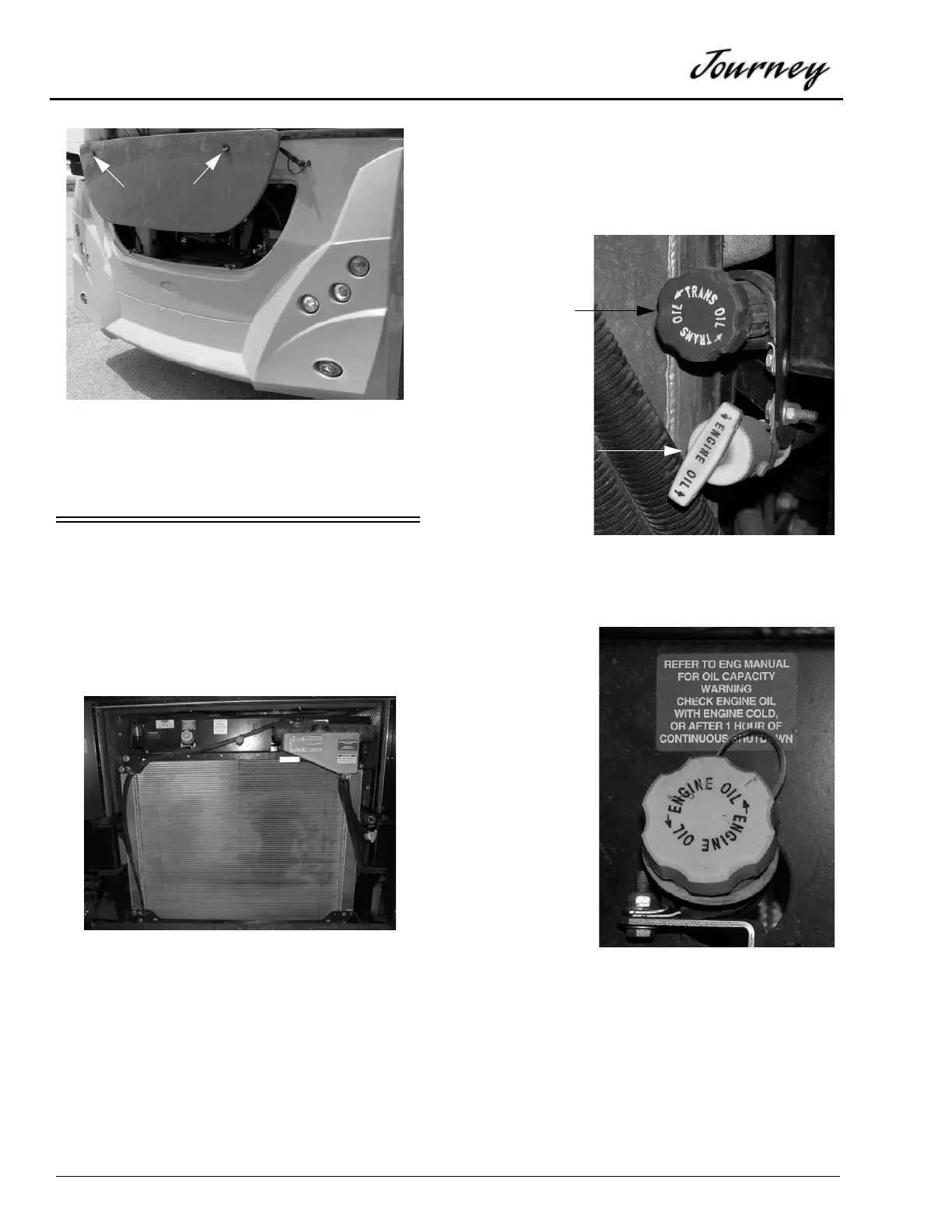

Hood Locks
Rear Engine
(Shown with grille panel open)
Transmission
Fluid Fill/
Dipstick
Engine
Oil
Dipstick
Located to the right of
the engine
Engine Oil Fill
(Located top of engine)
