4. Crank the room in until it is just “snugged up.”
Do not overcrank or you could damage the
gear assembly.
5. While maintaining pressure on ratchet
wrenches, re-engage the motor brake by
moving lever clockwise slightly - or to right
when facing end of motor (repeat for motor at
other end of room, if equipped).
6. Reconnect motor power lead to wiring
harness (repeat for motor at other end of room,
if equipped).
7. Fasten slideout room travel latching device (if
equipped) inside the coach before driving the
vehicle.
8. See your dealer for service of the slideout
mechanism before using again.
Further Information
See the Slideout Room operating guide
included in your InfoCase for further instructions
and troubleshooting information.
Accessing the Motor/Gear
Assembly
Model 25T
• Remove oval access panel inside front driver
side compartment.
Model 25R
• Remove rear bed mattress.
• Remove bed frame/panel assembly by
removing bolts around the perimeter of the
bed.
• Flip up partition cabinet lid and remove access
panel below.
• Below are two
motor/gear assembly covers.
Remove screws and lift off the panel on each.
Model 25Q
Front Slideout Room
• Remove oval access panel inside front driver
side compartment (same as Model 25T - see
previous photo).
Rear Slideout Room
• Underneath rear bed - remove mattress and
removable panel to access.

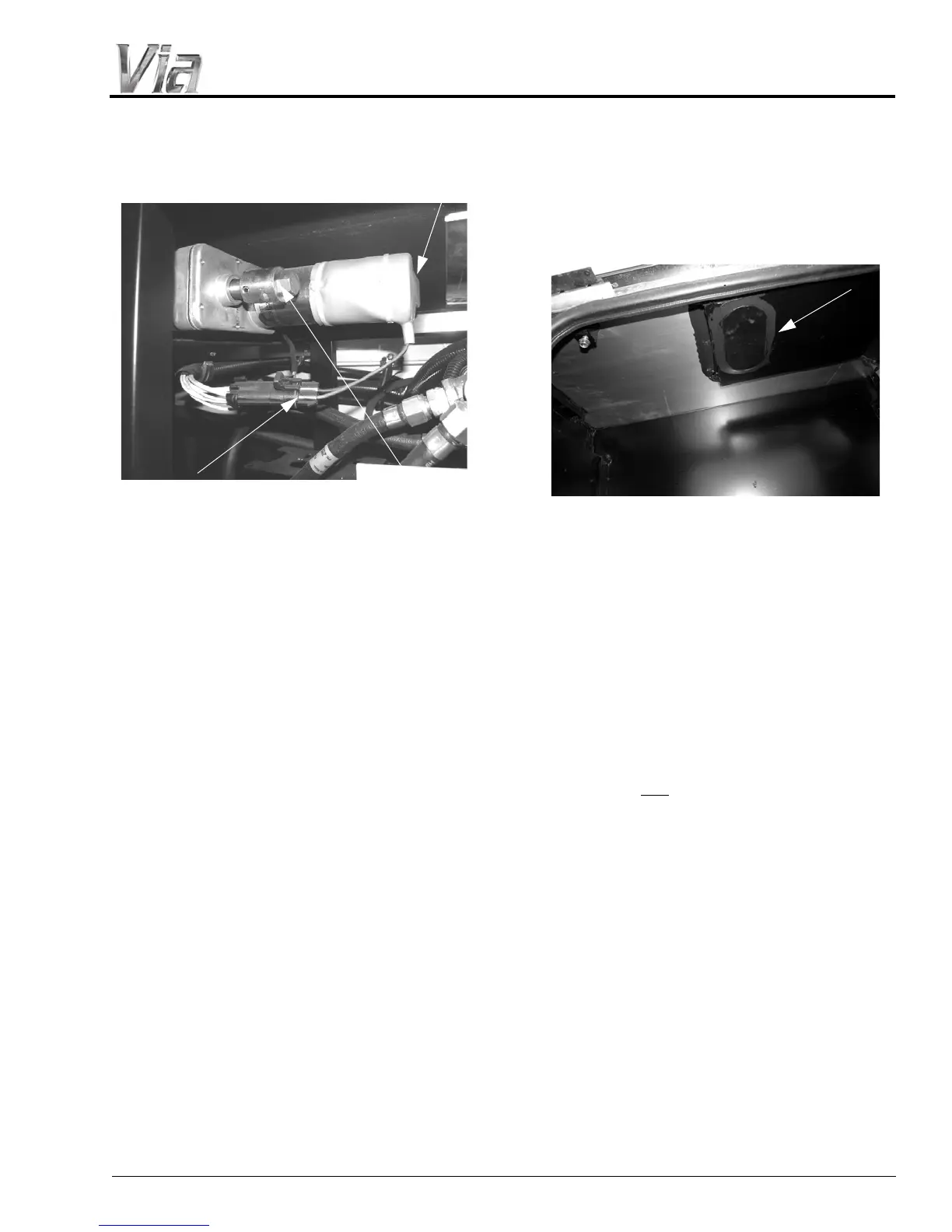

Slideout Motor/Gear Assembly
-Typical installation shown
1) Lift tab inside
protrusion on boot
to disengage
motor brake
2) Disconnect motor
power lead from
wiring harness
3) Use 3/4” socket
on gearbox shaft
to crank room in
Motor/Gear Assembly Access Panel
(Located inside driver side
front compartment)
* Model 25T shown
