SECTION 10 – SLIDEOUT ROOMS
SLIDEOUT ROOM TRAVEL
LOCK
–If Equipped
Some models are equipped with an
expandable prop-lock rod device to restrict
movement of the slideout room while the vehicle
is in motion.
The Lock Rod must be released before
extending the room or damage to the coach will
result.
To Release Lock Rod
• Rotate the body of the cylinder to loosen and
remove lock rod.
To Secure Lock Rod
• Place the flat plate end of the lock rod against
the outer wall of the coach about 6” down
from the top edge of the forward end of the
retracted slideout room (behind the driver seat
in most cases).
• Swing the T-shaped end of the rod into place
against the back side of slideout room flange
(frame) as shown.
• Rotate the cylinder body to tighten the lock
rod snugly. During vehicle stops, check and
retighten as necessary.
Master Keylock
A master keylock switch is located near the
power switch for the front slideout room. This
keylock must be turned on to provide power to
the slideout control switches.
NOTICE
Release and remove Slideout Prop-Lock
Rod before attempting to extend slideout
room. Damage to the vehicle will result if
this is not done. Position and secure
Prop-Lock before driving vehicle. See
following instructions.

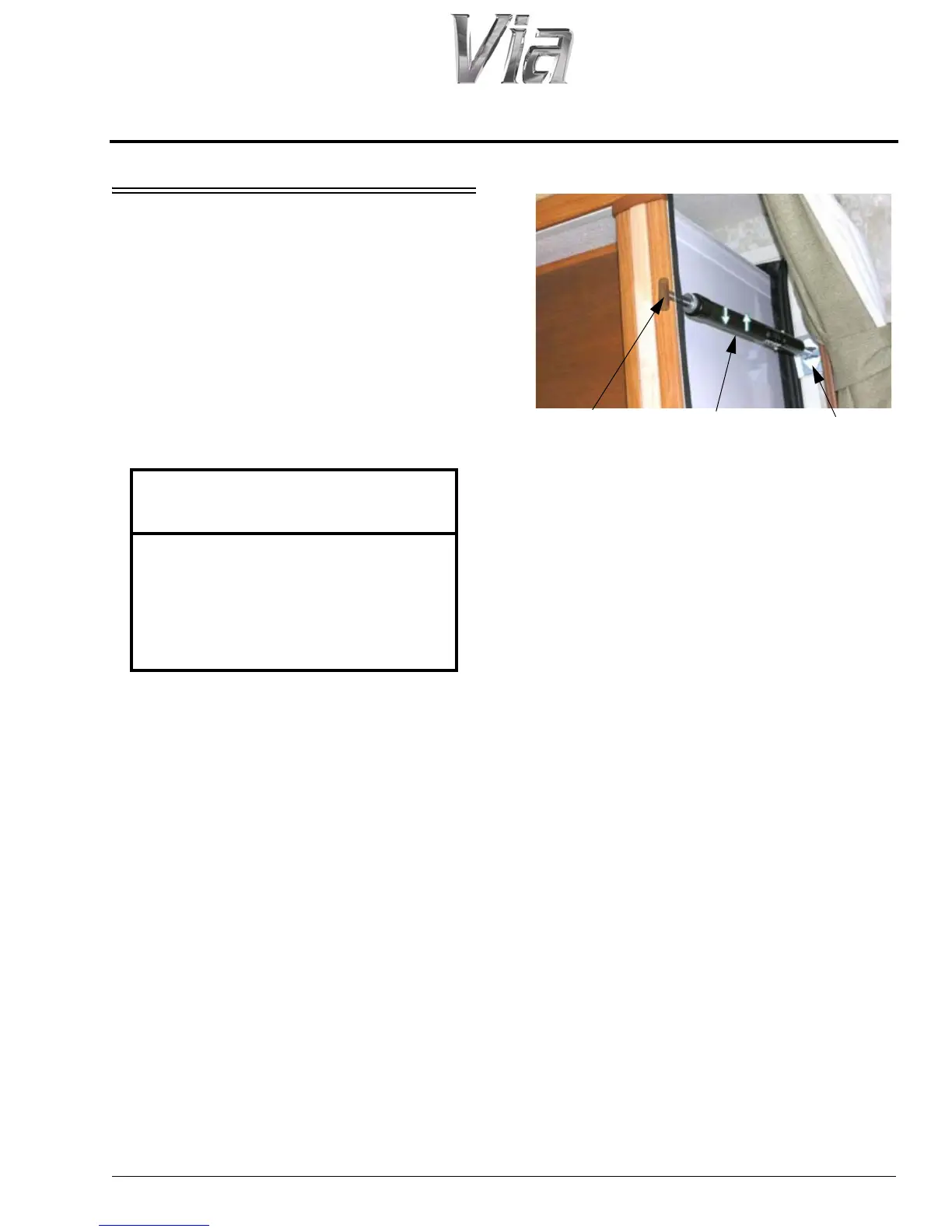

Slideout Room Prop-Lock Rod
Typical view of forward end of retracted slideout
room directly behind driver seat. Your model may
differ in appearance.
• Place T-shaped
rod end against
back side of
slideout frame
• Place flat plate
end against
coach sidewall
• Rotate cylinder
body to loosen
or tighten ends
