SECTION 6 –
ELECTRICAL
6-12
The fuse panel accepts only blade type plug-in
fuses. Always replace fuses with those of the
same amperage rating.
Battery Charge Meter
See related item under “Systems Monitor
Panel” in Section 4 - Appliances and Systems.
Battery Boost Switch
See Section 3 - Driving Your Motorhome for
information on the Battery Boost switch.
Automotive Chassis and House
12-Volt Circuit Breakers
A label on the Automotive Chassis and House
12-Volt Circuit Breaker panel states the
amperage rating and circuit protected for each
breaker.
NOTE: Breakers are labeled on panel.
Arrangement may vary according to
appliance and equipment options.

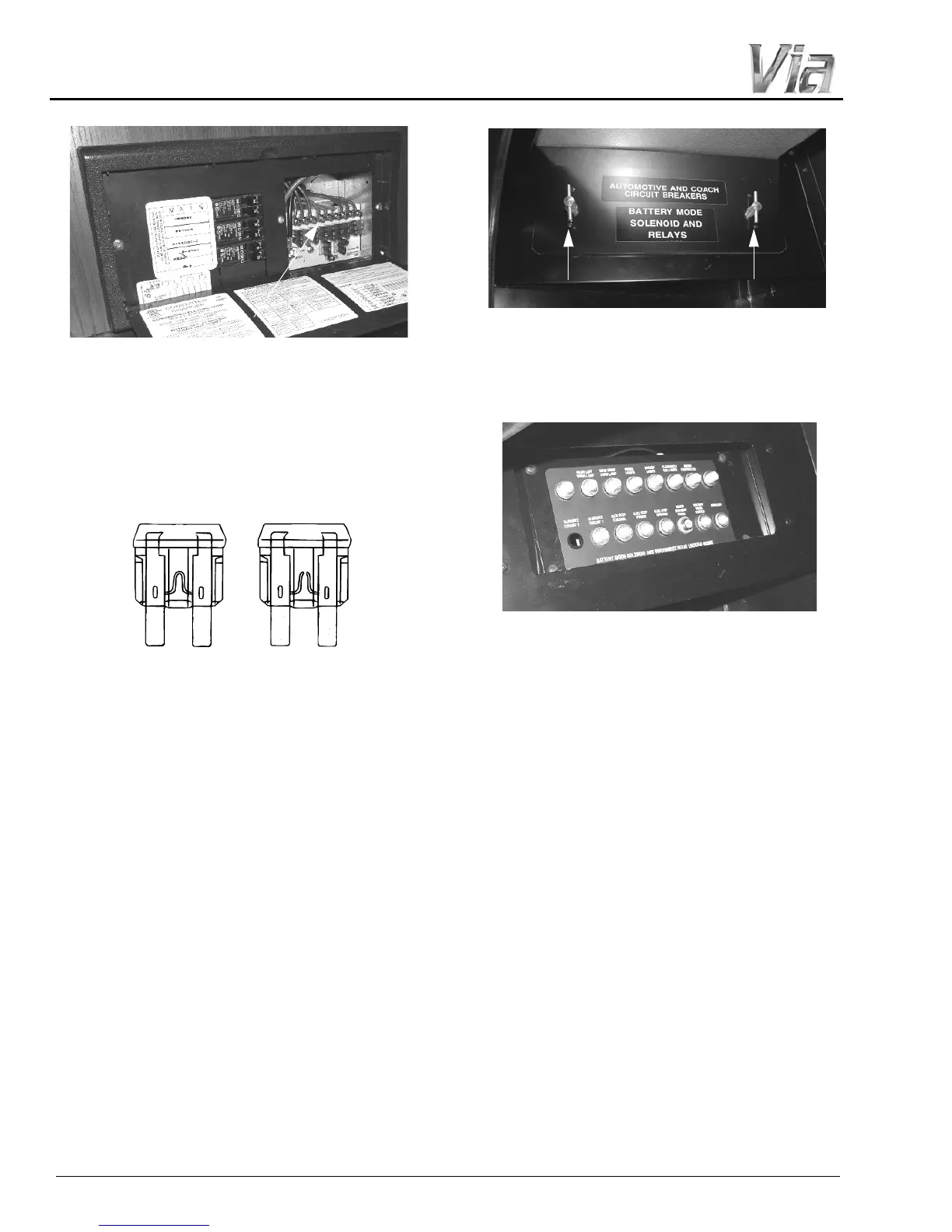

House 12-Volt Fuses
(Located on right-hand
side of Power Converter)
-Typical View
Functional Non-Functional
Automotive Chassis and House
12-Volt Circuit Breakers
(Located in passenger side compartment)
* Turn latches to remove cover
Automotive Chassis and House
12-Volt Circuit Breakers
* Shown with cover removed
