6-9
SECTION 6 –
ELECTRICAL

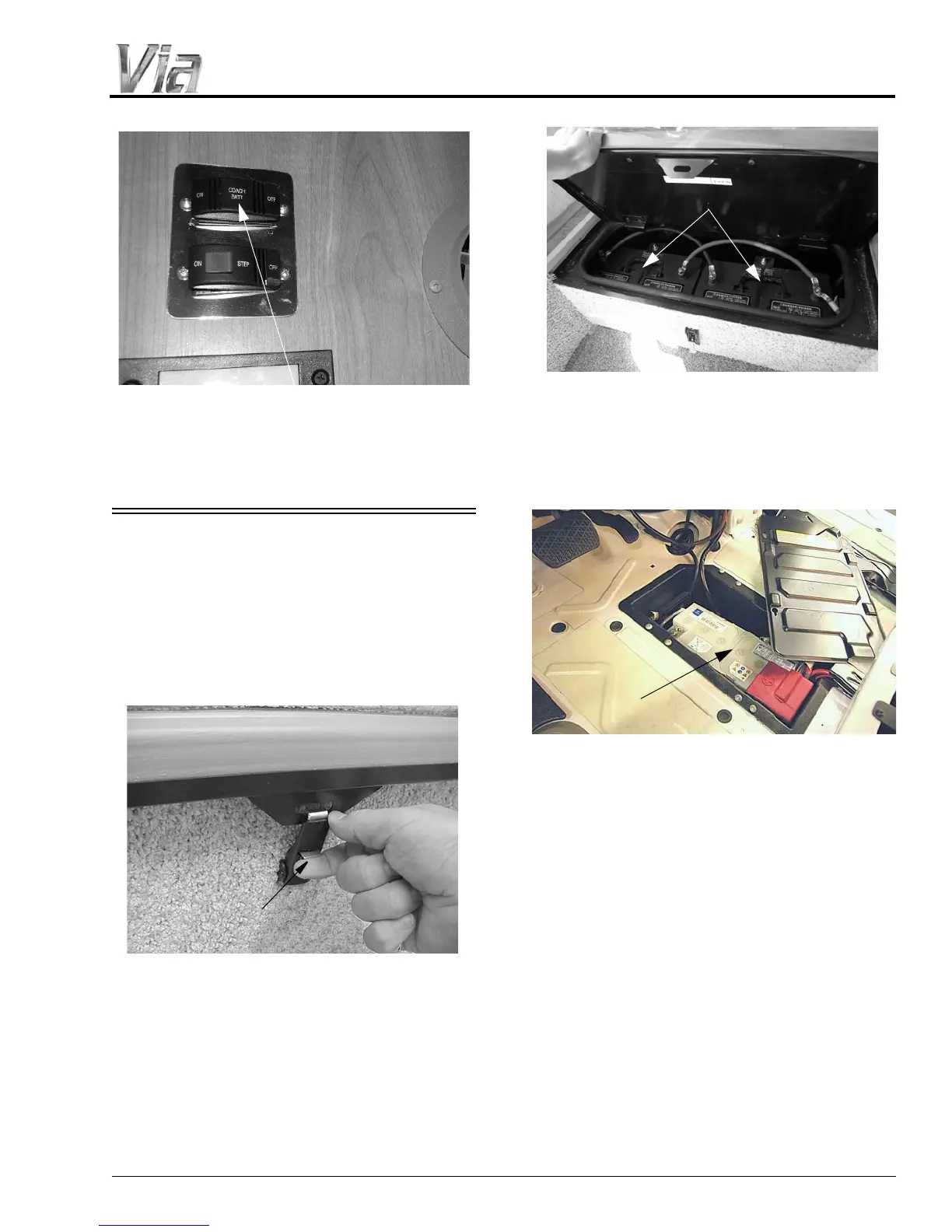

BATTERY ACCESS
House Batteries
The house batteries are located in a
compartment beneath the interior entrance steps.
Unfasten the step retainer, then lift the step
upward and remove to service batteries.
Chassis Battery
The chassis (starting) battery is located in a
compartment “well” in the floor beneath carpet
ahead of the driver seat.
Chassis Battery Connector
The chassis battery connector is located to the
right of the accelerator pedal in the driver side
foot well.
NOTE: Ensure that the ignition key is in the Off
position and the key is removed, and wait
10 minutes before disconnecting.
House/Coach Battery Disconnect Switch
(Located near entrance door or end of
galley, depending on model)
-Typical View
• Squeeze tab upward
to release latch
