DOCUMENT NO.: QR-208/A
B C D E
B C D E
1
2
3
4
5
6
SCALE
SIZE
DATENAME
APPROVALS
APP. BY
CUSTOMTER
DRAWN BY
CHECKED BY
1:1
A4
更 改 记 录
次 号
1.
2.
3.
VER.A0
SHEET
OF
PART Number: X-XXX-XXX-XX
1 1
WT8811 (WINTACT) 中 文 有 唛说明 书 示意图
日 期
更 改 内 容
71688811001
MJP
2018-04-09
SHENZHEN JUMAOYUAN SCIENCE AND TECHNOLOGY CO., LTD.
71688811001
WT8811 中文有唛说明书
材料:105G双铜;
页数： ( )
成品尺寸:190*130MM; 公差:+-1.0MM;
工艺:单色双面印刷,加工:装订成册说明书;骑马钉
20P 封二及封三留空白
130.00 mm
95.00 mm
-03--02-
2
1
3
4
5
6
7
8
10
9
(Figure 1)
11
Compound Gas Monitor adopts high-quality gas sensors,which displays
safety and reliability with accurate measurement and stable performance.
It has excellent sensitivity and repeatability, easy to use and maintain, and
meets the requirements by safety monitoring in industrial site for high
reliability of the equipment. The shell is made of high-strength engineering
plastics and compound non-slip rubber, dust and explosion-proof, with high
strength and smooth handfeel.
Compound Gas Monitor is widely used in petroleum, chemical, environ-
ental protection, metallurgy, refining, gas transmission and distribution,
biochemical medicine, agricultural research, etc.
This indstrument conforms with the following procedures and calibration
standards:
Gb3836.1—2010 Explosive Atmospheres Part 1: General Requirements
for Equipment.
GB3836.4—2010 Explosive Atmospheres Part 4: Equipment with
Intrinsically Safe “I” Protection.
GB15322.3—2003 Portable Combustible Gas Detectors Part 3: Portable
Combustible Gas Detectors with a Measurement Range of (0~100) %LEL.
JJG693—2011 Verification Standards for Combustible Gas Detection Alarm.
JJG 365 — 2008 Verification Procedures for Electrochemical Oxygen Tester
JJG695-2003 Verification Procedure for Hydrogen Sulfide Gas Detector
JJG915-2008 Verification Procedures for Carbon Monoxide Detection Alarm
Introduction

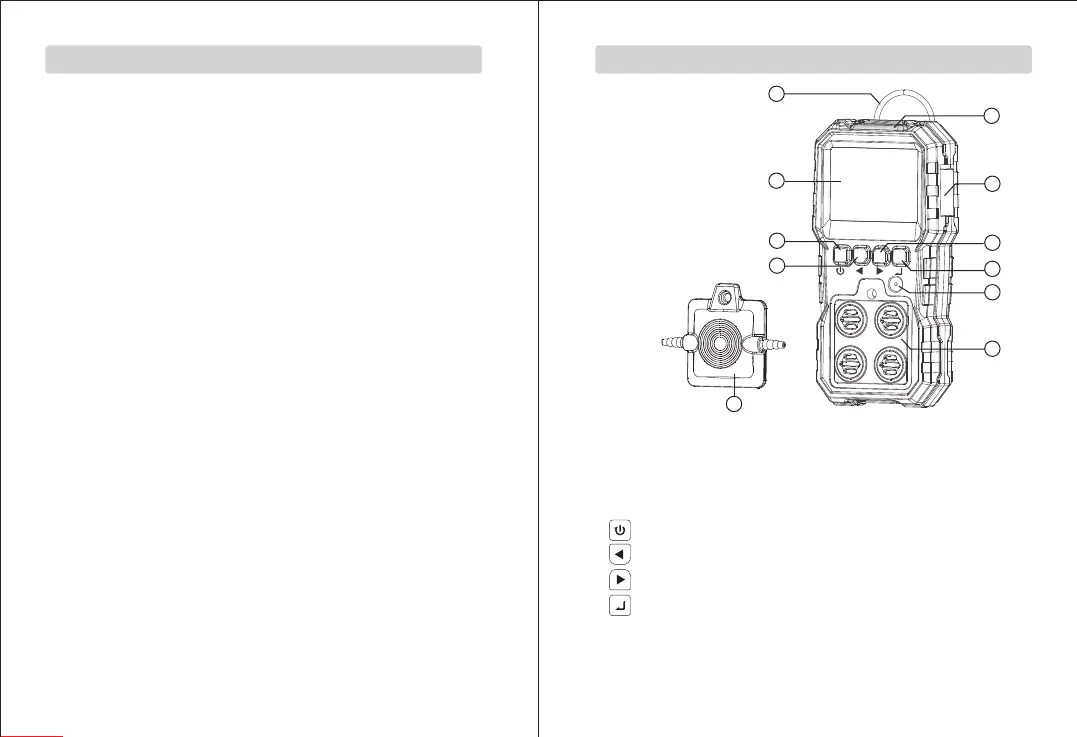

Name of parts
1. Alligator clips on the back.
2.Transparent window for alarm indicator.
3.LCD display.
4.DC adaptor socket.
5. Return button: long press on/off button, short press to return.
6. Left button: left forward, upward, decrease.
7. Right button: right forward, downward, increase.
8. Confirm button: confirmation.
9.Buzzer alarm hole.
10.Gas sensing hole.
11.Gas calibration cover.
