Winterhalter UC Series Assembly Instructions

2 | 89014662; 2022-04 | Assembly instructions
3 Connecting the dosing tubes and suction tube

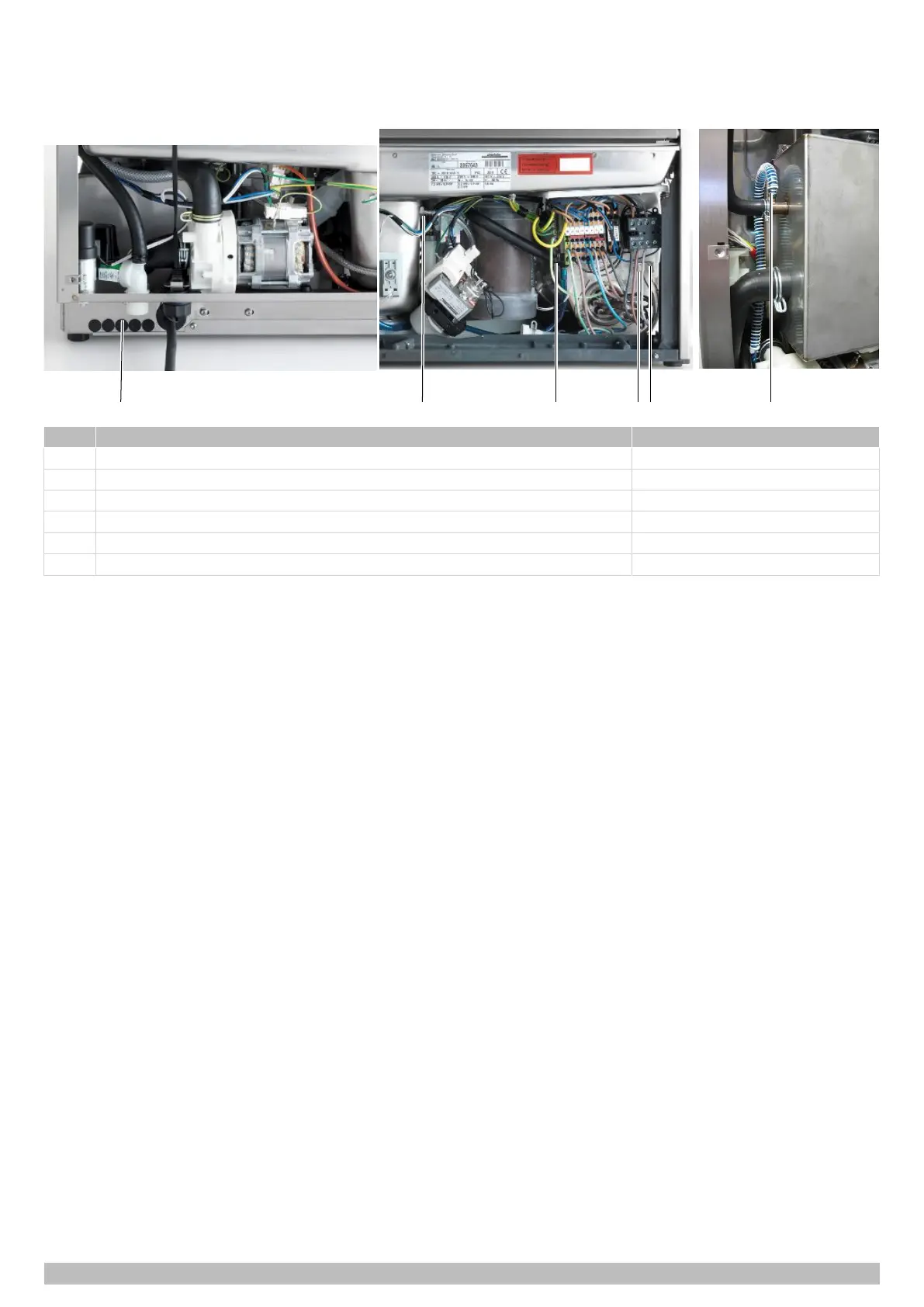

Terminals
1 3 42 5 6
Item Name Note
1 Entries for hoses and cables Rear view
2 Connection for detergent dosing hose Front view
3 Connection for rinse aid dosing hose UC-M, UC-L, UC-XL
4 Plug for detergent suction tube with empty indicator White plugs
5 Plug for rinse aid suction tube with empty indicator Blue plugs
6 Connection for rinse aid dosing hose UC-S, rear view
Connections for detergent and rinse aid dosing for hoses with an inner diameter of 5 mm are available on the warewasher.
Ø Disconnect the warewasher from the electrical mains supply and secure against unintended activation.
Ø Remove the front cover from the warewasher.
Ø Remove partition wall to the electrical installation area.
Ø If present, remove Winterhalter dosing device and insulate electrical connections.
Ø Install the dosing device on-site.
Ø Lead the dosing hose and the connection cable through at the intended point on the back of the warewasher chassis (1).
Ø Fasten detergent dosing hose to detergent connection (2) with wire hose clip.
Ø Fasten the rinse aid dosing hose to the rinse aid connection (3 / 6) with a wire hose clip.
Ø Connect the connection cable of the suction tube on the plug (4 / 5).
Ø Ensure that the dosing hose and connection cable are guided kink-free.
Ø Install partition wall to the electrical installation area.

Winterhalter UC Series Specifications

General

Model	UC Series
Category	Dishwasher
Energy Consumption	Varies by model and program
Type	Undercounter
Dimensions	Varies by model
Capacity	Varies by model
Wash Cycle Duration	Varies by program
Water Consumption	Varies by model and program
Noise Level	Varies by model
Detergent Dispensing	Automatic
Rinse Aid Dispensing	Automatic
Power Consumption	Varies by model
Dimensions (HxWxD)	Varies by model
Weight	Varies by model
Wash Programs	Standard, Intensive, Short
