Winterwarm TR - Page 8

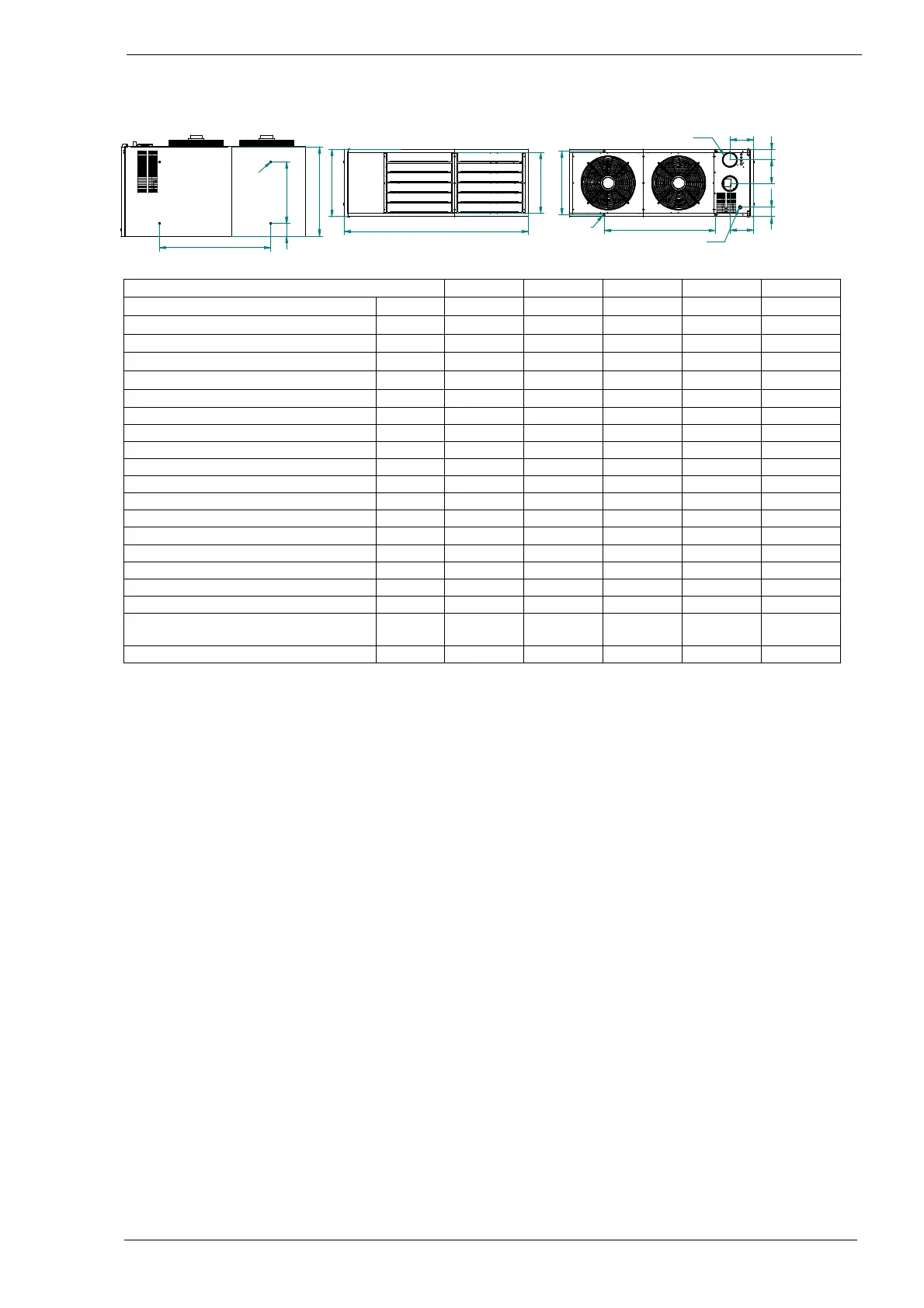

Instructions condensing Air heaters type XR version XR-GB-4001-a Page 8/27
A
B
C
F
HI
K
Diam. M & N
Gas O
P
R
S
T
U
F
4x M10
G
4x M10
Dimensions axial version TR60 TR80 TR100 TR125 TR150
A mm 1735 1735 1735 1735 1735
B mm 630 630 800 970 1130
C mm 845 845 845 845 845
D mm 120 120 120 140 140
E mm 1335 1335 1335 1335 1335
F mm 1050 1050 1050 1050 1050
G mm 603 603 768 938 1103
H mm 580 580 580 580 580
I mm 123 123 123 123 123
K mm 225 225 225 225 225
M mm Ø130 Ø130 Ø130 Ø130 Ø130
N mm Ø130 Ø130 Ø130 Ø130 Ø130
O mm 3/4“ 3/4“ 3/4“ 3/4“ 3/4“
P mm 570 570 740 910 1070
R mm 220 220 220 220 220
S mm 143 143 143 143 143
T mm 127 127 127 127 127
U mm 88 88 88 88 88
For the purpose of suspension
above / below & backside
4x M10 4x M10 4x M10 4x M10 4x M10
Weight kg 135 150 200 230 260
