HWT9053-RS485 | manual v0707 | http://wiki.wit-motion.com/english

- 24 -

2.4.4 Placement Direction

The default installation direction of the module is horizontal. When the module

needs to be installed vertically, the vertical installation can be set.

Step 1: Rotate the module 90 degrees around the X-axis

Step 2: Place the sensor 90 degrees vertically

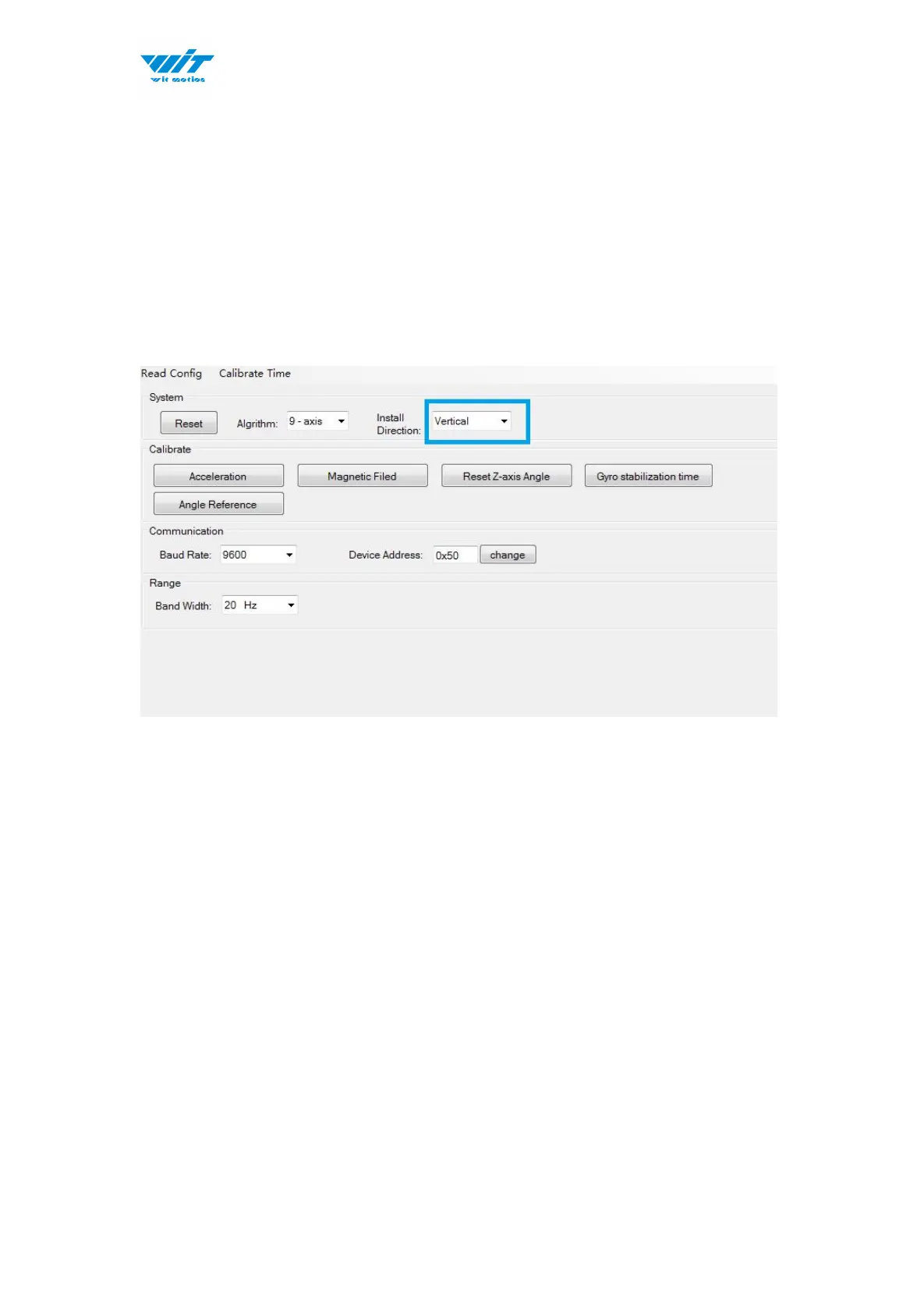

Step 3: Click “Vertical” as install directions on “Config” menu
