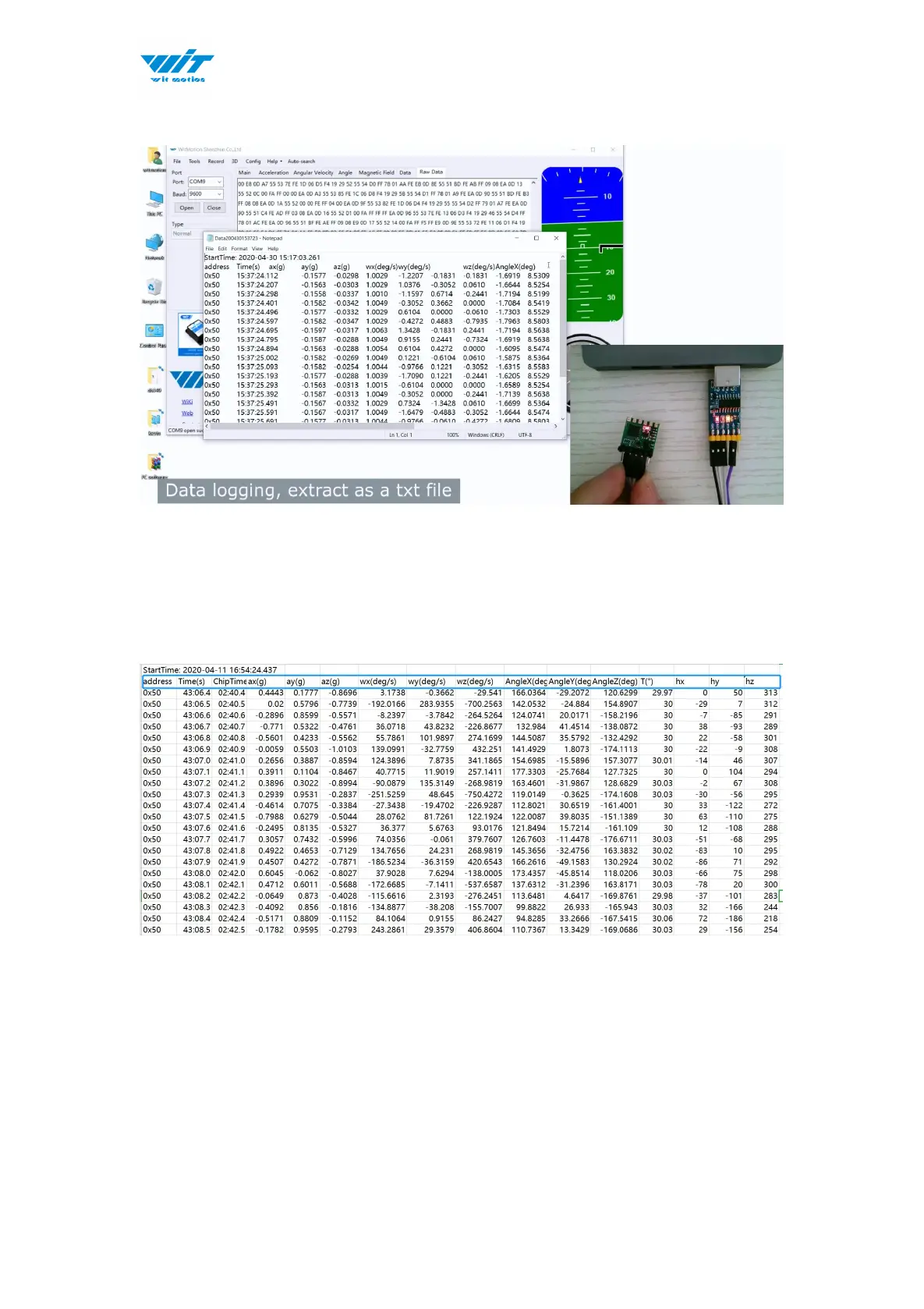

Step 3: Extract the data as “txt” file
Notice: If there is repeated “TIME” of data, that’s caused by low-resolution of
the Windows system’s time. The changes in other data is correct.
It is highly recommended that data can be pasted to an Excel file. In this way,
all data will be shown in order.
Time represents time, ax ay az represents the acceleration in the three axes of
x y z, wx wy wz represents the angular velocity in the three axes of x y z.
Anglex Angley Anglez represents the angles of the three axial directions of x y
z, T represents the temperature, and hx hy hz represents the magnetic fields of
the three axial directions of x y z respectively.
