2.4.12 6-axis/ 9-axis Algorithm
6-axis algorithm: Z-axis angle is mainly calculated based on angular velocity
integral. There will be calculated error on Z-axis angle.
9-axis algorithm: Z-axis angle is mainly calculated and analyzed based on the
magnetic field. Z-axis angle will have few drift.
The default algorithm of WT901 is 9-axis. If there is magnetic field interference
around installed environment, it is recommended to switch to 6-axis algorithm
to detect the angle.
Method:

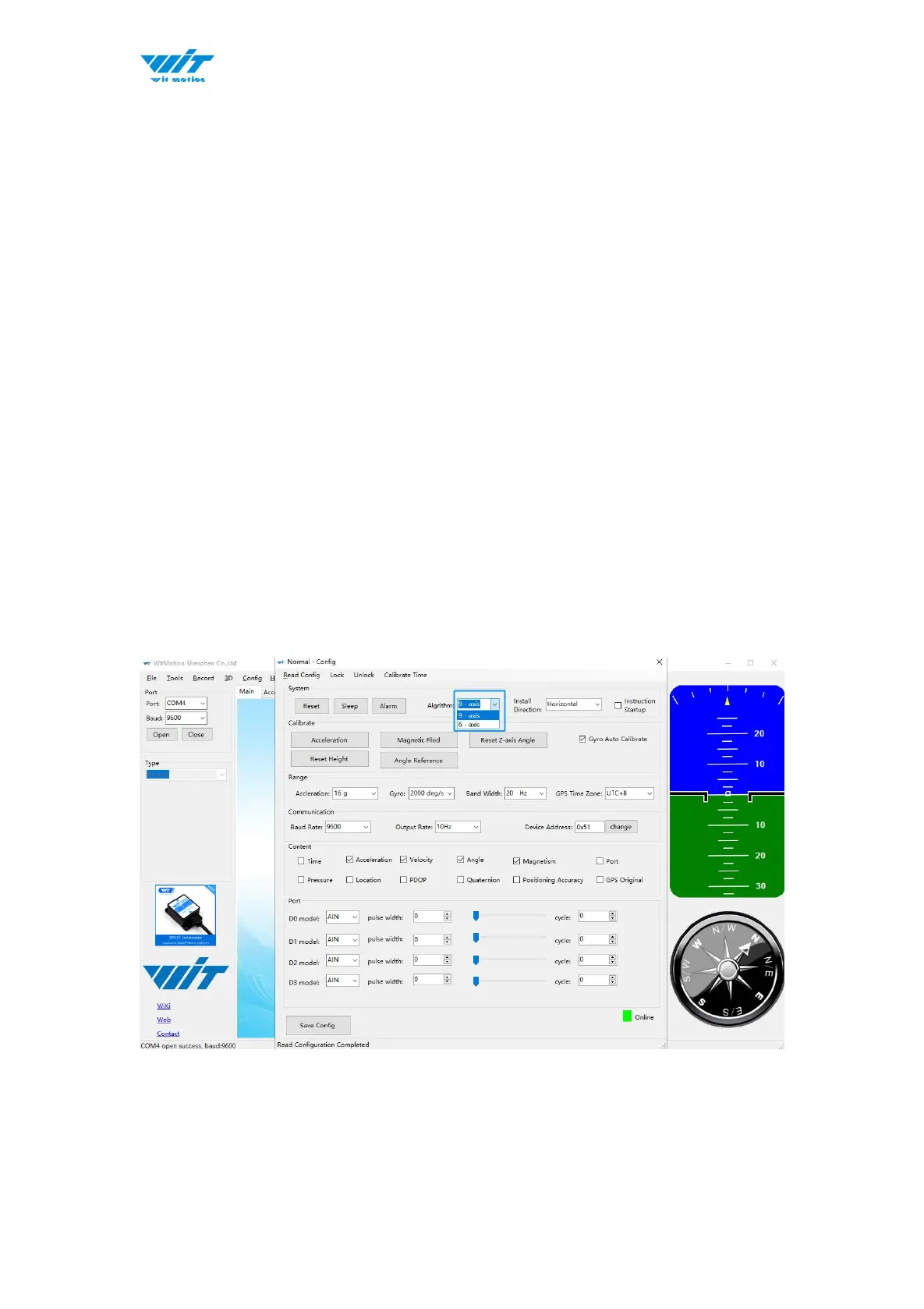

Step 1: Switch to the "6-axis" algorithm on “Config” menu
Step 2: Proceed the “Accelerometer calibration” and “Reset Z-axis angle”
calibration.
After the calibration is completed, it can be used normally.
