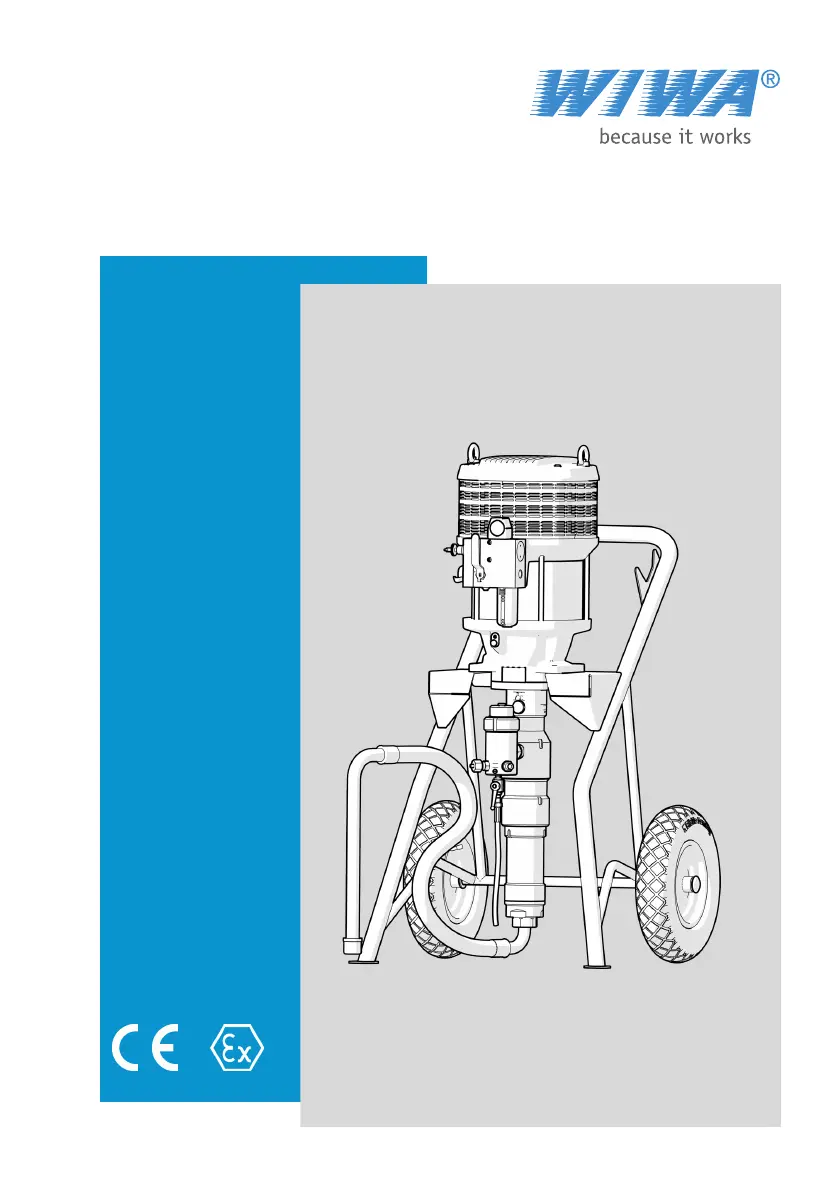

wiwa GX Series - User Manual

Questions and Answers

J
Jennifer KingAug 5, 2025
Why is my wiwa Paint Sprayer pump running, but not spraying material?
- B
  Brad MooneyAug 5, 2025
  If the wiwa Paint Sprayer pump runs but doesn't convey material, several issues could be the cause: * The spray gun might be clogged. Check, clean, and replace the nozzle or filter element if needed. * The relief hose or ball valve might be clogged. Clean or replace them. * The air motor could be defective. Repair it using the spare parts list, or contact customer service if necessary. * The suction strainer might be clogged. Clean or replace it. * The suction hose might be clogged. Replace the hose.
A
Alicia GloverAug 12, 2025
What to do if my wiwa GX Paint Sprayer pump is running but the spray pressure is not achieved?
- C
  Catherine HoganAug 12, 2025
  If your wiwa Paint Sprayer pump is running smoothly, but you are not achieving the required spray pressure, consider these potential causes: * The air pressure might be too low or there is too little air. Increase the air pressure on the compressed air regulator or check the air line for the correct cross-section. * The spray nozzle might be too large. Insert a smaller nozzle or use a larger pump. * The spray nozzle might be worn. Insert a new nozzle.
M
monica01Aug 20, 2025
What to do if my wiwa GX pump conveys material, but doesn't stop when the spray gun is closed?
- A
  Angela MillerAug 20, 2025
  If the wiwa Paint Sprayer pump continues to convey material even after the spray gun is closed, it could be due to: * The ball in the bottom valve is stuck. Open the spray gun without the nozzle and the relief valve on the high-pressure filter. Gently move the bottom valve with a slight impact. Alternatively, unscrew the suction system and press the ball out from the bottom using a pin or screwdriver. * The bottom valve isn't closing properly. Unscrew the bottom valve and thoroughly clean the ball and the seat. * Some parts may need replacement.
J
James ThompsonNov 26, 2025
Why does my wiwa GX pump not run consistently and not reach the required spray pressure?
- K
  Keith GlassNov 26, 2025
  If your wiwa Paint Sprayer pump isn't running consistently, and you notice variations in stroke speed, and it's not reaching the required spray pressure, check the following: * The viscosity of the spraying material may be too high. Dilute the spray material. * The suction system may be leaking. Check the seals on all threaded connections of the suction tube and the suction hose, and replace them if necessary. * The bottom valve may be leaking. Unscrew the bottom valve and clean the ball and the seat thoroughly; replace the ball or valve seat if needed. * The piston valve may be leaking. Clean and check the ball and seat in the double piston; replace the valve seat as required. * The lower or upper packing may be leaking due to wear. Replace the sleeve sets. * The packings may...

Summary

1 Foreword

2 Safety

2.1 Explanation of symbols

Explains safety symbols and general warnings, including working pressure guidelines.

2.2 Safety information

Provides general safety warnings, specific hazards like spray jet risks, and electrostatic charging.

2.3 Information signs on the machine

Details the meaning and importance of safety signs and labels on the machine.

2.4 Safety features

Describes the machine's safety features like valves and grounding.

2.5 Operating and maintenance personnel

Outlines responsibilities, qualifications, and PPE for personnel.

2.6 Guarantee information

Covers warranty terms, spare parts, and accessory usage.

2.7 Behaviour in an emergency

Provides instructions for shutting down, relieving pressure, and handling leaks or injuries.

3 Machine description

3.1 Intended use

Defines the specified applications and usage for the airless spraying devices.

3.2 Erroneous use

Lists improper uses that will void the warranty and affect operation.

3.3 Machine design

Details the construction of the Hercules GX and Professional GX series.

3.4 Maintenance unit

Explains the function and components of the maintenance unit.

3.5 Optional expansions and accessories

Overview of common accessories like spraying kits and heaters.

4 Transport, installation and assembly

4.1 Transport

Guidelines for safely transporting the machine, including lifting and securing.

4.2 Installation site

Requirements for positioning the machine, ensuring stability and safe operation.

4.3 Assembly

Procedures for assembling the machine, including installing the wall bracket and hoses.

5 Operation

5.1 Putting the machine into operation

Steps for initial setup, grounding, and flushing before use.

5.2 Spraying

Procedures for the spraying process, including pressure setting and technique.

5.3 Flushing

Instructions for flushing the machine during initial setup, material changes, or interruptions.

5.4 Operating the lift trolley

Guidance on operating the optional lift trolley.

5.5 Material change

Steps required for changing the material being sprayed.

5.6 Relieving the pressure

Safe procedure for releasing pressure from the machine system.

5.7 Work interruption

Instructions for handling short interruptions to work, including flushing.

5.8 Decommissioning

Procedures for longer-term decommissioning and preparing for restarts.

5.9 Storage

Guidelines for selecting a suitable location and temperature for storage.

5.10 Disposal

Instructions for the proper disposal of the machine and its residues.

6 Maintenance

6.1 Regular testing

Requirements for machine inspection and maintenance by specialists.

6.2 Maintenance schedule

Recommended maintenance tasks and time frames based on usage.

6.3 Water separator

Information on checking and cleaning the water separator.

6.4 High pressure pump

Details on checking release agent, filling, and filter maintenance.

6.5 Fog oiler

Instructions for checking and adjusting the fog oiler and its lubricant level.

6.6 Recommended operating fluids

Lists the approved operating fluids and their order numbers.

6.7 Special tool

Identifies the special tools included for maintenance and repair.

7 Trouble shooting

Fault

Lists common faults encountered during operation.

Possible cause

Explains the potential reasons behind the listed faults.

Elimination

Provides solutions and corrective actions for troubleshooting.

8 Technical information

8.1 Type plate

Information regarding the location and content of the machine's type plate.

8.2 QR code

Explanation of the QR code's function for accessing online support.

wiwa GX Series Specifications

General

Brand	wiwa
Model	GX Series
Category	Paint Sprayer
Language	English
