2.2 Distance between angle sensor and brewer spindle (magnet)

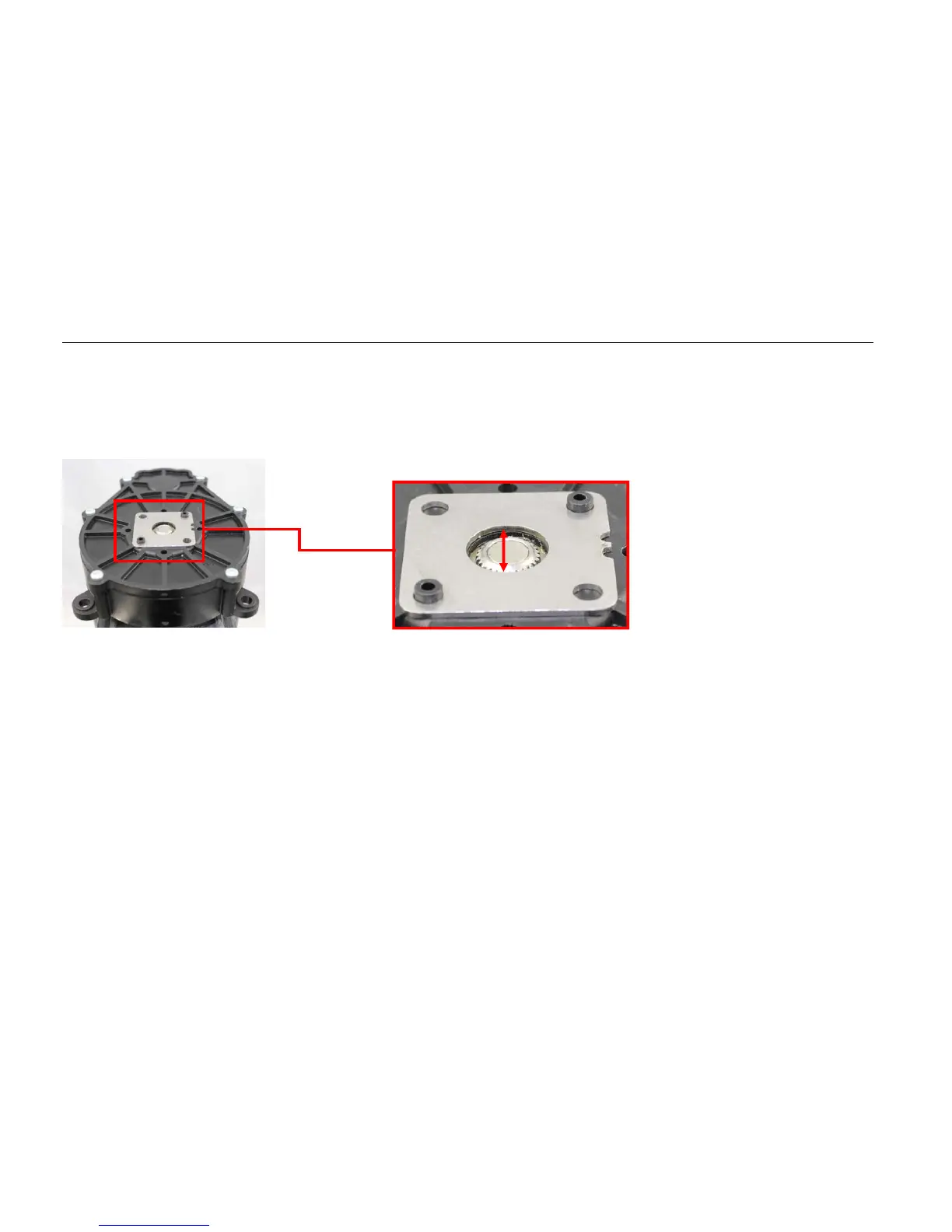

The "Brewer in place" status is detected by the angle sensor, which receives a signal from the magnet installed at the upper end of the brewer spindle.
The distance between the angle sensor and the magnet on the brewer spindle must be between 0.8 and 2.8 mm.
This distance is checked during commissioning in the factory. If it is too low, then spacers are installed to compensate for component tolerances.
Most machines have one spacer installed.
0.8 mm - 2.8
