Service 18
2.8 Power supply
The same power supply is used on the WMF 5000S as for the WMF 1500S.
The power supply converts an unstabilized input voltage into a stabilized DC voltage.
The power supply can be provided with a 115 V (with a jumper on J5) and a 230 V input voltage and delivers 5 V, 24, and 30 V output voltages
Once the machine is switched on using an On switch, the outgoing invoices are made available by the power supply.
In the event of an error, e.g. a surge current or short circuit, the power supply switches off.
->If the power supply detects more than one error, this can only be reset by disconnecting the machine from the mains for 5 minutes.

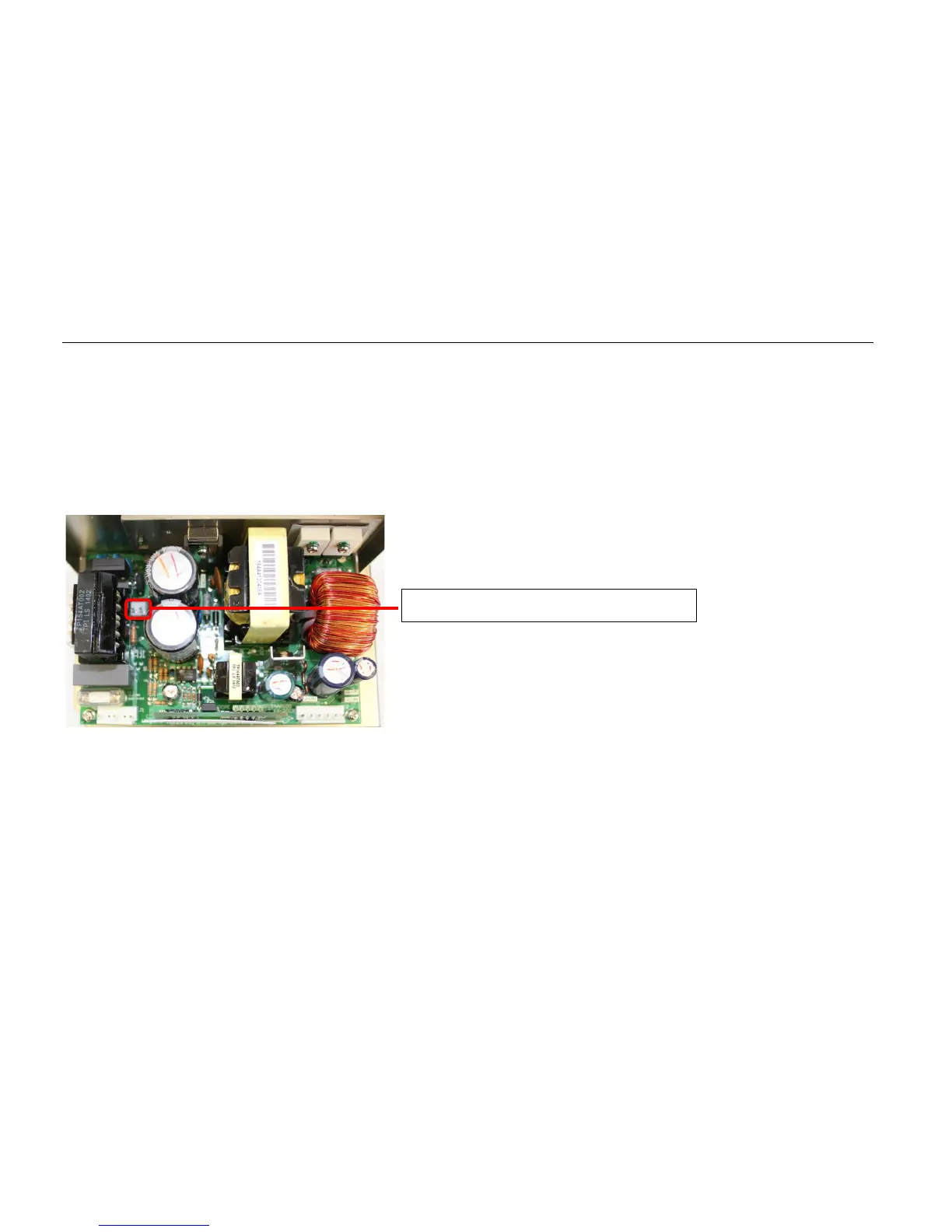

J5- Connect the jumper with an input voltage of 115V
