2.12 Grinders – grinding degree setting
Restore shipping condition:
If the grinder has been opened for cleaning, or for replacing a grinder disk, the shipping settings need to be restored afterward.
Shipping condition setting
1. Remove grinder housing (without motor)
2. Screw the grinder in place completely and clean it
3. Turn the top grinder disk to the blocked position by hand, using the gear ring

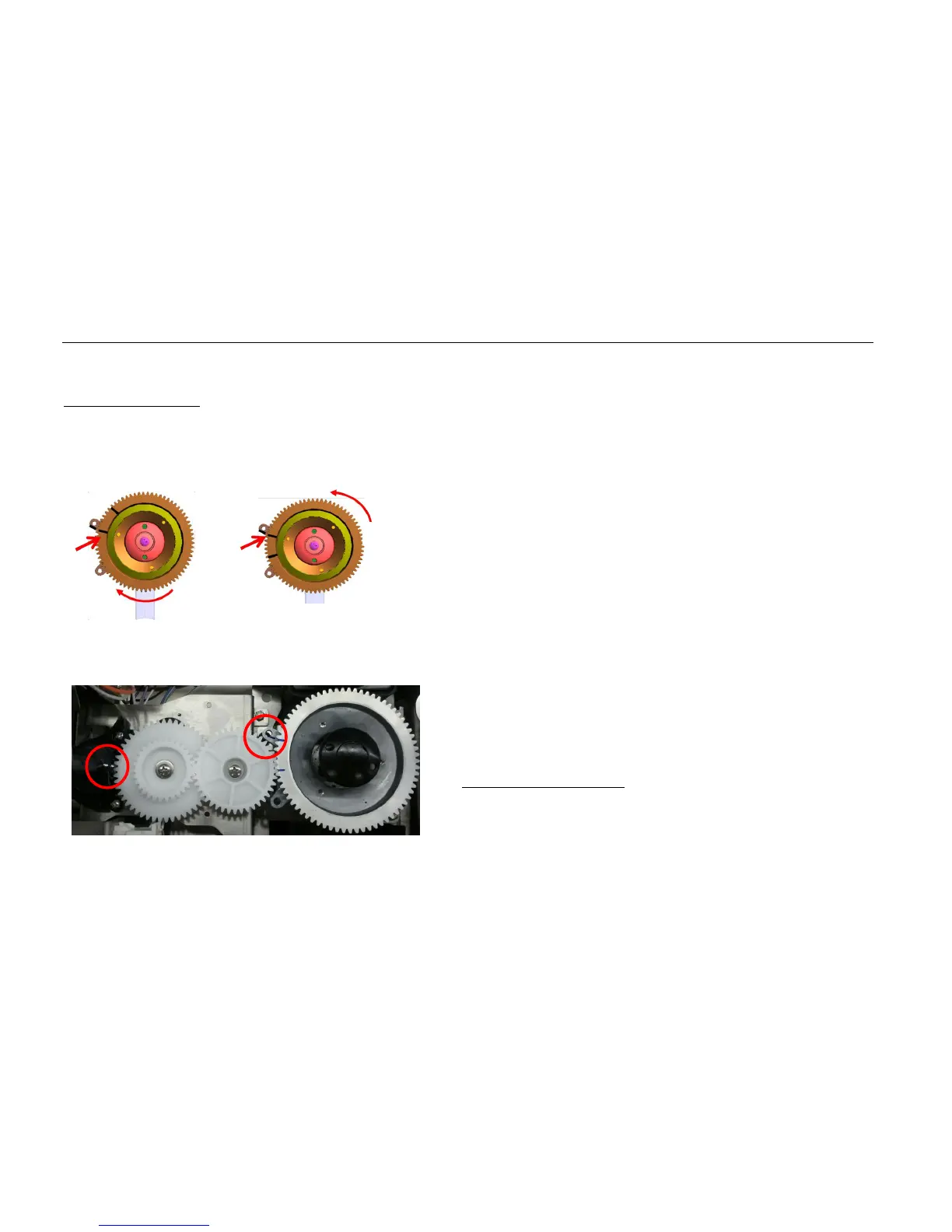

and make the first Mark, "Locked position", on the gear ring (see illustration 1)
4. Turn the top grinder opposite the 1
st
mark by 5 teeth, using the gear ring, and
make a second Mark, “Basic setting", on the gear ring (see illustration 2).
5. Turn the adjustment gearbox until the two white dots-–on the black housing of
the adjustment gearbox and its gear ring—are aligned to each other (see illustra-
tion 3)
6. Carefully place the grinder on the motor, and make sure of the following:
- that the gear ring on the grinder loosely engages with the teeth of the ad-
justment drive.
- that the gear ring of the top grinder disk is still at the 2nd mark.
(see illustration 3)
7. Attach the grinder.
Important note for technicians
Finally, adjust the grinding degree again to match the customer-specified type of
bean and beverage
See Attachment: WMF espresso - basic setting beverages
