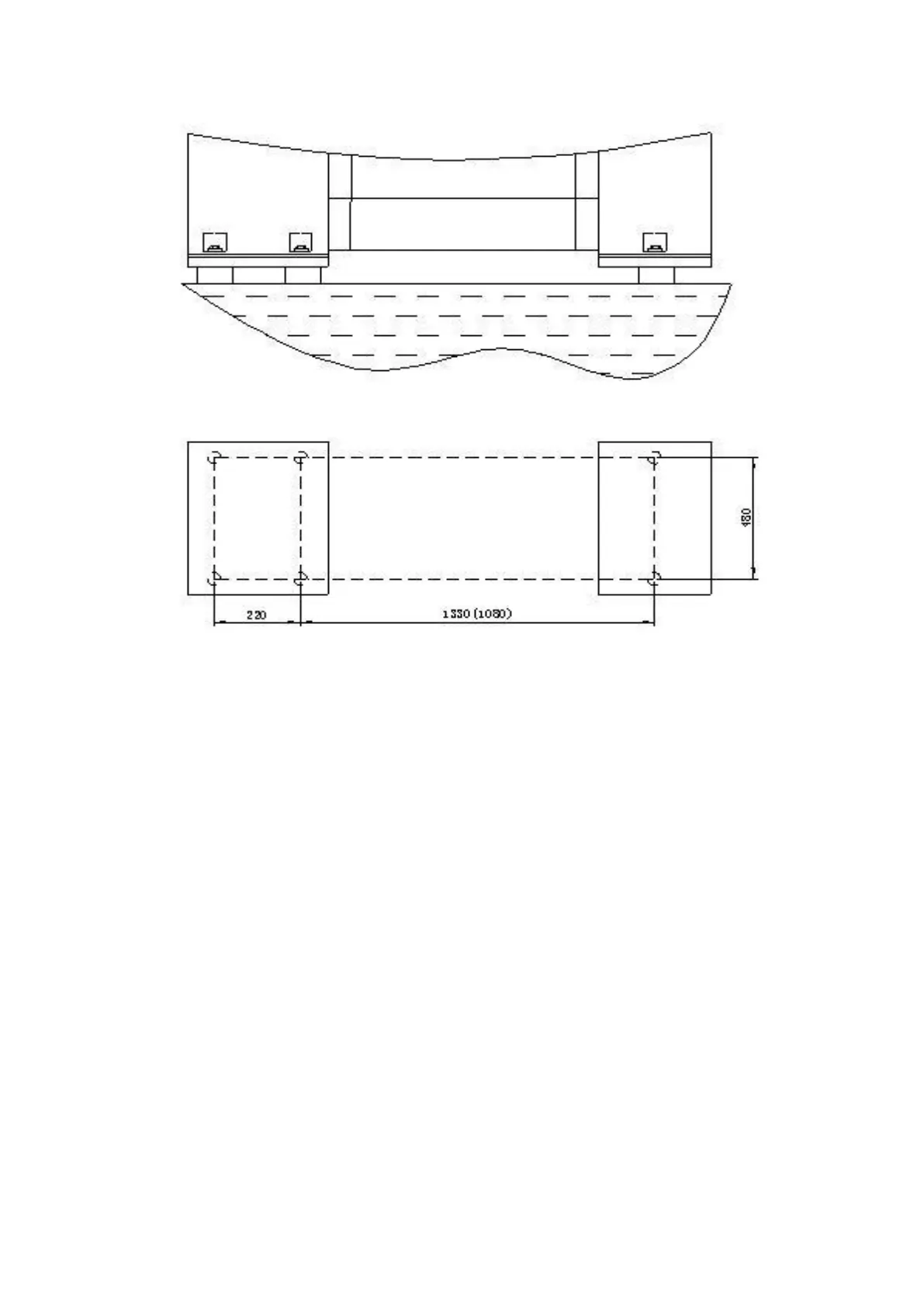

FIGGURE5
：
INSTALLATION
Before operating on the lathe, in order to ensure the operation precise of
the machine tool, the linearity and the levelness of the track must be
adjusted
To adjust the transmission belt, you’ll adopt the way of moving the
motor brackets up and down to realize.
To adjust the saddle slide, you’ll have to loosen the locking screw to
adjust it clock wisely to the right position, then fasten the locking screw
again.
THE CLAMPON OF THE TAILSTOCK ON THE BED
The clampon of the tailstock on bed is to use the eccentric clamping
system which is fixed under the tailstock and between the bed track,
