WMT CK6132 - Main Parts Table

7
Min. setting unit :
Servo / stepper
（Z）cross
0.01 mm
（X）long.
0.005 mm
X/z Rapid speed
（Z）cross
7m / min.
（X）long.
4m / min.
Taper of tailstock quill
MT3
Max. range of tailstock quill
100mm
Motor power
3kw
(Z) motor
4NM
(X) motor
4NM
Packing size (mm)
1815/2120/2300X950X1680mm
Net weight
800kg/900kg / 1050kg
Optional accessories: 1. pneumatic chuck 2. hydraulic chuck 3. pneumatic
tailstock 4.spring fastener

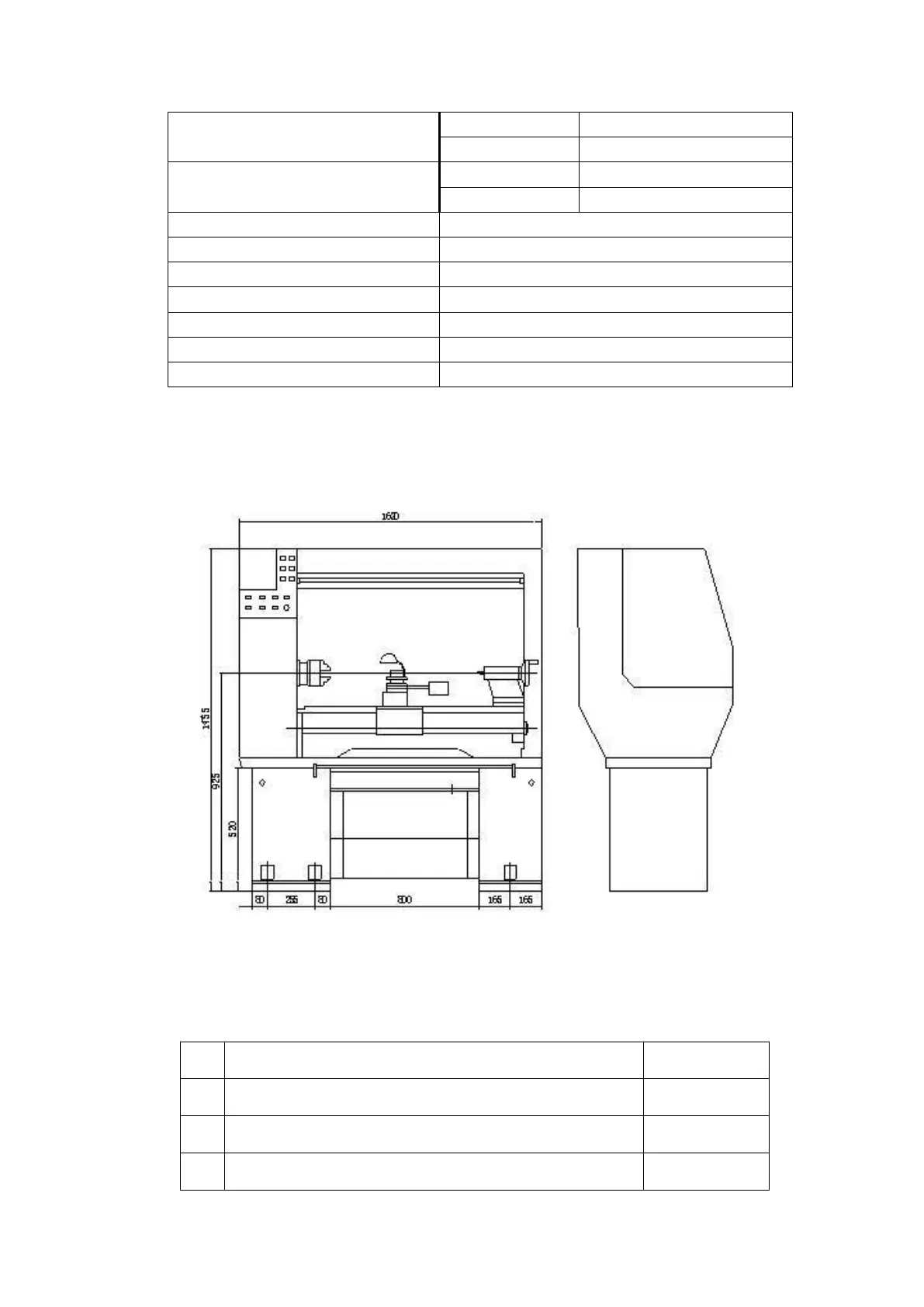

3. THE FIGURE OF THE LATHE (SEE FIGURE 1 ）
FIGGURE1：PROFILE
4. THE MAIN PARTS TABLE
NO
PART NAME
QUANTITY
1
BED
1
2
FOOT STAND
1
3
LATHE ENCLOSER
1
