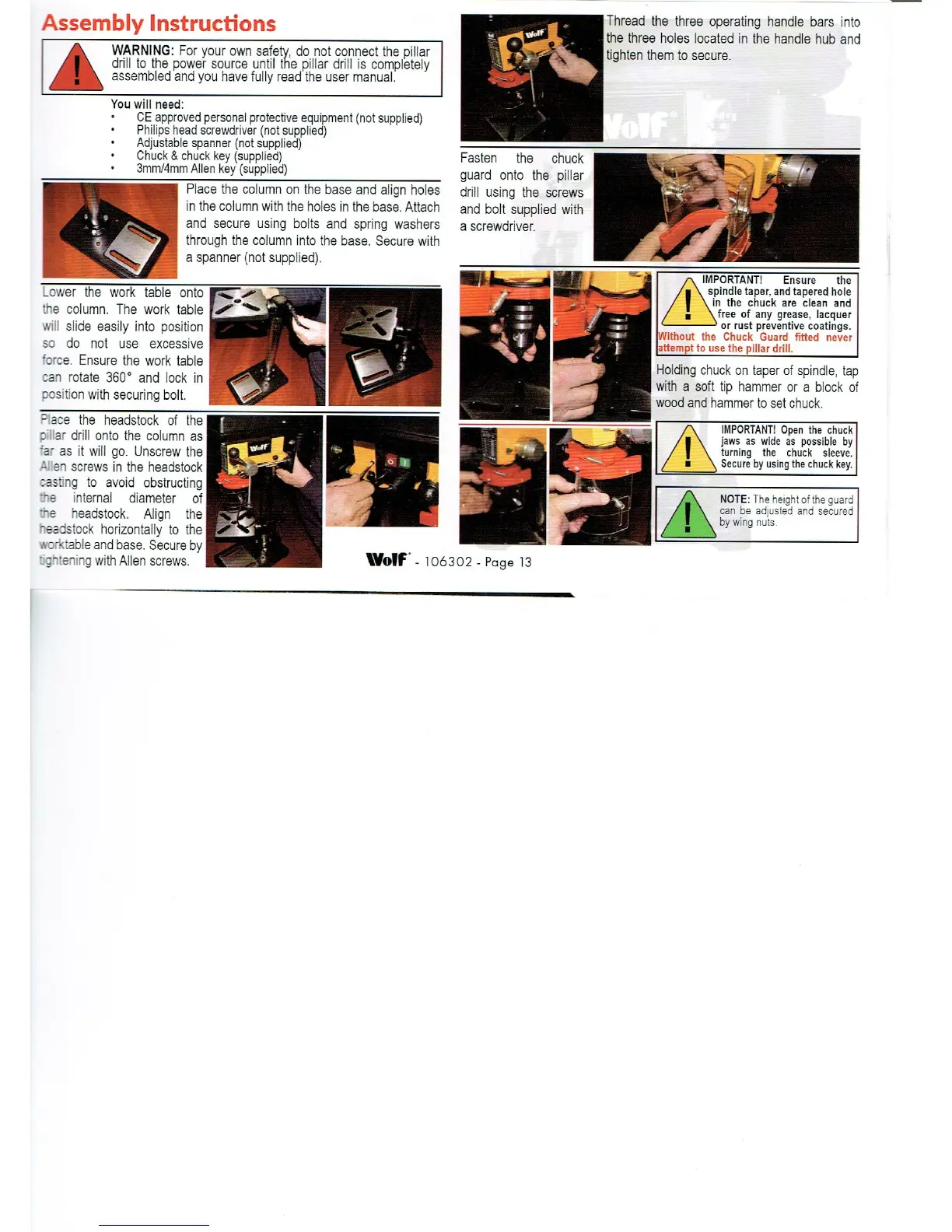

Wolf 106302 - Assembly Instructions

Assembly
Instructions
WARNING:
For
your
own safet
,
do not
connect
the
pillar
drill
to the
power
source until t e
pillar
drill is
completely
assembled
and
you
have
fully
read the
user manual.
You
will need:
-
CE
approved personal
protective equipment (not
supplied)
Philips
head screwdriver
(not supplied)
Adjustable spanner
(not supplied)
Chuck & chuck
key (supplied)
3mm/4mm Allen
key (supplied)
Place the column on the
base and
align
holes
in the column with the
holes in the
base. Attach
and secure
using
bolts and
spring
washers
through
the column
into the
base. Secure with
a
spanner
(not supplied).
-ower the work table
onto
‘-
the column. The
work table
(
\
.le
slide
easily
into
position
do not use
excessive
‘:rce.
Ensure the work table
can
rotate
360° and lock in
position
with
securing
bolt.
e the
headstock of the
ar drill
onto the
column as
'a'
as it will
go.
Unscrew the
i
an
screws in the headstock
rig
to
avoid
obstructing
internal
diameter ol
headstock.
Align
the
stock
horizontally
to the
'<:able and
base.
Secure
by
mg
with Allen
screws.
Thread
the three
operating
handle
bars into
the
three holes located in
the handle
hub and
tighten
them to secure.
Fasten
the chuck
guard
onto the
pillar
drill
using
the screws
and bolt
supplied
with
a screwdriver.
IMPORTANT!
Ensure the
spindle
taper,andtapered
hole
in the chuck are clean
and
free of
any grease,
lacquer
or
rust
preventive coatings.
ithout the Chuck Guard
fitted never
attempt
to use
the
pillar
drill.
Holding
chuck on
taper
of
spindle. tap
with a soft
tip
hammer or
a block of
wood and
hammer to set chuck.
lMFORTANT!
Open
the
chuck
laws
as
wide as
possible
by
turning
the chuck
sleeve.
Secure
by using
the
chuck
key.
NOTE: The
height
otthe
guard
can be
adyusted
and
secured
by Wing
nuts
Wolf—106302
.
Page
l3
