CSO24 and CSO30 (SWS #13508346)
Component Removal
4-10
#9001333 - Revision A - August, 2014
Cooking Space (Cavity) Temperature Sensor
To remove the cooking space temperature sensor, the
top and back panel will need to be removed first, then
(See Figure 4-22):
1. Disconnect sensor’s electrical leads from main con-
trol board at the back of appliance.
2. Extract sensor mounting screw from back of the
appliance, just above the hot air (convection) fan
motor and pull sensor from cooking space.
Hot Air (Convection) Motor Assembly Removal
To remove the hot air motor assembly, first remove the
top and back panel, rack guides, hot air cover, hot air fan
blade, as well as the washer and tab washer behind the
fan blade, then (See Figure 4-23):
1. Disconnect electrical leads from motor.
2. Extract hot air motor assembly mounting screws and
pull assembly from back of appliance.
Power Cord Removal
To remove the power cord, the top and back panel will
need to be removed first, then (See Figure 4-24):
1. Disconnect power cord’s electrical leads from main
control board at the back left of appliance.
2. Where cord exits chassis, squeeze strain relief bush-
ing while pushing it down out of the hole.

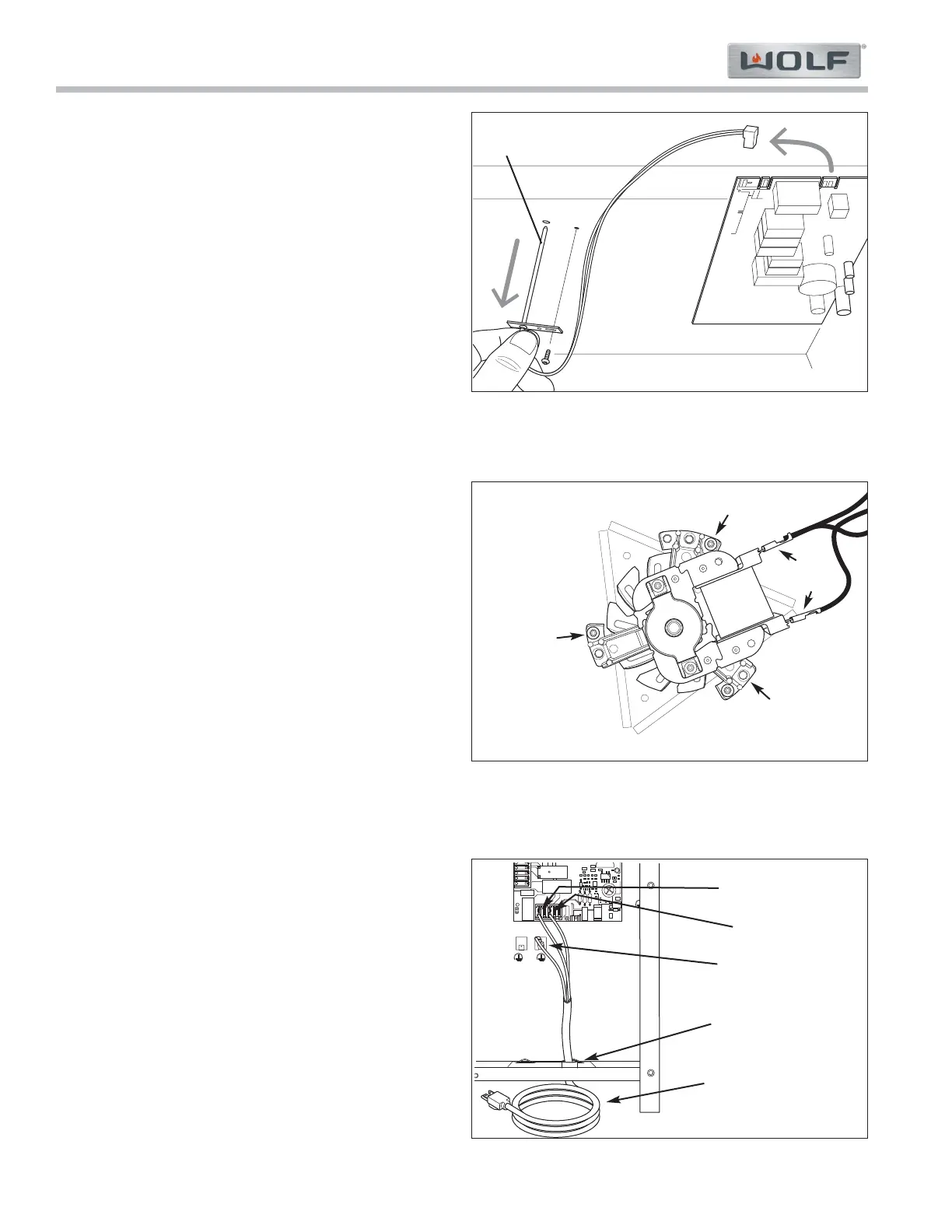

4-22. Cooking Space Temperature Sensor Removal
4-23. Hot Air Fan Motor Removal
4-24.
Electrical
Leads
Screw
Screw
Screw
L1
Neutral
Ground
Strain Relief Bushing
Power Cord
Main Control
Board
Temperature
Sensor
To Next Page
