CSO24 and CSO30 (SWS #13508346)
Component Removal
4-12
#9001333 - Revision A - August, 2014
Food Probe Socket Assembly
To remove the food probe socket assembly, the top and
back panel will need to be removed first, then (See
Figure 4-28):
1. Using a tin-snips or similar tool cut the metal bridge
at the four corners of the perforated probe socket
cover.
2. If foil insulation is present, use a knife to carefully cut
the foil covered insulation along the edges of the
opening and pull the insulation out.
3. Disconnect all electrical leads from back of probe
socket.
4. Inside the cavity open the door of probe assembly
and hold the nut around the probe socket stem.
5. While holding the nut around the probe socket stem,
rotate back of probe socket counterclockwise until
nut around the probe socket stem inside cavity is
removed, then lift socket from hole.

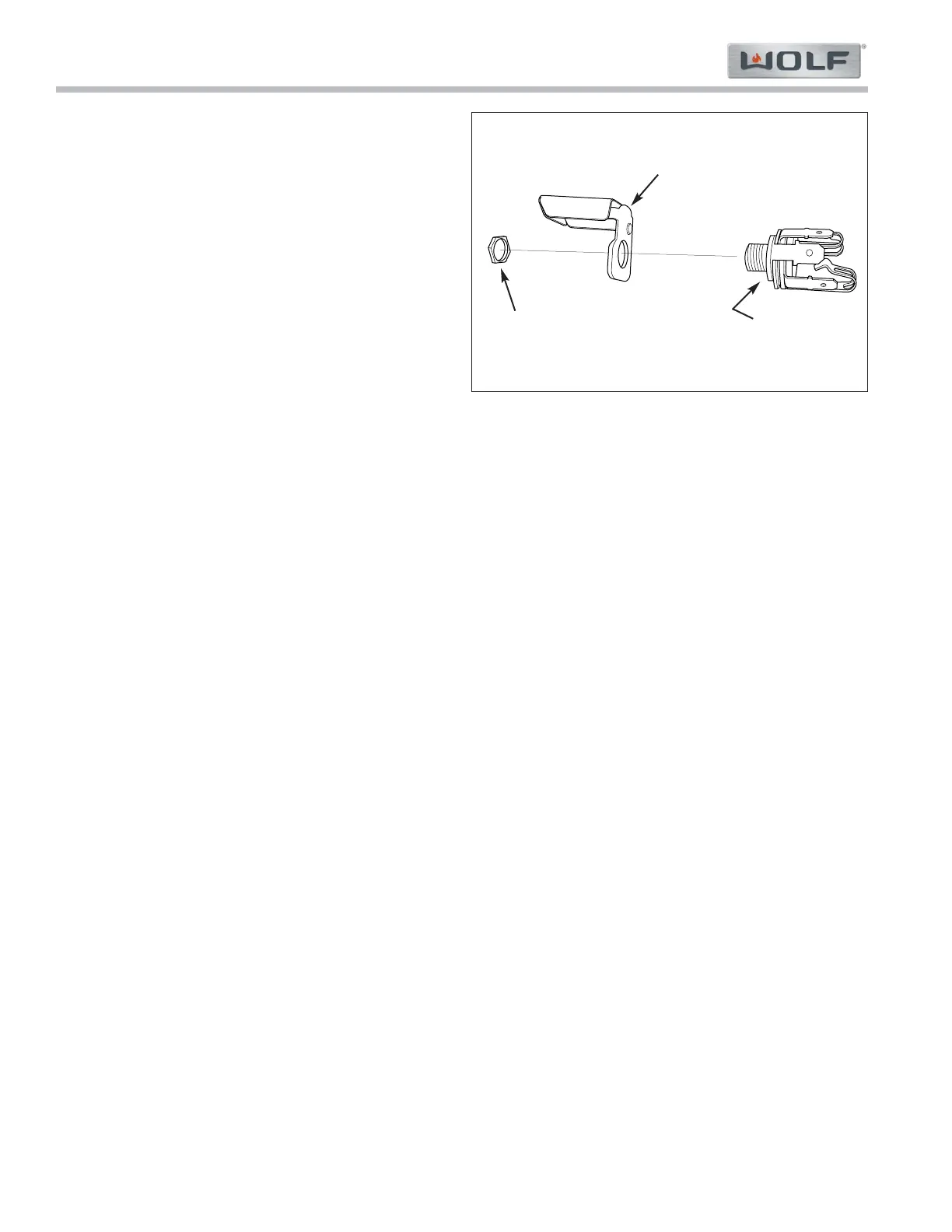

4-28.
Probe Socket
(on outside wall
of cooking
space)
Probe Assembly Door
(inside cooking space)
Nut (inside cooking space)
