Operation via the control unit
08 | WOLF GmbH 3064461_201903

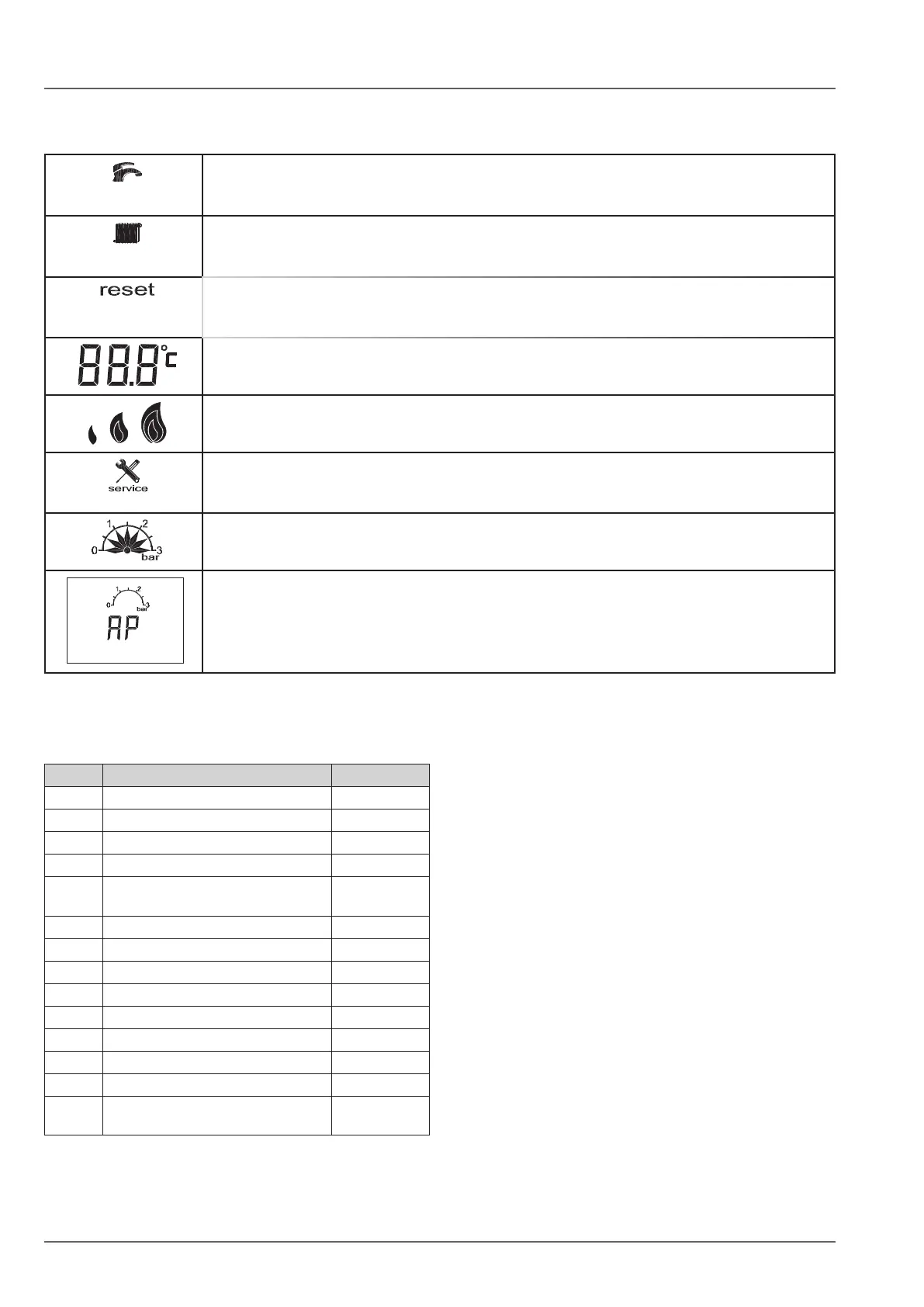

Display menu Reset
Display
DHW mode
(A ashing symbol indicates an active heat demand for DHW heating.)
Only shown if DHW heating is available.
Heating mode
(A flashing symbol indicates an active heat demand for heating operation.)
Changes are only possible if the heating curve is disabled.
Shown when there are active fault codes.
Reset button (press 1x briey).
Fault codes are reset.
Display of temperature, fault codes, HG parameters and set values. In emissions test mode,
the modulation level is displayed.
Burner modulating levels
Service
- Emissions test mode enabled.
- Fault is displayed.
Indication of water pressure in the heating system.
Venting program
When switching on the mains power, following a power failure, if the water pressure is below
0.5 bar or if the high limit safety cut-out is reset, the venting program runs for 2 minutes.
The gas fan runs for the rst 30 s and then stops. The pump and 3-way diverter valve are
activated alternately. To cancel, press “reset”.
A fault in the heating system is indicated by a fault code
and the ashing service symbol.
The specialist contractor can quickly identify the fault
via the reset button and with the help of a fault code
table.
− In the event of a fault, please observe the
information in the installation instructions for
contractors.
− If a fault occurs in your heating system, please
contact your specialist contractor.
Please note:
Faultsmustonlyberepairedbyqualiedpersonnel.
If a lockout fault message is acknowledged sev-
eral times without the cause of the problem being
repaired, this can lead to component or system
damage.
The control unit automatically acknowledges faults such
as faulty temperature sensors or other sensors if the
part concerned has been replaced and plausible test
values have been supplied.
Name Description Display in
i00
1)
Flow sensor temperature (°C)
i01 Flow temperature (°C)
i02 Return sensor temperature (°C)
i03 DHW sensor temperature (°C)
i04 DHW solar inlet / DHW cylinder
temperature
(°C)
i05 Flue gas sensor temperature (°C)
i06 Outside temperature (°C)
i07 Fan speed (rpm x 60)
i08 PWM pump speed (%)
i09 DHW ow rate (l / min)
i10 Actual water pressure bar
i11 High limit safety cut-out ON and OFF
i12 Flame current (µA x 10)
i13 Firmware version Version
x.xx
1)
from FW 1.10
