Wolf GR Series - Rough-in Installation Specifications; 30-Inch Range Specifications

Gas Range (GR) Series
Gas Range (GR) Series
Installation Information
2-4
#822634 - Revision A - January, 2013

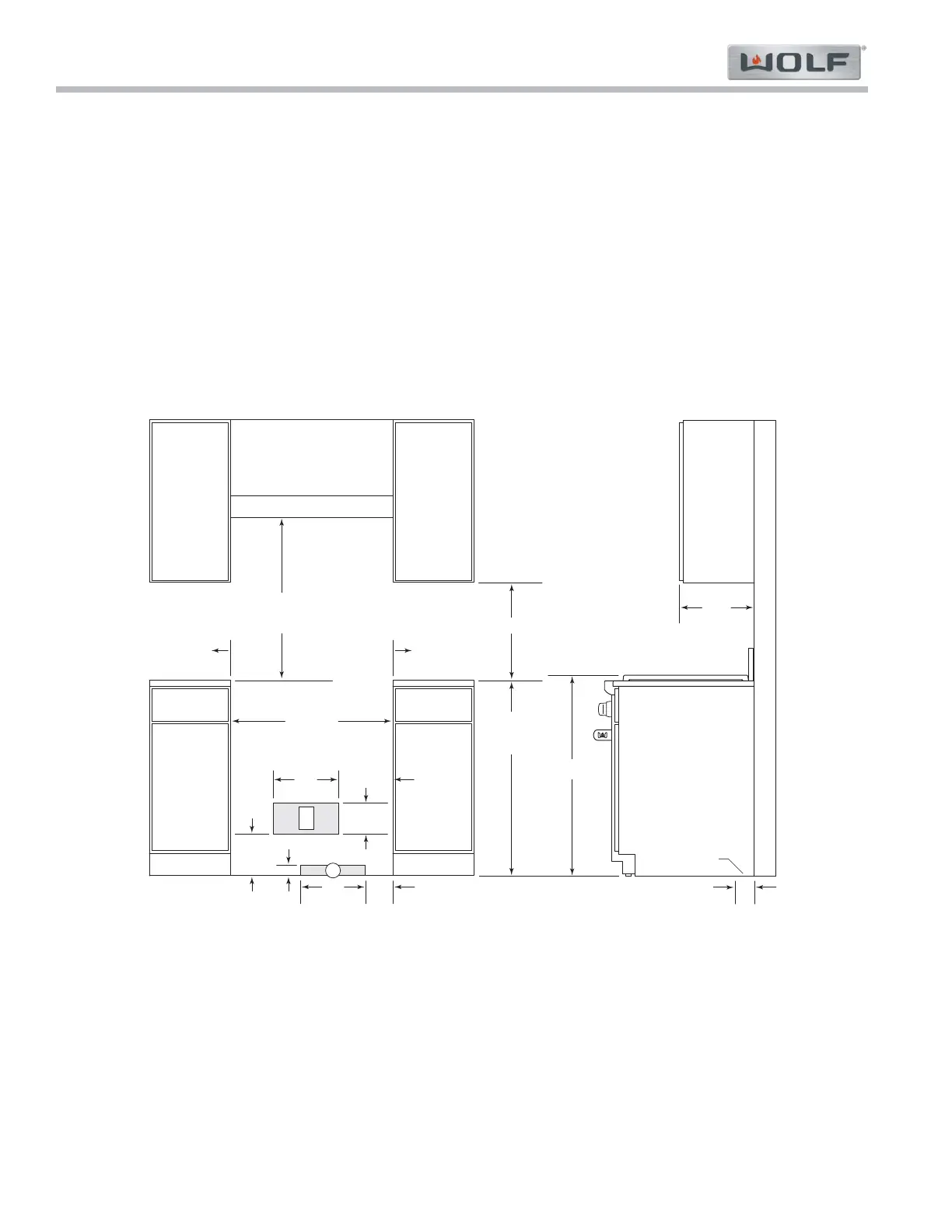

30" (762) Gas Range
INSTALLATION
30" (762)
OPENING WIDTH
30" (762) TO 36" (914)
TO BOTTOM OF
VENTILATION HOOD**
*Min clearance from rough opening to combustible materials up to 18" (457) above countertop.
**42"
(1067) min clearance from countertop to combustible materials without ventilation hood.
NOTE: For island installations, 12"
(305) min clearance from back of range to combustible rear wall above countertop.
6" (152) TO
COMBUSTIBLE*
6" (152) TO
COMBUSTIBLE*
18" (457) min
36" (914)
FLOOR TO
COUNTERTOP
12"
(305)
5"
(127)
G
2" (51)
7
3
/4"
(197)
5
3
/4"
(146)
37" (940)
13" (330)
max
3"
(76)
LOCATION OF GAS AND
ELECTRICAL EXTENDS
ON FLOOR
SIDE
CABINET
E
12"
(305)
10" (254)
Rough-in Installation Specifications
