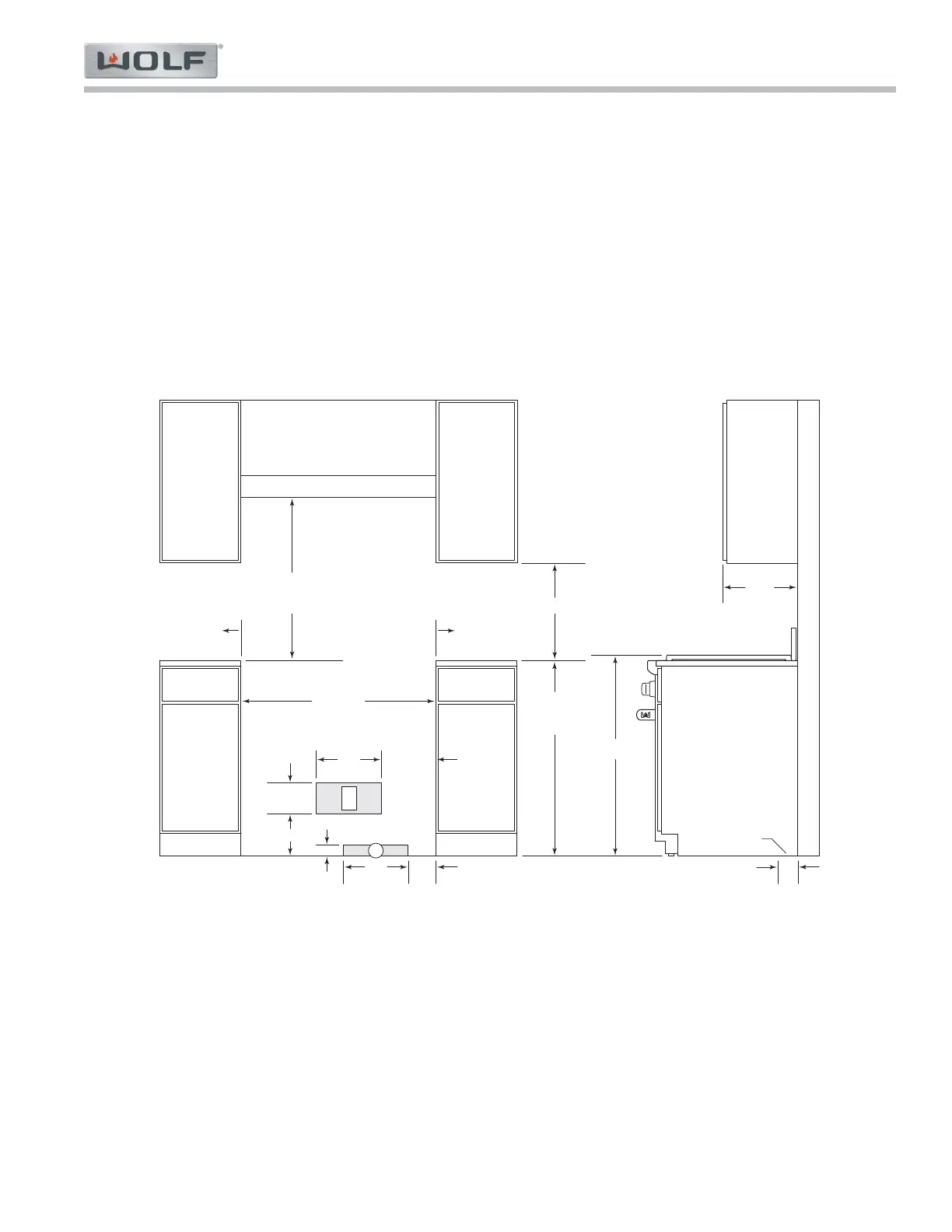

36" (914) Gas Range
INSTALLATION
36" (914)
OPENING WIDTH
30" (762) TO 36" (914)
TO BOTTOM OF
VENTILATION HOOD
**
*Min clearance from rough opening to combustible materials up to 18" (457) above countertop.
**42"
(1067) min clearance from countertop to combustible materials without ventilation hood. Charbroiler model requires non-combustible material
above range if installed without ventilation hood.
NOTE: For island installations, 12"
(305) min clearance from back of range to combustible rear wall above countertop.
6"
(152)
TO
COMBUSTIBLE
*
6"
(152)
TO
COMBUSTIBLE
*
18" (457) min
36" (914)
FLOOR TO
COUNTERTOP
12"
(305)
5"
(127)
G
2" (51)
13" (330)
max
3"
(76)
LOCATION OF GAS AND
ELECTRICAL EXTENDS
ON FLOOR
SIDE
CABINET
E
7
3
/4" (197)
5
3
/4"
(146)
12"
(305)
10" (254)
37" (940)
