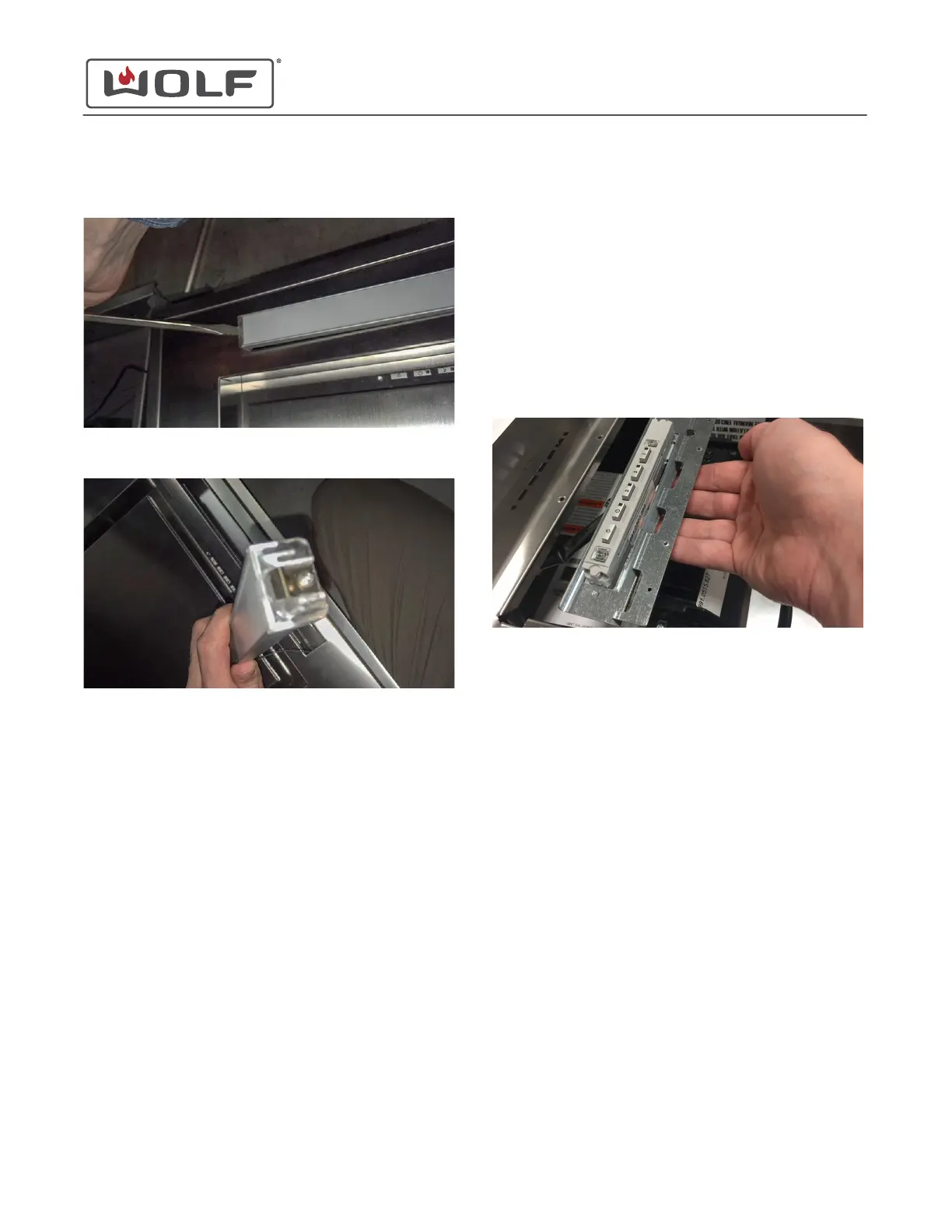

1 Use a flat-head screwdriver to pry the LED light assembly
away from the stainless steel panel.
2 Use a Phillips screwdriver to remove the diffuser sleeve
from the LED light assembly.
3 Pull the LED light wire harness far enough through the hole
to access the connector.
4 Disconnect the LED light wire harness.
5 Remove the LED light assembly from the unit.
LED LIGHT INSTALLATION (STAINLESS STEEL)
Install the LED Light Assembly (Stainless Steel)
1 Use a Phillips screwdriver to install the diffuser sleeve onto
the LED light.
2 Position the LED light assembly on the frame.
3 Connect the LED light wire harness.
TIP: The other end of the wire harness may be inside the frame
on the other side of the hole. It can be pulled through far
enough to access the connector.
4 Snap the LED light assembly into the frame.
CONTROL ASSEMBLY REMOVAL
Remove the Control Assembly
1 Use a Phillips screwdriver to remove the screws holding the
control assembly to the frame.
2 Use a flat-head screwdriver to remove the wire cover on the
rear of the control panel.
3 Disconnect the wire harness from the control panel.
4 Remove the control assembly from the unit.
CONTROL ASSEMBLY INSTALLATION
Install the Control Assembly
1 Connect the wire harness to the control panel.
2 Install the wire cover over the rear of the control panel.
3 Place the control assembly into the unit, so that the buttons
go through the holes in the frame.
4 Use a Phillips screwdriver to install the screws holding the
control assembly to the frame.
ACCESS THE AREA ABOVE THE EASY CUBE
The Easy Cube is located directly above the hood body. If there
is an internal blower, it is located inside the Easy Cube. The
power board assembly, light transformer, and hood electrical
components are mounted on top of the Easy Cube. To access
the area above the Easy Cube:
Note: The lower chimney should not be secured to the wall in
any manner. In instances where the lower chimney has been
secured, it is the customer’s responsibility to have the lower
chimney removed.
Wolf V-Series Cooktop Hoods Service Manual
REMOVE THE LED LIGHT ASSEMBLY (STAINLESS STEEL) (continued)
service.subzero.com
825309 REV. B
4
