COMPONENT ACCESS AND REMOVAL
This section explains how to access and remove components
from a Wolf Ceiling-Mounted Hood.
WARNING
To avoid electric shock, disconnect power to the
hood whenever servicing, accessing, or removing
components powered by electricity or components
near other electrical components. If removing a hood
from its installation, remember that the units are
heavy and must be lowered from the installation, and
may require two persons. Removing a unit from its
installation should be performed only by an
authorized service technician or installer.
CAUTION
When working on the hood or its components, be
careful when handling sheet metal parts. The edges
may be sharp.

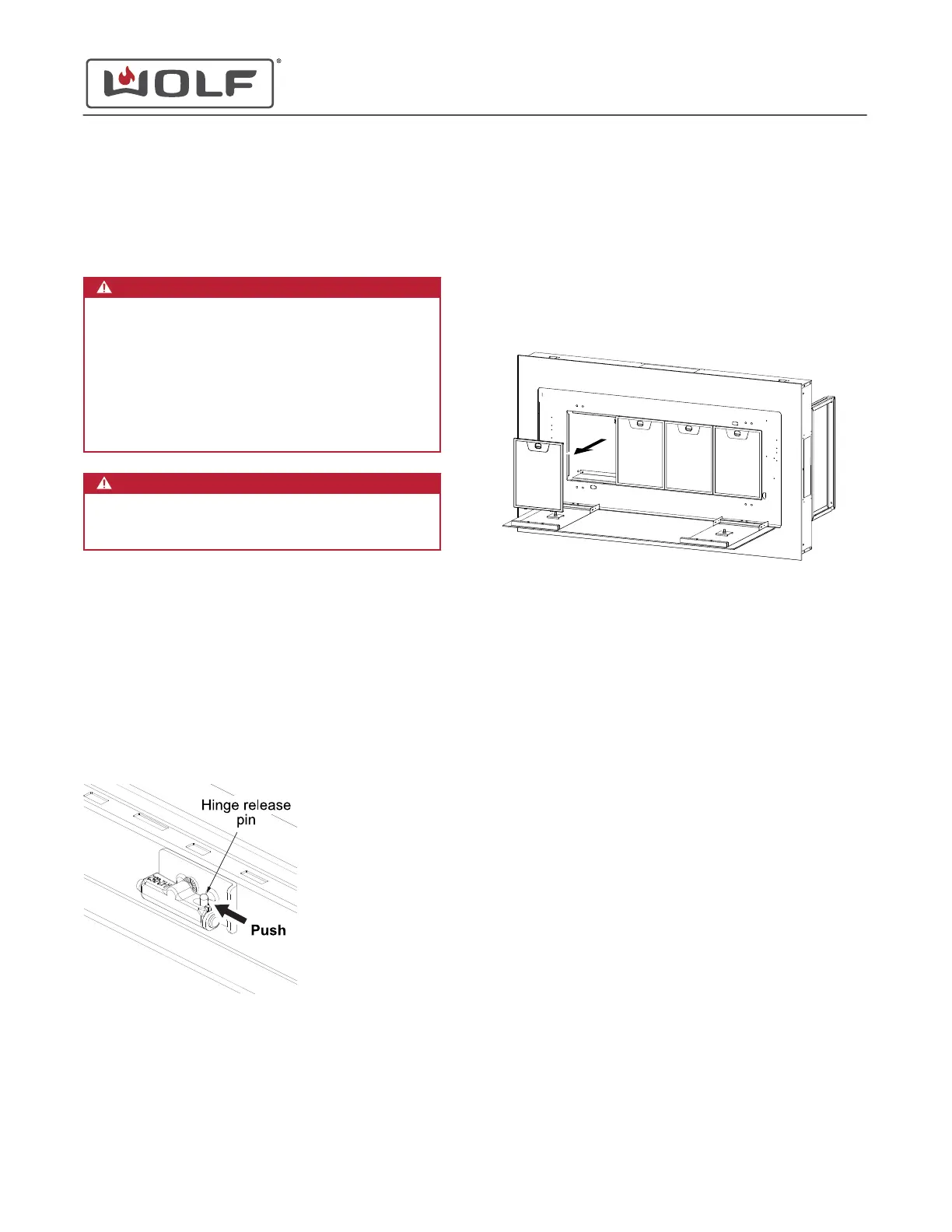

REMOVE THE FILTER COVER (BLACK HOODS)
Black hoods have a filter cover. The filter cover has a pin that
snaps into a receptacle on the hood side. Pull on the filter cover
to open it. Press the filter cover in to close it. To remove the
filter cover:
1 Open the filter cover to 90°. Press the hinge release pin
toward the center of the hood. Disengage the filter cover
from the hinge.
2 Slide the filter cover to the right, and disengage the pin from
the other hinge.
FILTER REMOVAL
Remove the Filter
1 Push the plastic tab on the front end of the filter toward the
rear of the hood, and gently pull down.
2 Pull the filter forward, and remove it.
FILTER INSTALLATION
Install the Filter
1 Set the filter in the filter opening, bottom first.
2 Rotate the filter upward into place.
LED LIGHT REMOVAL (STAINLESS STEEL)
Remove the LED Light Assembly (Stainless Steel)
Hood lights are LED fixtures that must be replaced as
assemblies.
