1 Remove the two screws at the bottom of the lower chimney.
Raise and block the lower chimney up on island hoods, and
remove the lower chimney on wall hoods.
2 The Easy Cube has the control board mounted on the front
edge, and unit electrical components are mounted on the
rear edge.

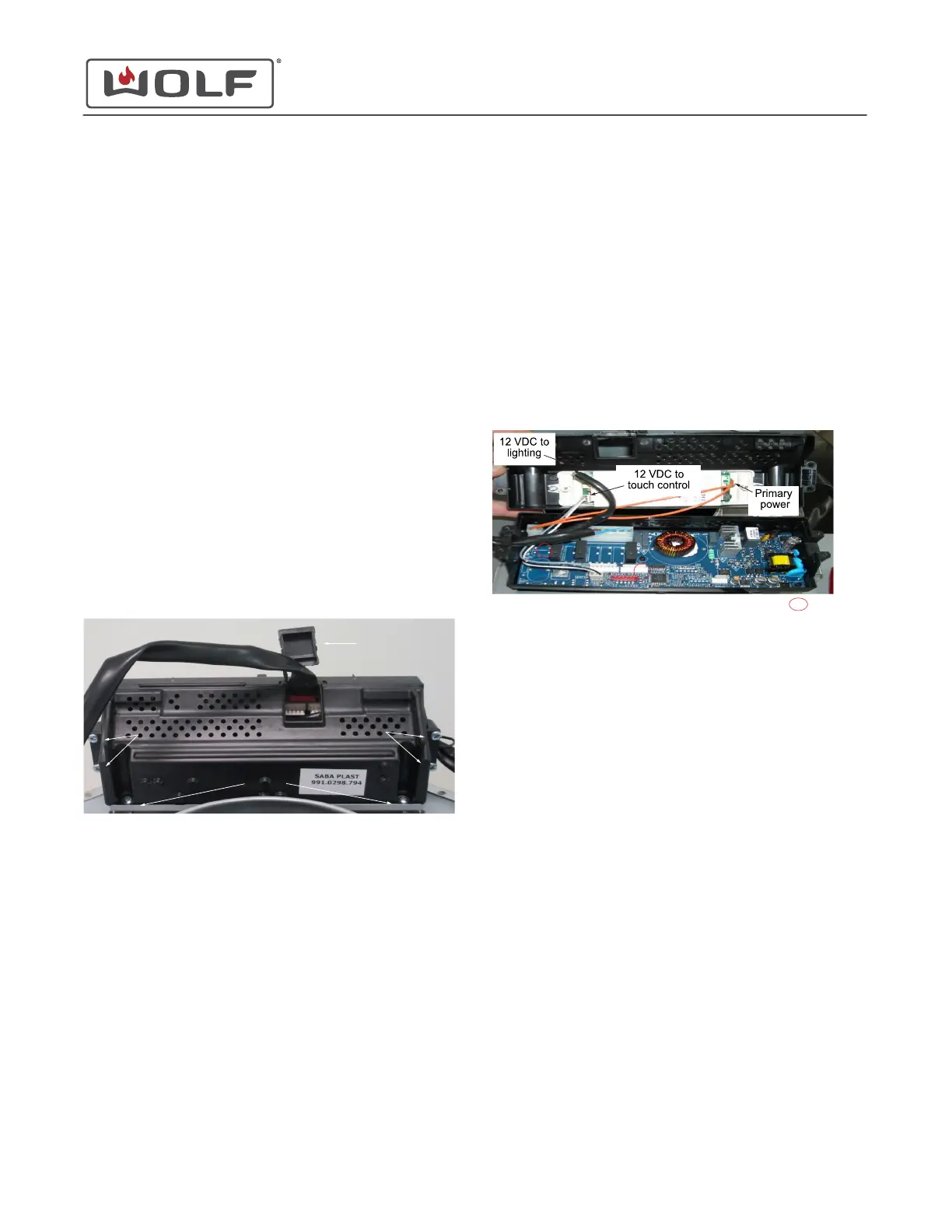

POWER BOARD ASSEMBLY REMOVAL
Remove the Power Board Assembly
1 Open the ribbon cable cover of the power board assembly
with a flat-blade screwdriver, and disconnect the ribbon
cable.
2 Remove the two screws holding the power board assembly
case to the unit.
3 Remove the four screws holding the power board assembly
case together.
4 Inside the power board assembly case, disconnect the wire
harnesses from the power board assembly.
5 Remove the power board assembly from the unit.
Hold-Down
Screws
Case
Screws
Ribbon Cable
Cover
Case
Screws
POWER BOARD ASSEMBLY INSTALLATION
Install the Power Board Assembly
1 Connect the wire harnesses to the power board assembly.
2 Install the four screws holding the power board assembly
case together.
3 Install the two screws holding the power board assembly
case to the unit.
4 Connect the ribbon cable, and close the ribbon cable cover.
TRANSFORMER REMOVAL
Remove the Transformer
1 Disconnect the wire harnesses and wire connectors from
the transformer.
2 Remove the two screws holding the transformer to the
power board assembly case.
3 Remove the transformer from the power board assembly
case.
TRANSFORMER INSTALLATION
Install the Transformer
1 Insert the transformer into the power board assembly case.
2 Install the two screws holding the transformer to the power
board assembly case.
3 Connect the wire harnesses and wire connectors to the
transformer.
INNER PANEL MAGNET REMOVAL
Remove the Inner Panel Magnet
1 Use a
3
/
16
" combination wrench underneath the inner panel
magnet bracket to hold the magnet anchor.
