Wolf V Series - Inner Panel Magnet Installation; Inner Panel Removal; Inner Panel Installation; Inner Panel Hinge Removal

2 Turn the magnet counterclockwise to remove it.
INNER PANEL MAGNET INSTALLATION

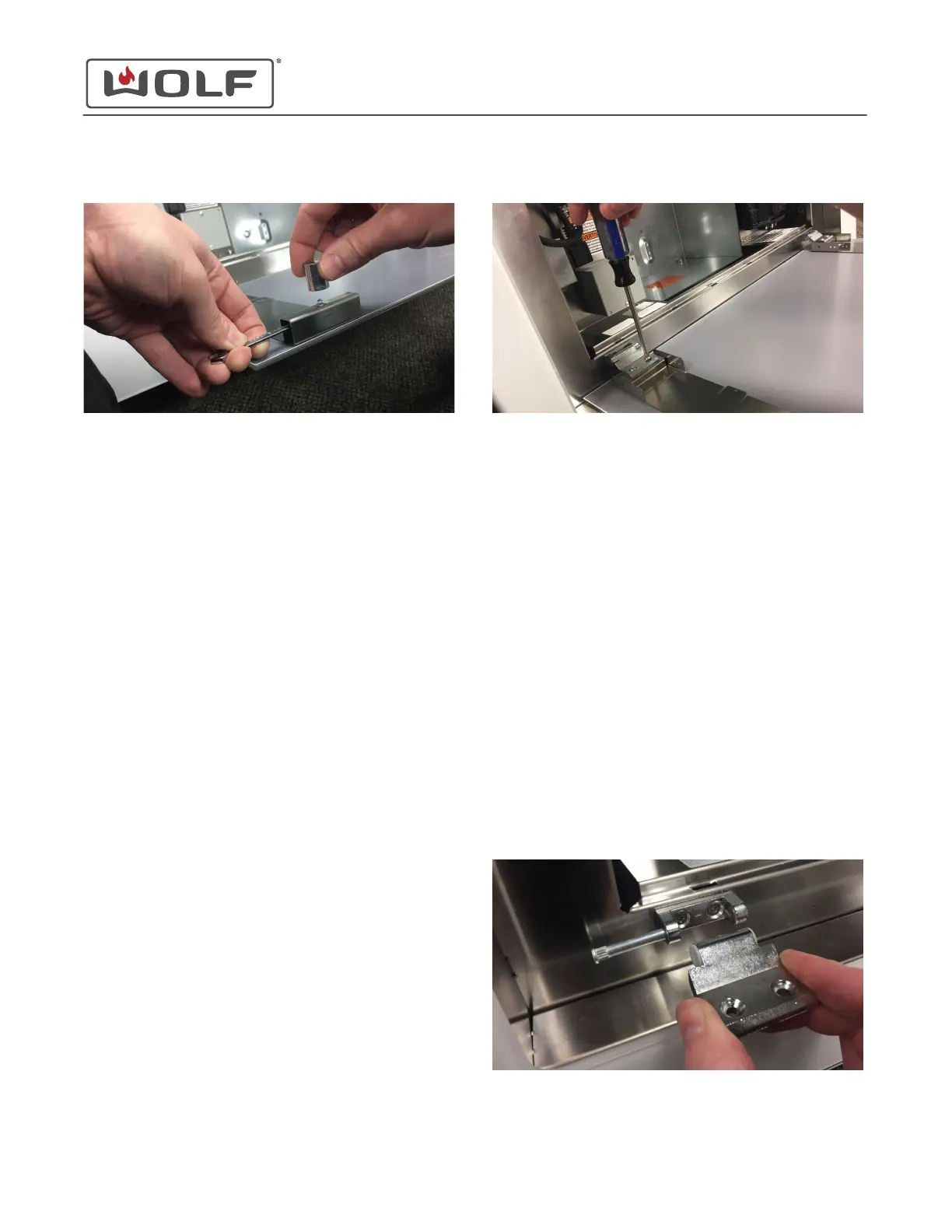

Install the Inner Panel Magnet
1 Place the magnet anchor under the inner panel magnet
bracket.
2 Use a
3
/
16
" combination wrench to hold the magnet anchor
from underneath.
3 Turn the magnet clockwise to install it.
INNER PANEL REMOVAL
Remove the Inner Panel
1 Pull on the magnet side of the inner panel to open it and
access the inner panel hinges.
2 Use a Phillips screwdriver to remove the inner panel hinge
screws.
TIP: Support the inner panel from underneath while removing
the inner panel hinge screws.
3
Remove the inner panel from the unit.
INNER PANEL INSTALLATION
Install the Inner Panel
1 Place the inner panel over the hinges.
2 Use a Phillips screwdriver to install the inner panel hinge
screws.
INNER PANEL HINGE REMOVAL
Remove the Inner Panel Hinge
1 Remove the central pin of the inner panel hinge.
2 Remove the inner panel hinge leaf from the unit.
3 Use a Phillips screwdriver to remove the countersunk
screws that hold the inner panel hinge to the frame.
4 Remove the frame hinge leaf from the unit.
