Floor Mount System
The floor mount system allows the controller and the printhead to be
mounted on to a separate stand.
Parallelogram
Many products and packaging materials (example, wrapping) are slightly
uneven/cambered or are transported on the conveyor belt in a range of
different positions.
In these cases the parallelogram should be used. This makes sure of a
constant optimum print result for such applications.

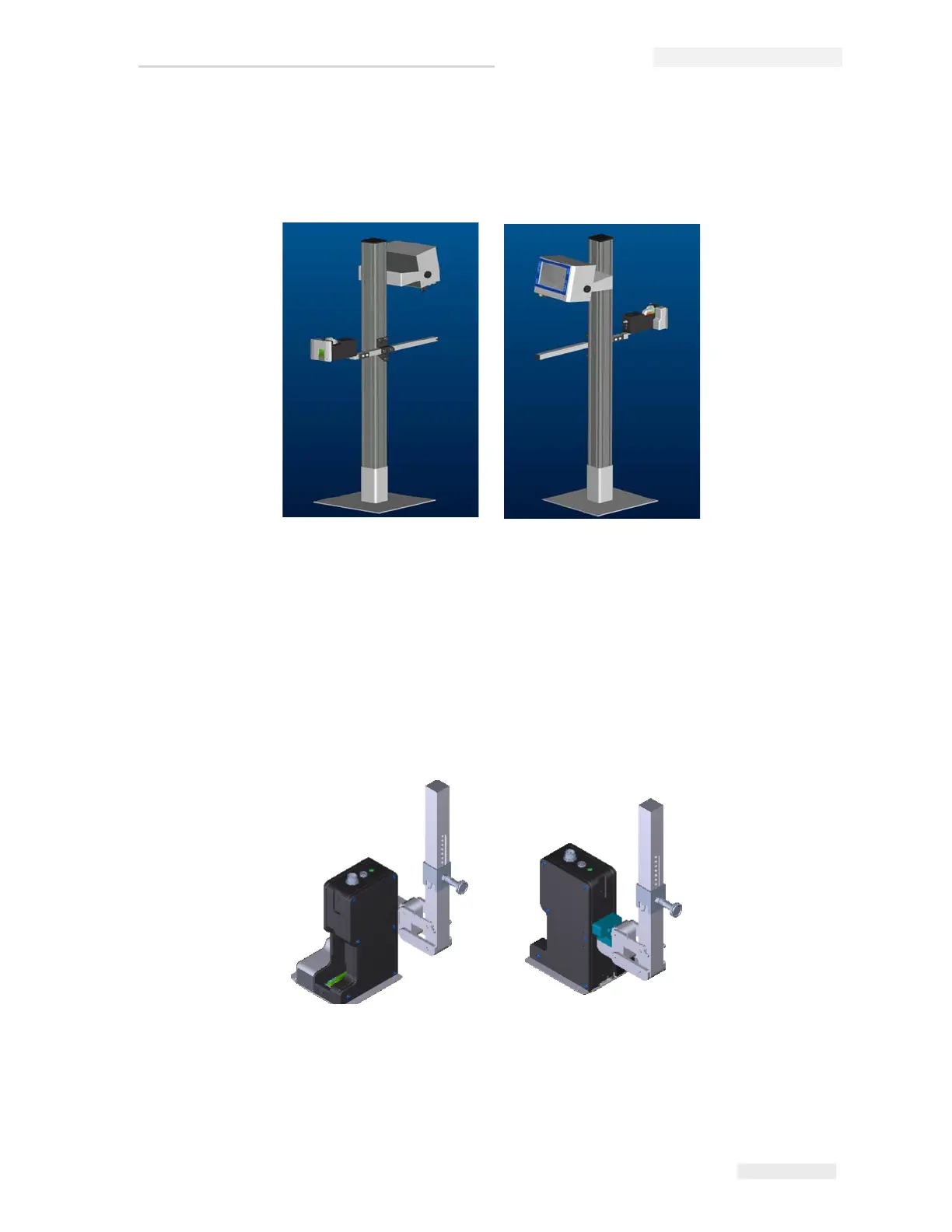

Figure 3-18: Floor Mount System
Figure 3-19: Parallelogram
Option 1
Option 2
