Assembly Instructions (continued)
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

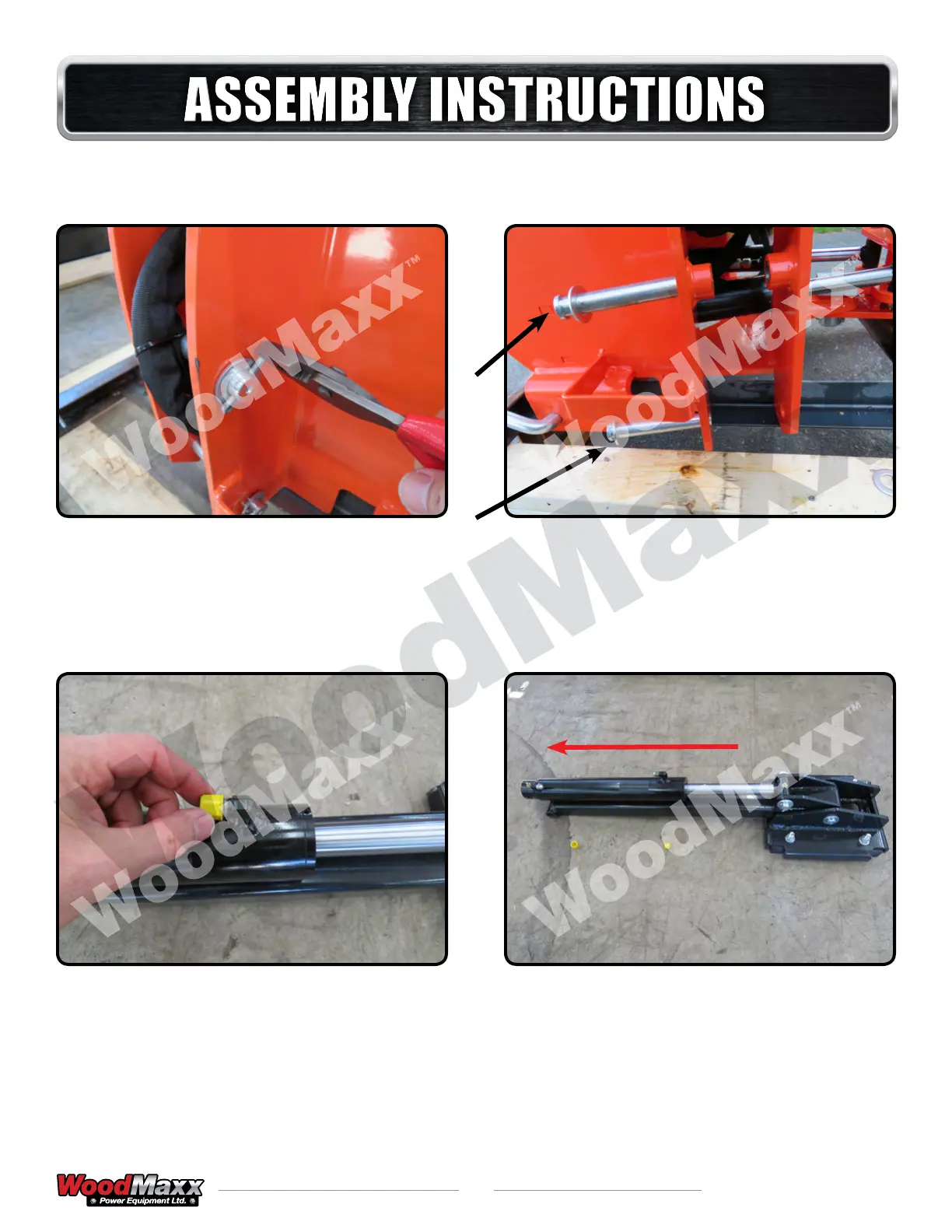

Prepare to install the support legs by removing
the two pins on either side of the base frame.
(pliers required to remove the cotter pins)
Pull the pins back until they are supported as
shown.
Remove the protective cap from the support
leg hydraulic cylinder hosettings.
Expand the hydraulic cylinder as shown.
This can be accomplished by standing on
the support foot and pulling upward on the
cylinder. Air and some residual oil will escape
from the cylinder ttings during this step,
this is normal. Cover the tting with a rag to
prevent spray. (wear safety glasses)
