Assembly Instructions (continued)
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

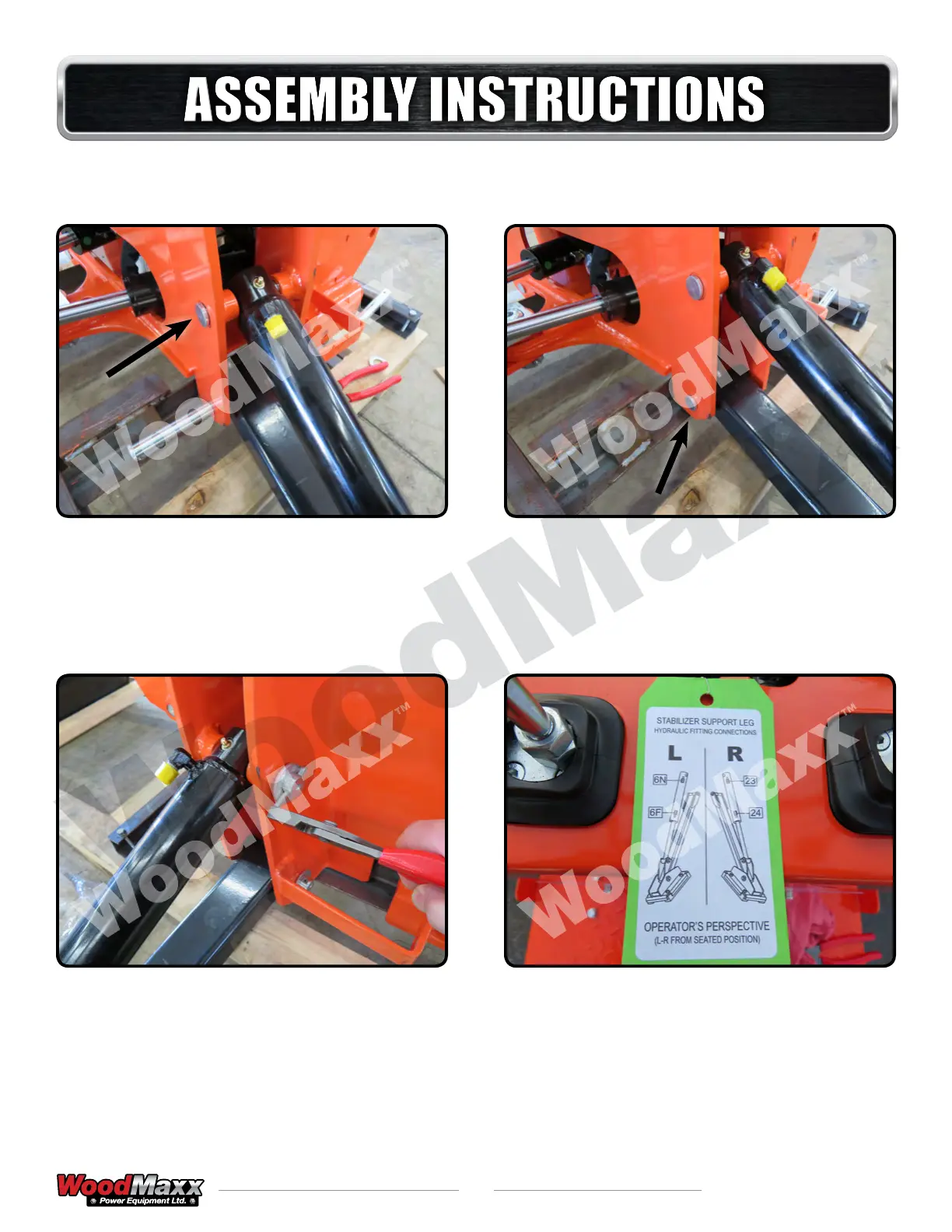

Attach the hydraulic cylinder to the base frame
rst, insert pin as shown.
Attach the support leg to the base frame next,
insert the pin as shown.
Attach the washer and install the cotter pin as
shown, bend the cotter pin using pliers.
Attach the hydraulic hoses from the backhoe
to the cylinders as directed by the tag on the
controls.
