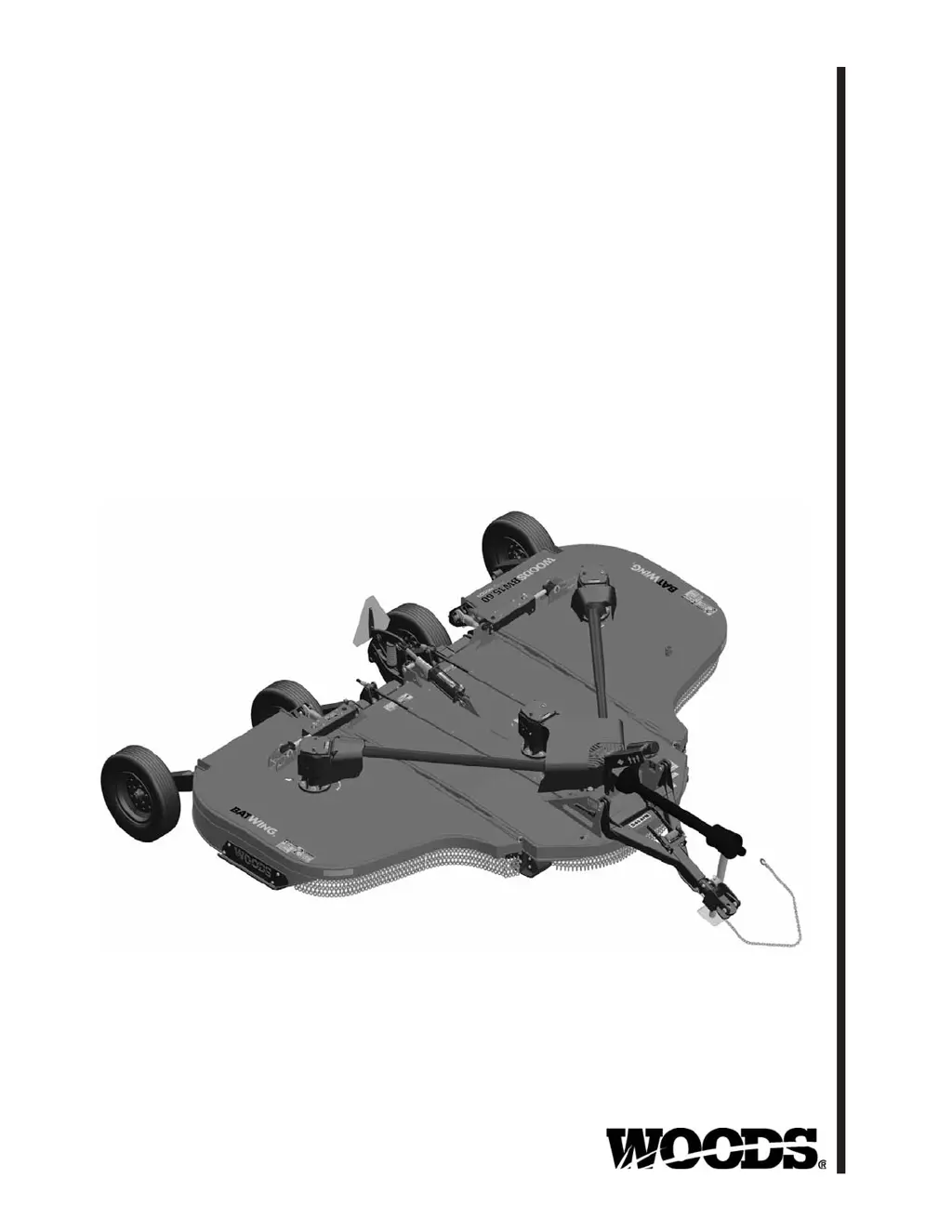

OPER ATOR'S MANUAL

BATWING-

ROTARY CUTTER

MAN1238

(Rev. 12/01/2019)

®

BW15.60

BW15.60Q

BW10.60

BW10.60Q

Table of Contents

Questions and Answers:

M
Monica AdkinsAug 13, 2025
Why Woods BATWING BW15.60 Cutter does not cut?
- L
  linbryanAug 13, 2025
  Your Woods Cutter might not be cutting due to several reasons. The blades could be dull, in which case you should sharpen them. Alternatively, the blades may be worn or broken, requiring replacement in pairs. Ensure the PTO speed is set correctly. If the ground speed is too fast, reduce it. Also, verify the drive shaft connection and check the gearbox for any malfunctions. Repair the gearbox if there's excessive clutch slippage. Lastly, confirm the blade edge is correct for the direction of rotation.
R
Robert PhillipsAug 16, 2025
What to do if Woods BATWING BW15.60 Cutter has streaks or ragged cut?
- P
  Penny BarnettAug 16, 2025
  If your Woods Cutter is leaving streaks or a ragged cut, it could be due to broken or worn blades, which you should replace or sharpen. Also, make sure to level the machine and reduce ground speed. Lower the cutting height, being careful not to let the blades frequently hit the ground. If you're cutting excessive lush and tall vegetation, recut at a 90° angle to the first pass.
M
Michael OdonnellAug 20, 2025
Why Woods BATWING BW15.60 Cutter has excessive clutch slippage?
- J
  Jacob FernandezAug 20, 2025
  Excessive clutch slippage in your Woods Cutter can be caused by a clutch that is out of adjustment, which requires adjusting the clutch. It could also be that the clutch discs are worn and need replacement. Another cause may be blades hitting the ground, so raise the cutting height.
E
Elizabeth BowenAug 25, 2025
Why Woods BATWING BW15.60 has vibration?
- J
  Jennifer HerreraAug 25, 2025
  Vibration in your Woods Cutter can stem from a broken blade, so replace blades in pairs. It may also be caused by bearing failure, so check gearbox shafts for side play. Reset the hitch length if it's incorrect. If it is a universal drive, adjust the pedestal bearing height to be parallel to the ground.
M
Melissa ArroyoAug 27, 2025
How to fix excessive side skid wear on Woods BATWING BW15.60 Cutter?
- M
  Marissa NguyenAug 27, 2025
  If your Woods Cutter is experiencing excessive side skid wear, it's likely because you are running with the skids continuously on the ground. To resolve this, raise the cutting height or adjust.
T
Tracey SmithAug 31, 2025
What to do if Woods BATWING BW15.60 Cutter blades are hitting deck?
- A
  Amanda LeeAug 31, 2025
  If the blades of your Woods Cutter are hitting the deck, it's likely due to bent blades or a bent crossbar. Replace the bent blades or crossbar to resolve this issue.
K
khenrySep 4, 2025
What to do if Woods Cutter unit will not raise?
- T
  Thomas BarberSep 4, 2025
  If your Woods Cutter unit won't raise, it's likely due to low oil. Add hydraulic oil to resolve this issue.
T
Tracy MyersSep 8, 2025
Why Woods Cutter unit doesn’t cut level?
- K
  Kevin SheltonSep 8, 2025
  If your Woods Cutter unit isn’t cutting level, it could be because the wing section cuts lower than the center. Lengthen the turnbuckle connecting the center yoke to the wing wheel yoke. Alternatively, if the wing section cuts higher than the center, shorten the turnbuckle connecting the center yoke to the wing wheel yoke.

Woods BATWING BW15.60 Specifications

General

Brand	Woods
Model	BATWING BW15.60
Category	Cutter
Language	English

Summary

Introduction and Safety Overview

Safety Alert Symbol Definitions

Defines hazard symbols like DANGER, WARNING, CAUTION, and IMPORTANT or NOTICE.

Rotary Cutter Specifications

General Specifications

Details cutting width, height, tractor HP, weight, and other technical parameters.

Comprehensive Safety Rules

Installation, Training, and Preparation Safety

Covers safe hydraulic connection, hardware checks, and operator training.

Transportation and Operation Safety

Safety guidelines for operating, transporting, and handling slopes.

Maintenance and Storage Safety

Procedures for safe maintenance, cleaning, and storage of equipment.

Safety and Instructional Decals

Decal Identification and Placement

Identifies and shows the location of safety and instructional decals on the equipment.

Operation Procedures

Connecting Cutter to Tractor and CV Lift Assist

Steps for attaching the cutter driveline and hydraulic connections, including CV assist.

Cutting Height Adjustment

How to adjust the cutter's cutting height for optimal performance and ground clearance.

Tractor, Cutter, Mowing, and Shredding Operations

Guidance on tractor use, cutter operation, mowing techniques, and shredding.

Transporting and Storage Procedures

Procedures for safe transport, lock-up, and storage of the cutter.

Pre-Operation Checklist

Owner's responsibility checklist of tasks before operating the equipment.

Owner Service and Maintenance

Blocking Method for Safe Service

Essential safety procedure for working underneath the cutter using jackstands.

Lubrication Guide

Details on greasing points, gearbox, and driveline lubrication frequencies.

Blade Maintenance

Instructions for removing, installing, sharpening, and balancing blades.

Slip Clutch Adjustment

How to adjust the slip clutch to protect the gearbox and driveline from damage.

Shielding and Tire Servicing

Procedures for repairing shielding and safely servicing tires.

Troubleshooting Common Issues

Cutting and Performance Problems

Solutions for issues like not cutting, streaks, ragged cuts, or excessive skid wear.

Vibration and Leveling Issues

Addresses causes and solutions for vibration and unit not cutting level.

Dealer Service Procedures

Gearbox Maintenance and Repair

Detailed instructions for gearbox seal replacement and general maintenance.

Splitter Gearbox Repair

Procedures for disassembling, inspecting, and assembling the splitter gearbox.

Crossbar and Universal Joint Repair

Steps for removing, installing, and repairing crossbars and U-joints.

Assembly Instructions

Dealer Set-Up Instructions

Guidelines for dealers to prepare the cutter for customer delivery.

Installing Wheels and Components

Steps for installing wheels, hubs, and optional kits.

Dealer Check Lists

Pre-Delivery and Delivery Checklists

Checklists for dealers to ensure proper setup and customer orientation.

Parts Breakdown

Center Frame and Cylinder Assemblies

Exploded views and part numbers for frame and cylinder components.

Gearbox and Drive Assemblies

Parts lists for wing, center, and splitter gearboxes and drive components.

Wheel, Tire, and Shielding Parts

Components for wheels, tires, hydraulic cylinders, and chain shielding.

Technical Reference Charts

Bolt Torque and Size Charts

Specifications for tightening hardware and identification of bolt sizes.

Abbreviations List

Glossary of common terms and acronyms used in the manual.

Warranty Information

Product Warranty Terms

Details on warranty coverage, limitations, and the claims process.
