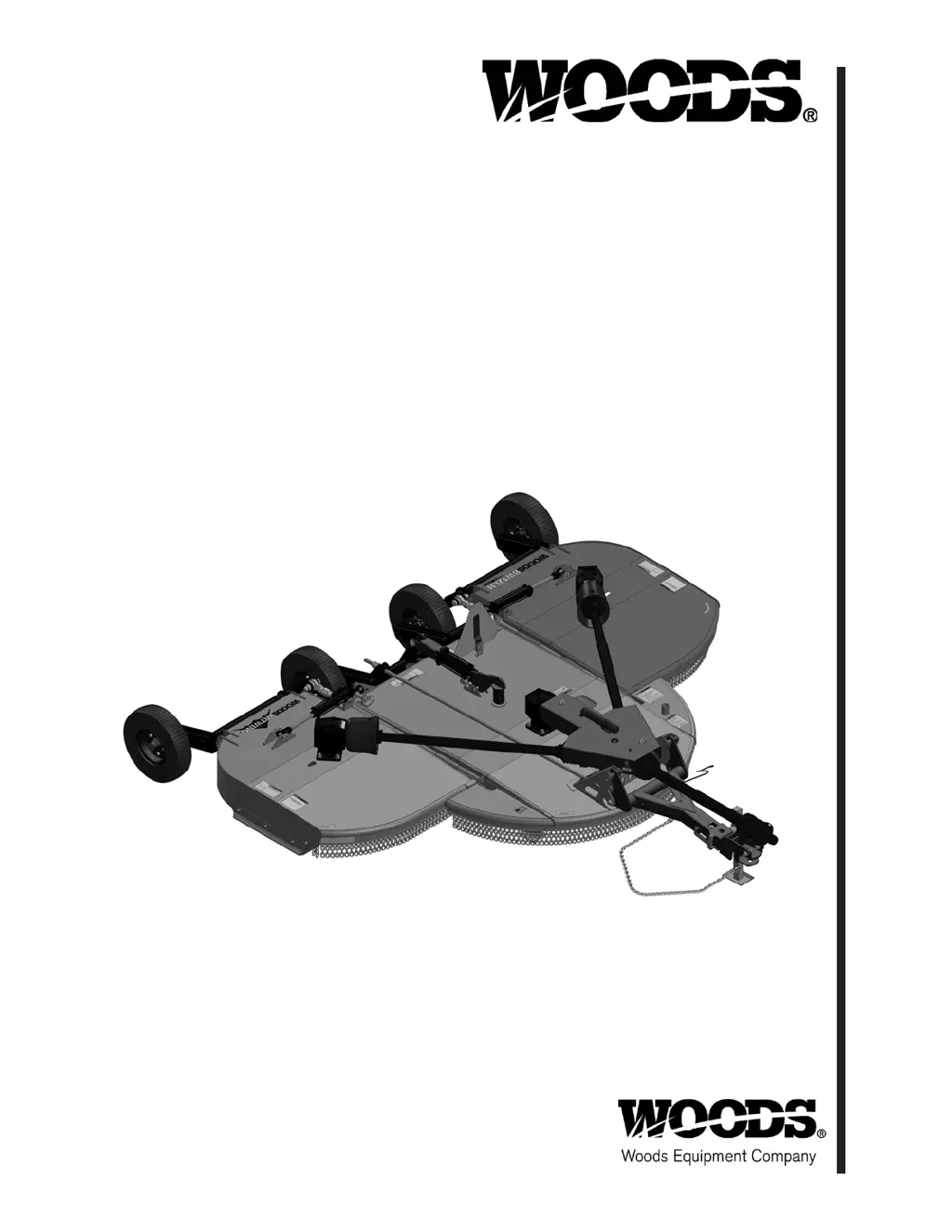

OPERATOR'S MANUAL

BATWING-

ROTARY CUTTER

MAN1126

(Rev. 9/27/2018

®

BW12E

Table of Contents

Questions and Answers:

M
Megan CervantesAug 13, 2025
Why Woods BATWING BW12E does not cut?
- L
  Latasha BennettAug 13, 2025
  Your Woods Cutter might not be cutting due to several reasons: * **Dull blades**: Sharpen them. * **Worn or broken blades**: Replace the blades in pairs. * **Incorrect PTO speed**: Adjust to the rated PTO speed. * **Ground speed too fast**: Reduce your ground speed. * **Drive not functioning**: Check the drive shaft connection. * **Gearbox malfunction**: Inspect the gearbox. * **Excessive clutch slippage**: Adjust the clutch. * **Incorrect blade direction**: Ensure the blade edge is correct for the rotation direction.
M
Melinda TurnerAug 16, 2025
What to do if Woods BATWING BW12E Cutter leaves streaks or ragged cut?
- D
  Dr. Michael Morris MDAug 17, 2025
  If your Woods Cutter is leaving streaks or making ragged cuts, it could be due to: * **Broken or worn blades**: Replace or sharpen the blades. * **Incorrect attitude**: Level the machine. * **Ground speed too fast**: Reduce ground speed. * **Excessive cutting height**: Lower the cutting height, ensuring blades don't hit the ground. * **Excessive lush and tall vegetation**: Recut at a 90° angle to the first pass.
P
Phillip Donovan Jr.Aug 21, 2025
How to fix vibration in Woods Cutter?
- C
  christopherstevensAug 21, 2025
  If your Woods Cutter is vibrating, consider these potential causes: 1. **Broken blade**: Replace the blades in pairs. 2. **Bearing failure**: Check the gearbox shafts for side play. 3. **Hitch length incorrect**: Reset the hitch length. 4. **Universal drive**: Adjust the pedestal bearing height to be parallel to the ground.
A
Amy MaloneAug 25, 2025
What causes excessive clutch slippage in Woods BATWING BW12E Cutter?
- B
  bradleyricardoAug 26, 2025
  Excessive clutch slippage in your Woods Cutter can occur due to: * **Clutch out of adjustment**: Adjust the clutch. * **Worn clutch discs**: Replace the discs if the wear stops are not contacting the opposite plate. * **Blades hitting the ground**: Raise the cutting height.
J
Jamie TaylorAug 28, 2025
Why Woods BATWING BW12E Cutter unit doesn’t cut level?
- S
  stephenhernandezAug 28, 2025
  If your Woods Cutter unit isn’t cutting level, it could be because: * **Wing section cuts lower than center**: Lengthen the turnbuckle connecting the center yoke to the wing wheel yoke. * **Wing section cuts higher than center**: Shorten the turnbuckle connecting the center yoke to the wing wheel yoke.
S
Savannah JohnsonSep 1, 2025
How to prevent excessive side skid wear on Woods Cutter?
- G
  Grace DavisSep 1, 2025
  To prevent excessive side skid wear on your Woods Cutter, if you are running with the skids continuously on the ground, raise the cutting height or adjust the skids.
E
emilyaguirreSep 4, 2025
What to do if Woods Cutter blades are hitting the deck?
- R
  Rebecca CoxSep 4, 2025
  If the blades of your Woods Cutter are hitting the deck, it's likely due to bent blades or a bent crossbar. Replace the bent blades or crossbar.
J
Julie JacksonSep 8, 2025
What to do if Woods Cutter unit will not raise?
- M
  michaelpattersonSep 8, 2025
  If your Woods Cutter unit won't raise, the hydraulic oil level may be low. Add hydraulic oil.

Woods BATWING BW12E Specifications

General

Brand	Woods
Model	BATWING BW12E
Category	Cutter
Language	English

Summary

Specifications

General Information

Safety Rules

Safety & Instructional Decals

Declaration of Conformity

Operation

Connecting Cutter to Tractor

Connect the rotary cutter to the tractor's PTO and hydraulic systems correctly.

Hydraulic Connection

Steps for connecting hydraulic hoses from the cutter to the tractor.

Interference Check

Verify no interference between tractor and cutter components during operation.

Cutting Height Adjustment

Instructions for setting the desired cutting height for the cutter.

Tractor Operation

Guidelines for operating the tractor safely with the attached cutter.

Cutter Operation

Procedures and tips for operating the rotary cutter effectively.

Mowing Tips

Advice and best practices for mowing with the rotary cutter.

Transporting

Safety precautions and procedures for transporting the cutter.

Lock-Up

Securing the cutter's wings and center section for transport.

Storage

Center Section Lock-Up

Securing the center section for transport and storage.

Owner Service

Blocking Method

Procedures for safely blocking the cutter for maintenance or service.

Lubrication

Detailed instructions for lubricating gearbox, driveline, and seasonal maintenance.

Blades

Procedures for removing, installing, sharpening, and handling cutter blades.

Slip Clutch Adjustment

Steps to adjust the slip clutch for gearbox and driveline protection.

Shielding Repair

Instructions for inspecting and repairing protective shielding on the cutter.

Servicing Tires Safely

Safety precautions and procedures for servicing the cutter's tires and wheels.

Cleaning

Procedures for cleaning the cutter after use and before storage.

Troubleshooting

Dealer Service

Seal Replacement

Procedures for replacing seals in the gearbox for leak prevention.

Gearbox Maintenance

General maintenance for the gearbox, including inspection and lubrication.

Gearbox Repair

Comprehensive guide for gearbox repair, disassembly, and reassembly.

Splitter Gearbox Repair

Detailed instructions for repairing the splitter gearbox, including disassembly and assembly.

Crossbar Removal

Steps for safely removing the crossbar from the cutter assembly.

Crossbar Installation

Procedures for installing the crossbar onto the cutter assembly.

Universal Joint Repair

Instructions for repairing the universal joint components, including assembly.

Servicing Tires Safely

Safety precautions and procedures for servicing the cutter's tires and wheels.

Assembly Instructions

Dealer Set-Up Instructions

Instructions for dealers on setting up and delivering the cutter to the customer.

Dealer Check Lists

Pre-Delivery Check List

Checklist for dealers to ensure proper pre-delivery inspection and adjustment.

Delivery Check List

Checklist for dealers to ensure proper customer orientation and safe operation.

Center Frame Assembly

Main Assembly

Wing Assembly

Hose Assembly

Gearbox Assembly

Splitter Gearbox Assembly

Center Deck Drive Assembly

Wing Drive Assembly

5-Bolt Wheel & Tire Assembly

Hydraulic Cylinder Stroke Control Kit

Crossbar Puller (Optional)

Bolt Torque Chart

Bolt Size Chart

Abbreviations

Warranty
