Woods BATWING BW12E - Hose Assembly

42 Parts
MAN1126 (1/9/2015)

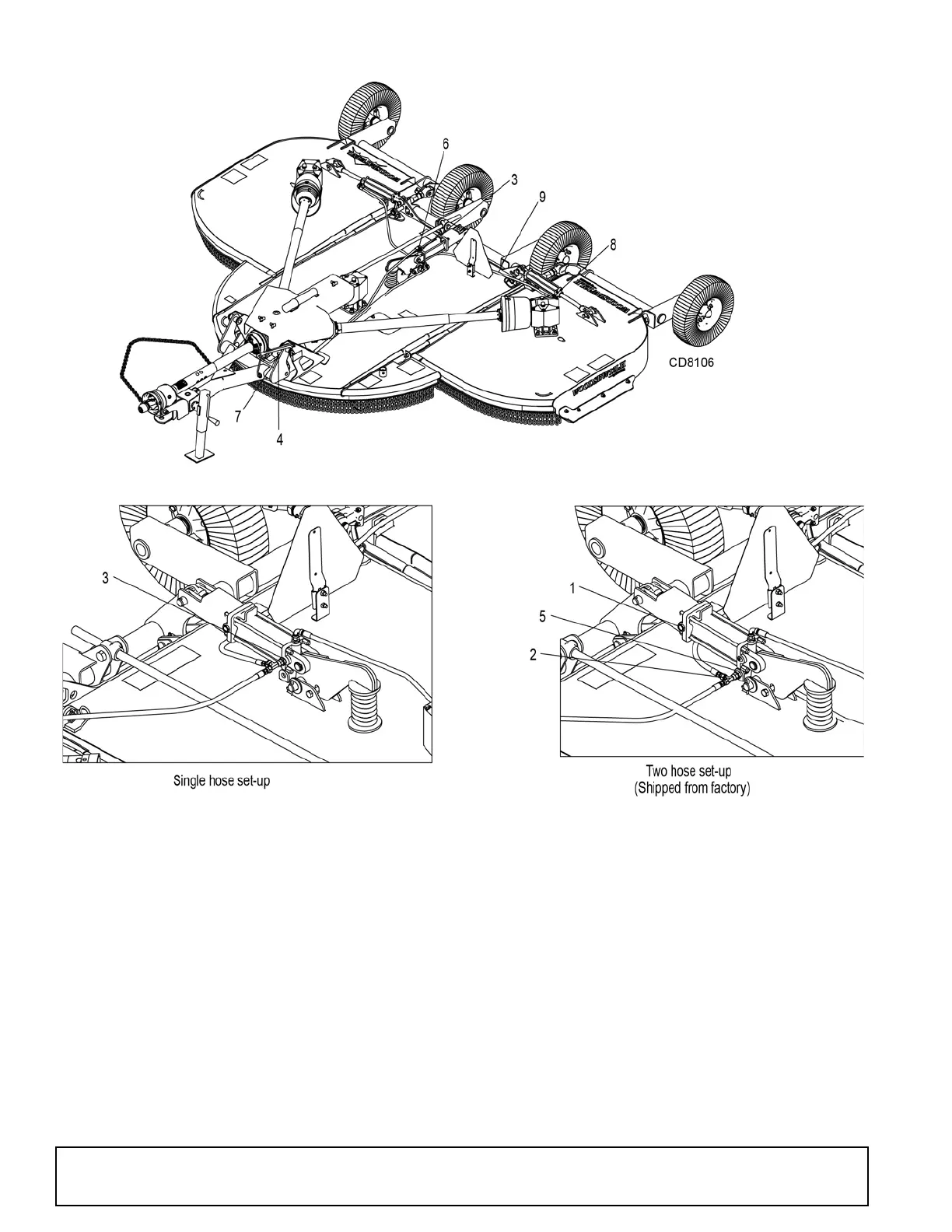

1038122 HOSE ASSEMBLY
REF PART QTY DESCRIPTION
1 11975 1 1/2 NPT Vent plug
2 312017 1 Swivel run tee
3 54315 2 1/2 NPTM 9/16 JICM Adapter
4 1038891 2 1/4NPTF 1/2NPTM Adapter rstr .06
5 1009496 1 9/16 JIC 9/16 JIC Adapter
6 1038123 2 Hose, 1/4 154 1/4NPT 9/16JICF 90
7 66511RP 2 1/2 NPT Male coupler
8 63480 2 3/8 NPTM 9/16 JICM Adapter
9 1014239 2 Hose, 1/4 54 9/16JICF 9/16JICF
HHCS Hex Head Cap Screw
* Standard hardware, obtain locally
