Parts 43
MAN1126 (1/9/2015)

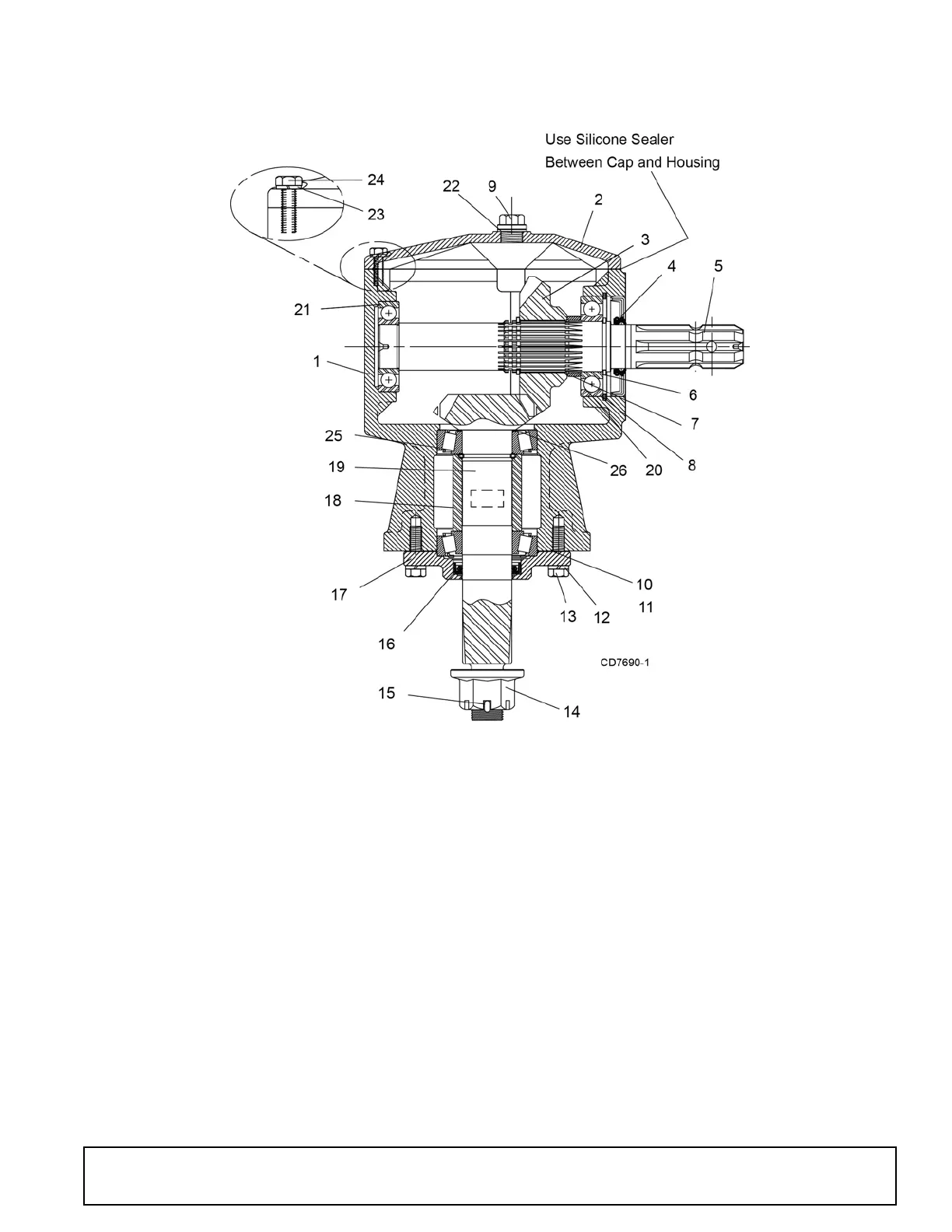

GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
A 1038887 1 Gearbox repair 1:1.69 CW (Right)
A 1038888 1 Gearbox repair 1:1.69 CCW (Left
and Center)
1 ----- 1 Housing
2 1019632 1 Inspection cover
3 ----- 1 22 Tooth gear
4 1018327RP 1 Input seal
5 ----- 1 Input shaft
6 ----- 1 Retaining ring
7 ----- 1 Gear spacer
8 ----- 1 Retaining ring
9 1011780RP 1 Vent plug and washer
REF PART QTY DESCRIPTION
10 1018329 A/R Output gasket (0.30)
11 1018330 A/R Output gasket (0.13)
12 ----- 4 Lock washer
13 ----- 4 M10 x 1.5 x 25 Cap screw
14 1018331 1 1" - 14 Slotted flange nut
15 ----- 1 Cotter pin
16 1018328RP 1 Output seal
17 ----- 1 Output cap
18 ----- 1 Output bearing spacer
19 ----- 1 Output shaft and pinion
20 1018326RP 3 Ball bearing
21 1018325RP 1 Ball bearing
22 ----- 2 Sealing washer w/plug
23 ----- 6 Lock washer
24 ----- 6 M8 x 1.5 x 25 Cap screw
25 57478 2 Bearing cup and cone
26 1032963 1 Shim Kit
27 ----- 1 Output Bearing Spacer
To Next Page
